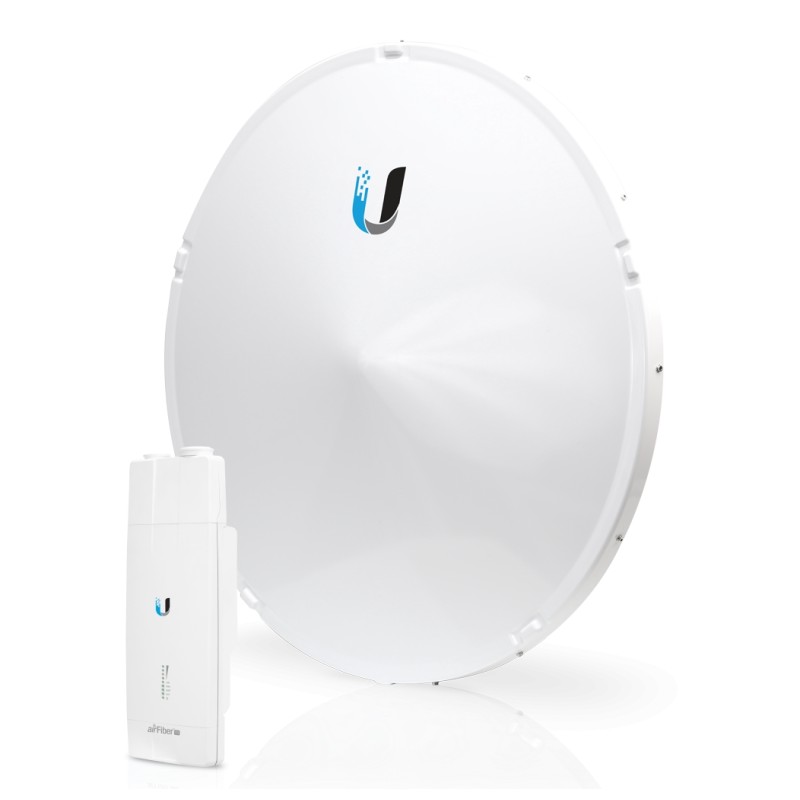

Ubiquiti AirFiber, 11GHz AF11-Complete-HB
Ubiquiti AirFiber, 11GHz AF11-Complete-HB
Ubiquiti AirFiber, 11GHz AF11-Complete-HB
Modular airFiber radio system designed for the 11 GHz license frequency market, moving away from the 5 GHz band.

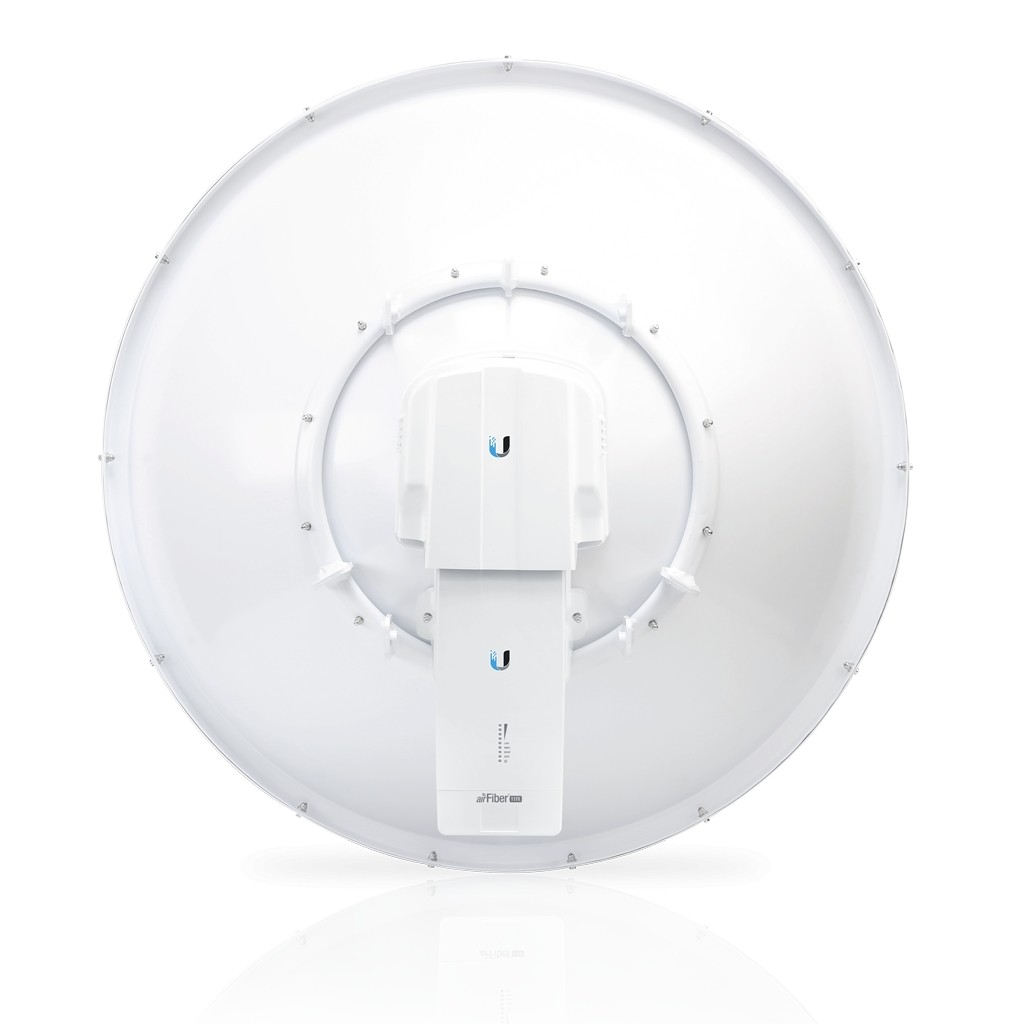

High-band point-to-point radio with parabolic antenna
11 GHz, over 300 km link range
1.2+ Gbit/s throughput
Different RX and TX frequencies
Technical specifications

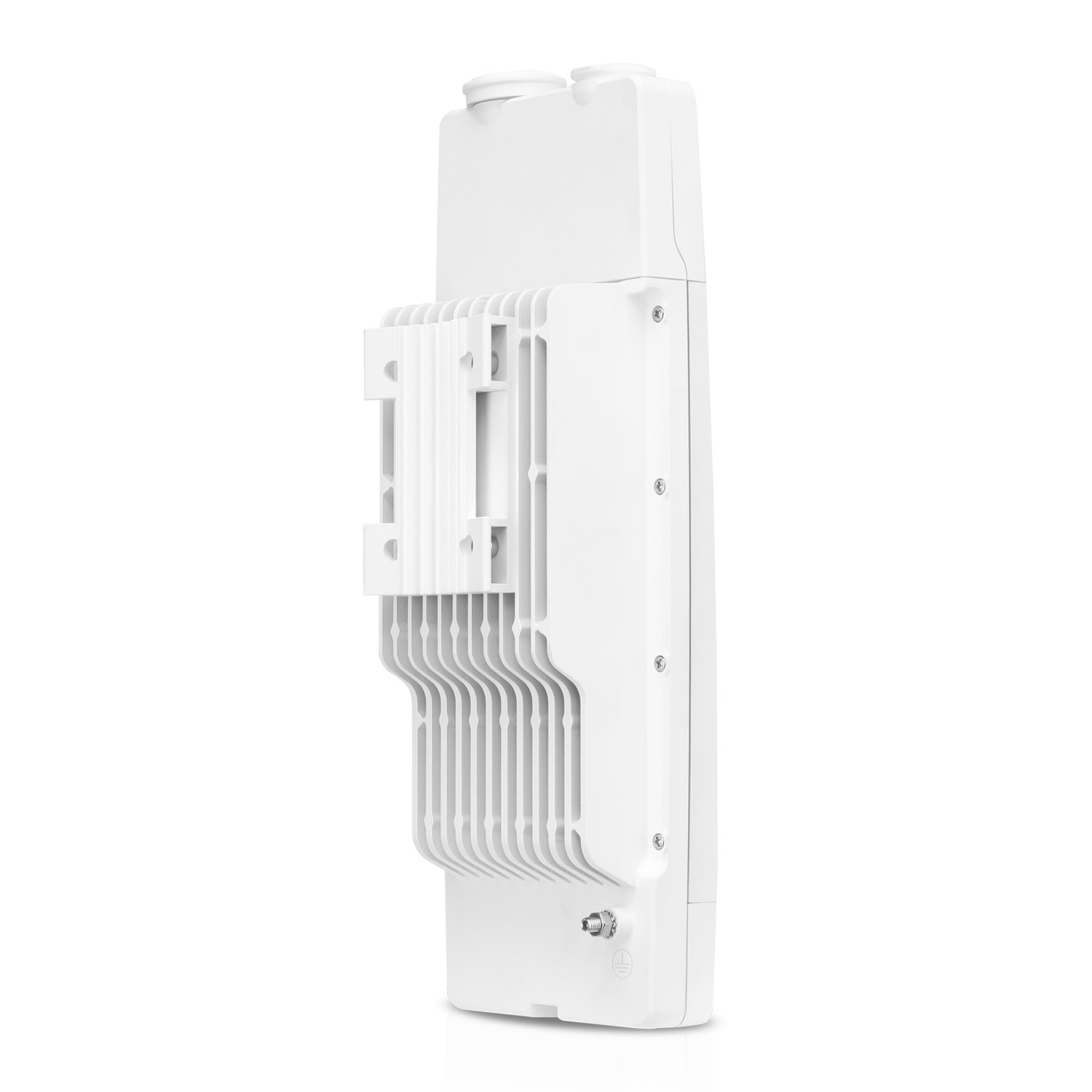

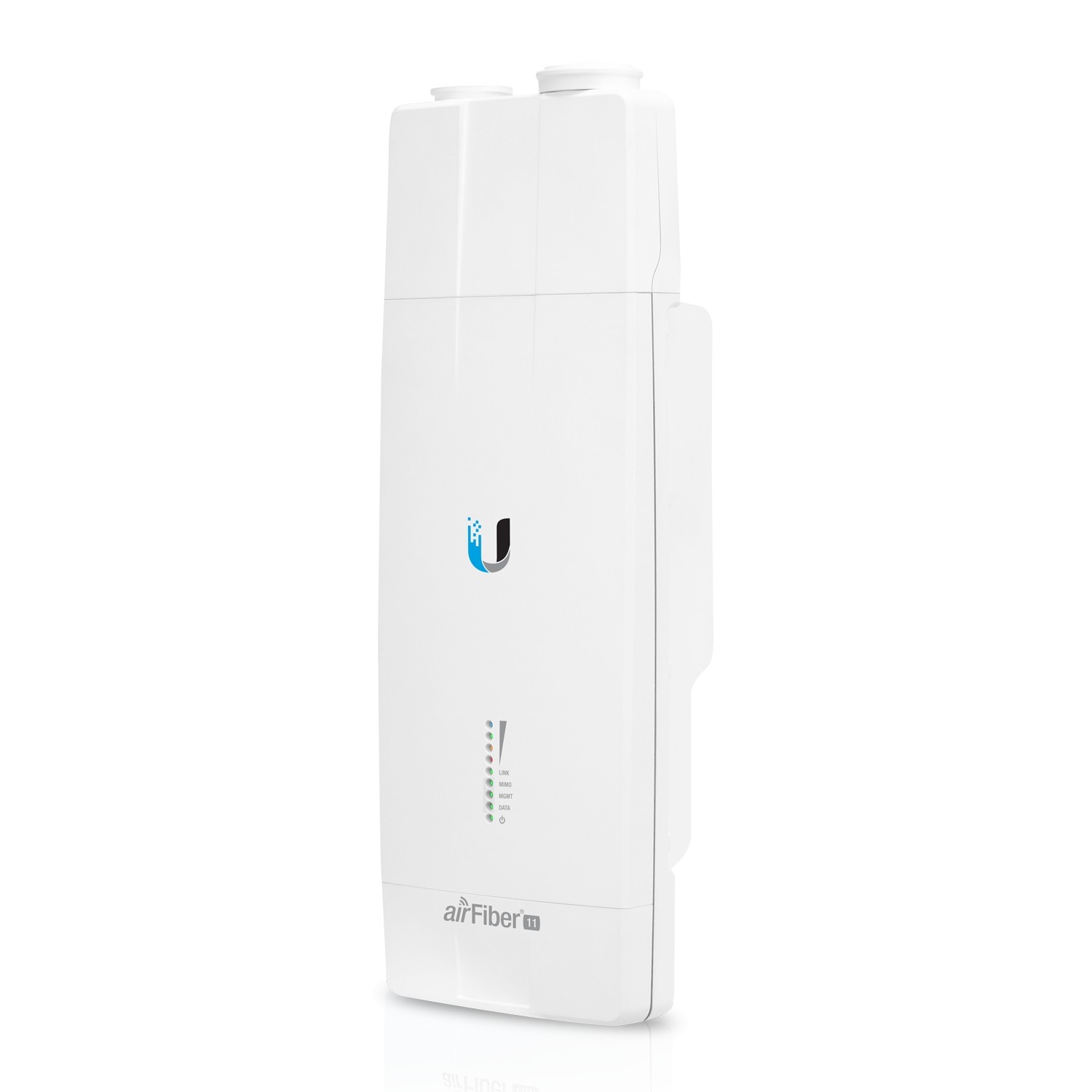

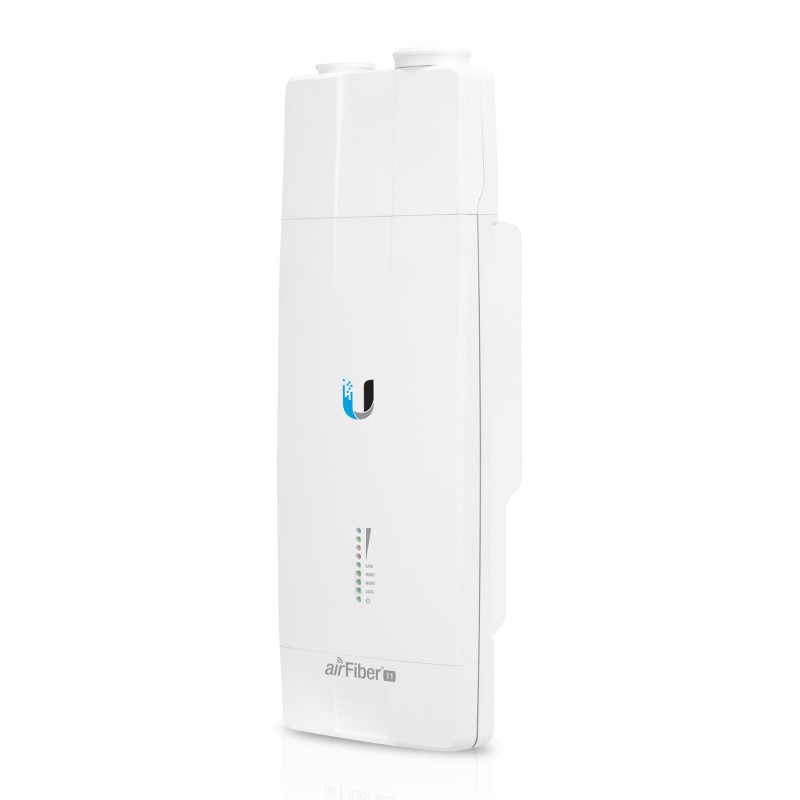

| airFiber AF-11 | |
|---|---|
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39") |
| Weight | 2.26 kg (5 pounds) |
| Mounting | Compatible with AF-11G35 mount |
| hardware | |
| Network interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE (pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)) DC power supply block |
| Power supply | 50 V DC, 1.2 A PoE Gigabit adapter (included in the scope of delivery) |
| Supported voltage range | 38-56 V DC |
| HF connections | (4) SMA weatherproof, two per chain: TX 0, RX 0 (chain 0) and TX 1, RX 1 (chain 1) (2) N-type waterproof, one per duplexer |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Certifications | CE, FCC, IC |
| software | |

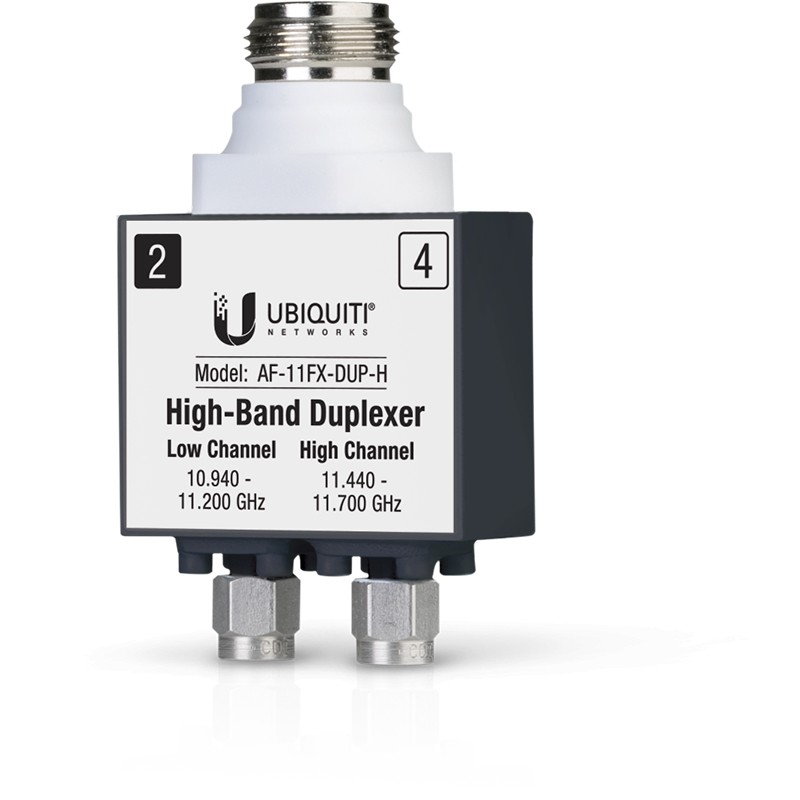

| Modes | SISO/MIMO* *(1) high-band duplexer for SISO mode is pre-installed in the scope of delivery. A second duplexer is available for MIMO mode, model AF-11-DUP-H. |
| System | |
| Max. Throughput | 1.2+ Gbit/s |
| Max. Range | 300+ km |
| Encryption | 128-bit AES |
| RF | |
| Operating frequency* | 10.7-11.7 GHz *Depending on regional regulations. |
| Max. conducted transmission power* | 30 dBm *Depending on regional regulations. |
| Frequency accuracy | ± 1 ppm |
| Channel bandwidth* | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable** Programmable uplink and downlink duty cycles * For region-specific details, refer to the "Compliance" chapter of the airFiber AF-11FX User Manual Guide at ui.com/download/airfiber **Channel widths may vary depending on country/regional regulations. |
| airFiber AF-11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1") |
| Weight | Without bracket: 7.14 kg (15.74 lb) With bracket: 11.85 kg (26.12 lb) |
| Wind load | 1538 N at 200 km/h (346 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Mount pole |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL beamwidth | 2,5° |
| VPOL beamwidth | 2,5° |
| Maximum VSWR | 2:1 |
| Polarization | Standard: H/V After rotation of the OMT: ± 45° |
| Cross-pole isolation | 35 dB |
| Pattern regulation | ETSI 302 217-4-2, Class 3, FCC Cat B |
