Integrated advanced 5 GHz filtering performance
Over 900 Mbps throughput*
Capacity for over 100 clients
Dedicated spectral analysis radio
Integrated GPS synchronization
Notice. Only compatible with LTU devices.
*FW version 2.3.0 and higher.
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89 inches) |
| Weight | 468 g (1.03 pounds) |
| Housing materials | Die-cast aluminum, polycarbonate |
| Mounting materials | Metal, polycarbonate |
| Mounting | Integrated mast mount (kit included) GPS mast mount (kit included) Rocket mount compatible |
| Weatherproof | IP67 RATED |
| Hardware | |

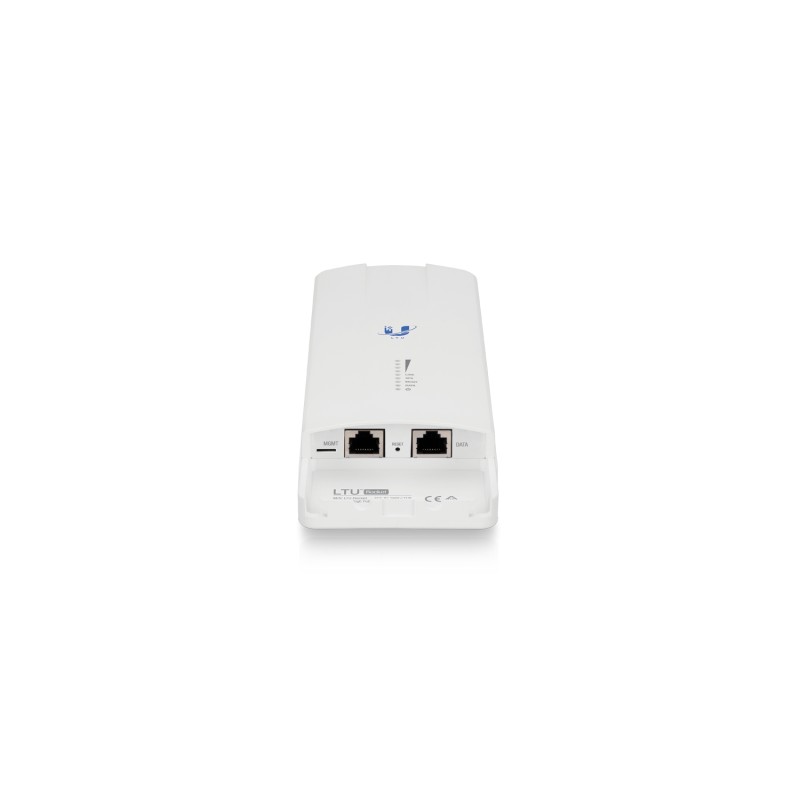

| Network interface | (2) GbE RJ45 ports |
| Power method | Dual passive PoE |
| Power supply | 24 V, 1 A PoE Gigabit adapter (included) |
| Supported voltage range | 18-54 V direct current |
| Max. Power consumption | 25W |

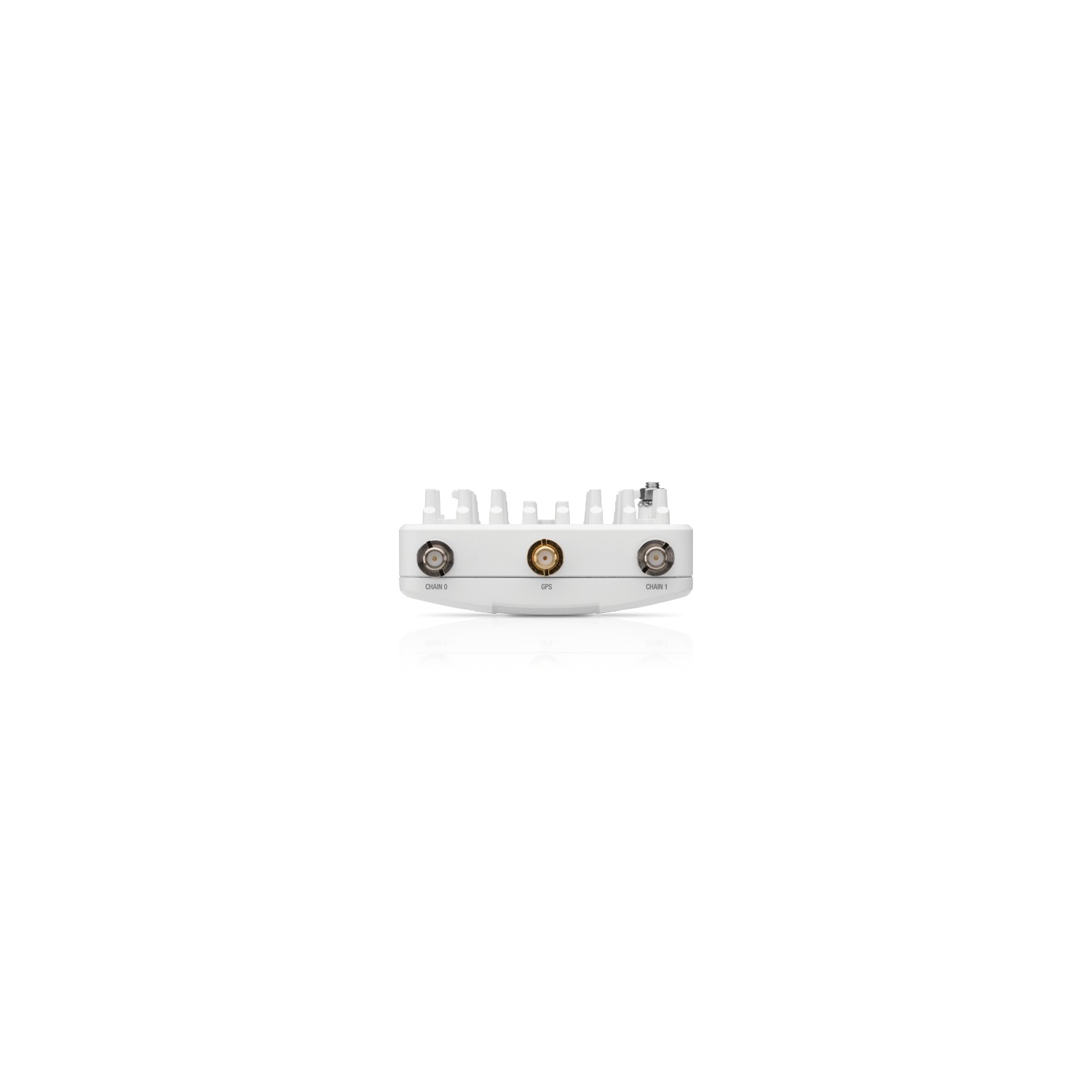

| HF connections | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
| GPS WEATHERPROOF | Yes |
| GPS antenna | External magnetic base |
| Button | Factory reset |
| Operating temperature | -40° to 55° C (-40° to 131° F) |
| Certifications | FCC |
| software | |
| Mode | PtMP base station radio |
| Services | SNMP, SSH, dynamic DNS, web server, remote protocol, ping watchdog |
| Utilities | airView®, speed test, alignment, detection, ping, traceroute, cable test, constellation |
| Automatic distance adjustment | Yes |
| Automatic power adjustment | Yes |
| Security | Yes |
| Static reporting | Yes |
| Management interface | Bluetooth management for easy setup via the WEB user interface of the UISP app |
| Minimum requirements for the software | Any modern iOS™ or Android™ based smartphone with web browser |
| System | |
| Maximum throughput | 900+ Mbit/s* *FW version 2.3.0 and higher. |
| Packets per second | 2+ million |
| Supported clients count | 100+ |
| Maximum range | 100+ km* * Throughput and range values may vary depending on environmental conditions. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 4800 - 6200 MHz *Depending on the regulatory region. |
| Max. conducted transmission power | 29 dBm |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* selectable Programmable uplink and downlink duty cycles *FW version 2.3.0 and higher. |
| Management radio | 2400 - 2483.5 MHz |
