5 GHz, 25+ km link range
Over 900 Mbps throughput*
Dedicated spectral analysis radio

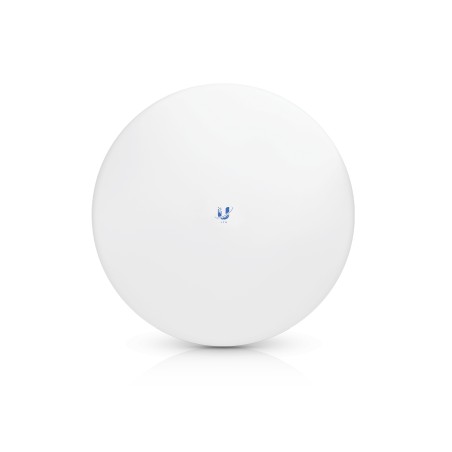

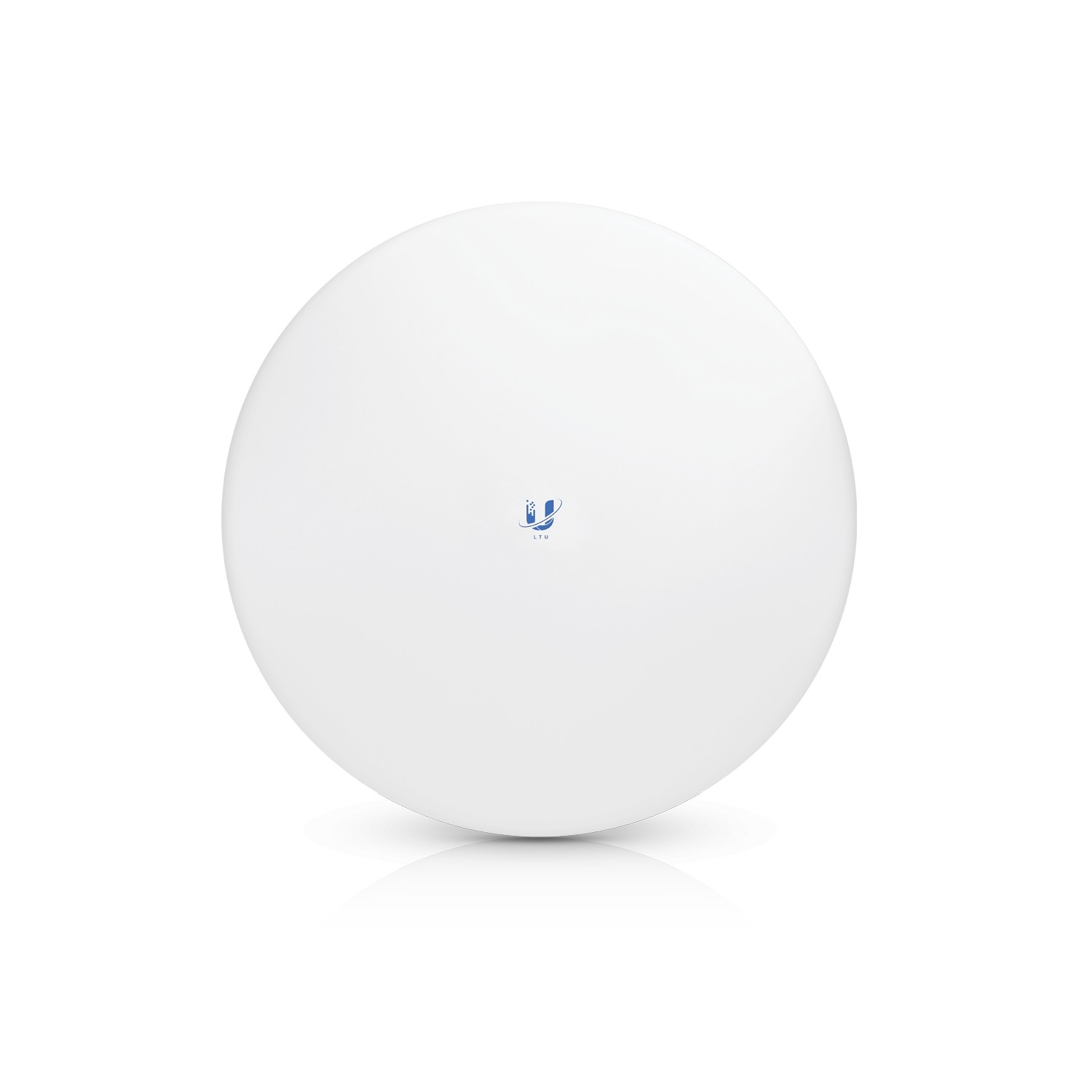

Integrated radome
Note. Only compatible with LTU devices.
*FW version 2.3.0 and higher.
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86 inches) |
| Weight | 1.3 kg (2.87 pounds) |
| Housing material | UV-stabilized polycarbonate |

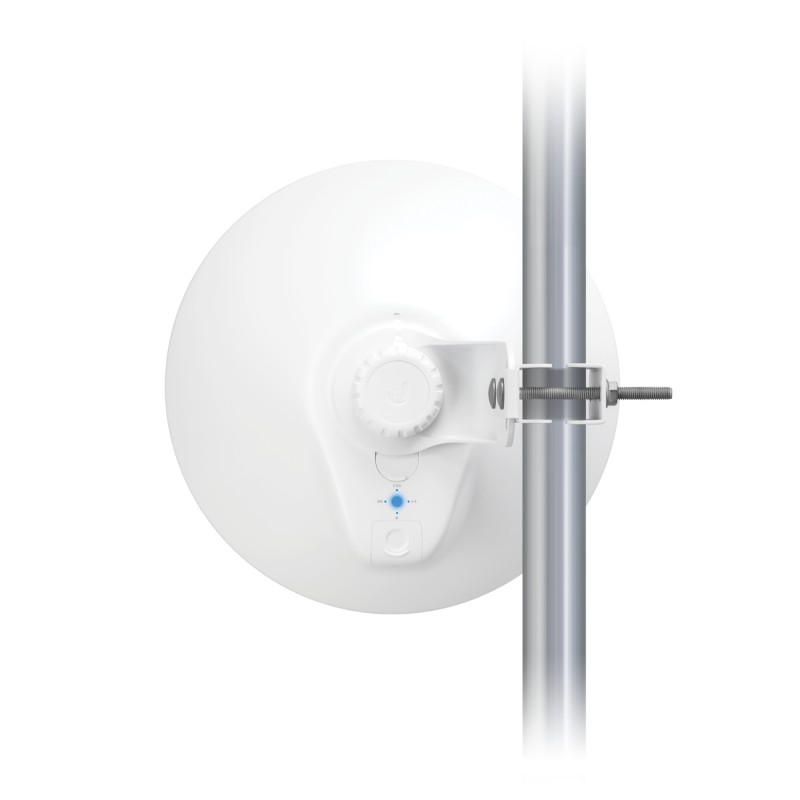

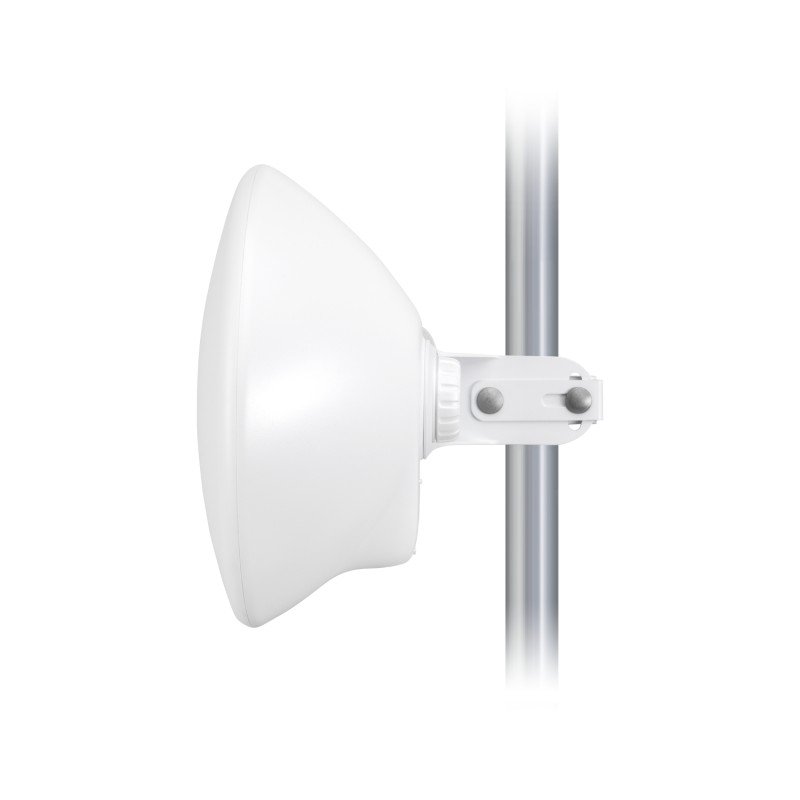

| Mounting | Pole mount (kit included) |
| Wind load | 150 N at 200 km/h (33.72 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| hardware | |

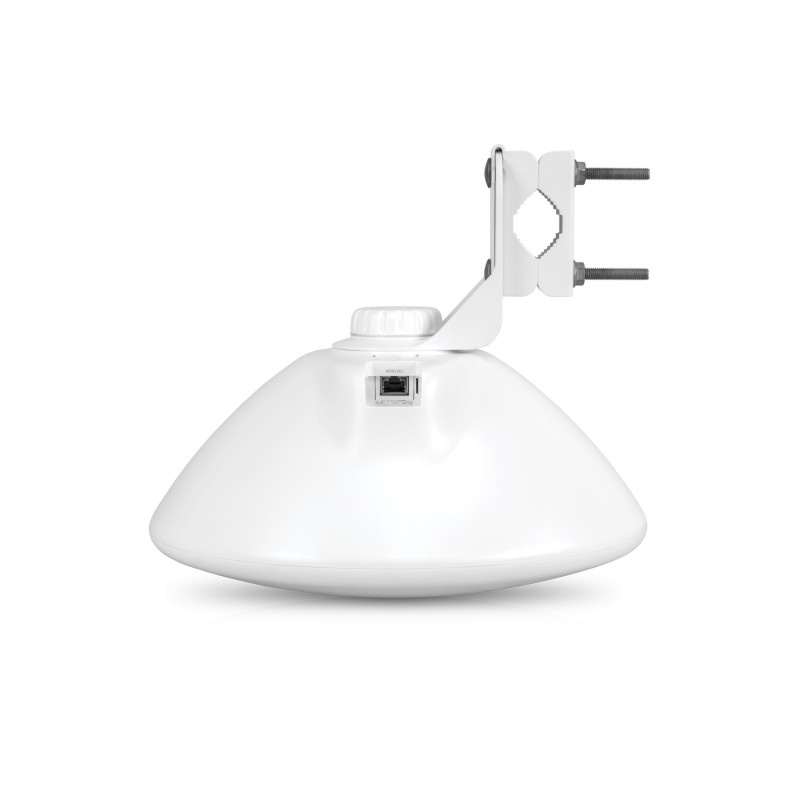

| Network interface | (1) GbE RJ45 port |
| Power method | Passive 24 V PoE (pairs 4, 5+ 7, 8-) |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 22-26 V direct current |
| Max. Power consumption | 9W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 10 to 90 % non-condensing |
| Certifications | CE, FCC, IC |
| software | |
| Modes | PtMP CPE, PtP* *Firmware of series 1.5.1 and higher 1.5.x. |
| Services | SNMP, SSH, dynamic DNS, web server, remote protocol, ping watchdog |
| Utility programs | airView®, speed test, alignment, detection, ping, traceroute, cable test, constellation |
| Automatic distance adjustment | Yes |
| Automatic power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is only available in PtMP CPE mode. |
| Security mode | Yes |
| Static reporting | Yes |
| Management interface | Bluetooth management for easy setup via the WEB user interface of the UISP app |
| Minimum requirements for the software | Any modern iOS™ or Android™ based smartphone with web browser |
| System | |
| Maximum throughput | 900+ Mbit/s* *FW version 2.3.0 and higher. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 EU Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz 5150 - 5875 MHz 2400 - 2483.5 MHz 4800 - 6200 MHz *Depending on the regulatory region. |
| Max. conducted transmission power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and higher. |
| Antenna gain | 24 dBi |
| Beam width | 14° |
| Side lobe level | -10 dB |
| Ratio from front to rear | 27 dB |
