Integrated 5 GHz antenna, range over 10 km
Over 900 Mbit/s throughput*
Dedicated spectral analysis radio
Notice. Only compatible with LTU devices.
*FW version 2.3.0and higher
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 153 x 84 x 39.5 mm (6.02 x 3.31 x 1.56") |
| Weight | 250 g (8.82 ounces) |
| Housing material | UV-stabilized polycarbonate |
| Mounting | Pole mount, wall mount (kit included) |
| Wind load | 20 N at 200 km/h (4.5 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | 24V passive PoE (pairs 4, 5+ 7, 8-) |

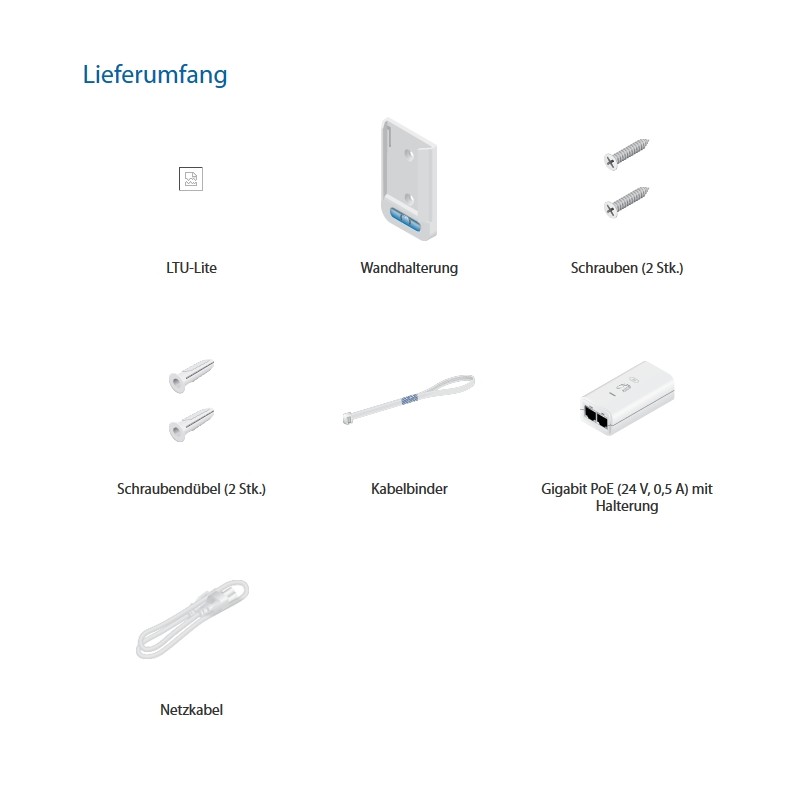

| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 22-26 V direct current |
| Max. Power consumption | 8,5 W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Operating temperature | -40 to 60 °C (-40 to 140 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| software | |
| Modes | PtMP CPE, PtP* *Firmware of series 1.5.1 and higher 1.5.x. |
| Services | SNMP, SSH, dynamic DNS, web server, remote protocol, ping watchdog |
| Utility programs | airView®, speed test, alignment, detection, ping, traceroute, cable test, constellation |
| Automatic distance adjustment | Yes |
| Automatic power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is only available in PtMP CPE mode. |
| Security mode | Yes |
| Static reporting | Yes |
| Management interface | Bluetooth management for easy setup via the WEB user interface of the UISP app |
| Minimum requirements for the software | Any modern iOS™ or Android™ based smartphone with web browser |
| System | |
| Maximum throughput | 900+ Mbit/s* *FW version 2.3.0 and higher. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 EU Worldwide | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz 2400 - 2483.5 MHz 5150 - 5875 MHz 2400 - 2483.5 MHz 4800 - 6200 MHz *Depending on the regulatory region. |
| Max. conducted transmission power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and higher. |
| Antenna gain | 13 dBi |
| Cross-pole isolation | 20 dB |
| Beam width | HPOL/VPOL/Elevation: 45° |
| Polarization | Dual linear |
