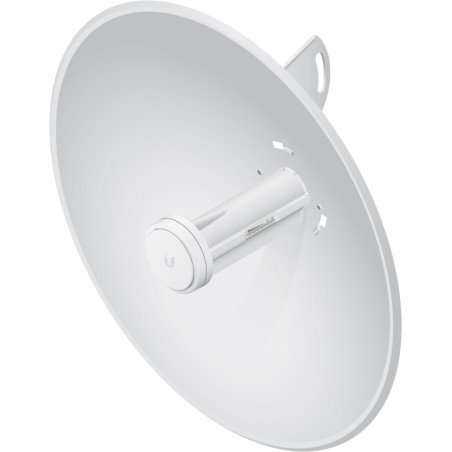

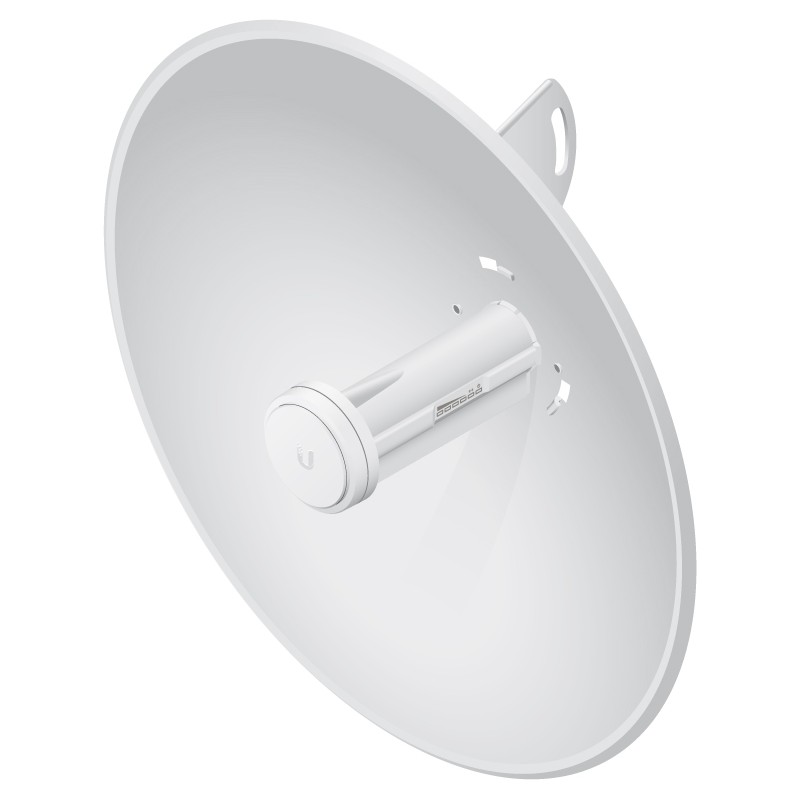

Ubiquiti PowerBeam M2 400
Ubiquiti PowerBeam M2 400
Ubiquiti PowerBeam M2 400
2.4 GHz, 18 dBi bridge with 150+ Mbit/s throughput.
2.4 GHz, 20+ km connection range
150+ Mbit/s throughput
Improved mounting
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 289 mm (16.54 x 16.54 x 11.38") |
| Weight | 1.8 kg (4 pounds) |
| Housing material | UV-stabilized plastic |
| Mounting | Pole mounting kit (included) |
| Wind load | 278.4 N at 120 km/h (63 lbf at 75 mph) |
| Wind survivability | 120 km/h (75 mph) |
| hardware | |
| Network interface | (1) 10/100 MbE port |
| Power supply | 24 V, 0.5 A PoE |
| Max. Power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software customizable to match user-defined RSSI values |
| RoHS compliance | Yes |
| Salt spray test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| system | |
| Gain | 18 dBi |
| Operating frequency | 2405-2475 MHz |
| Max. VSWR | 1,5:1 |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
