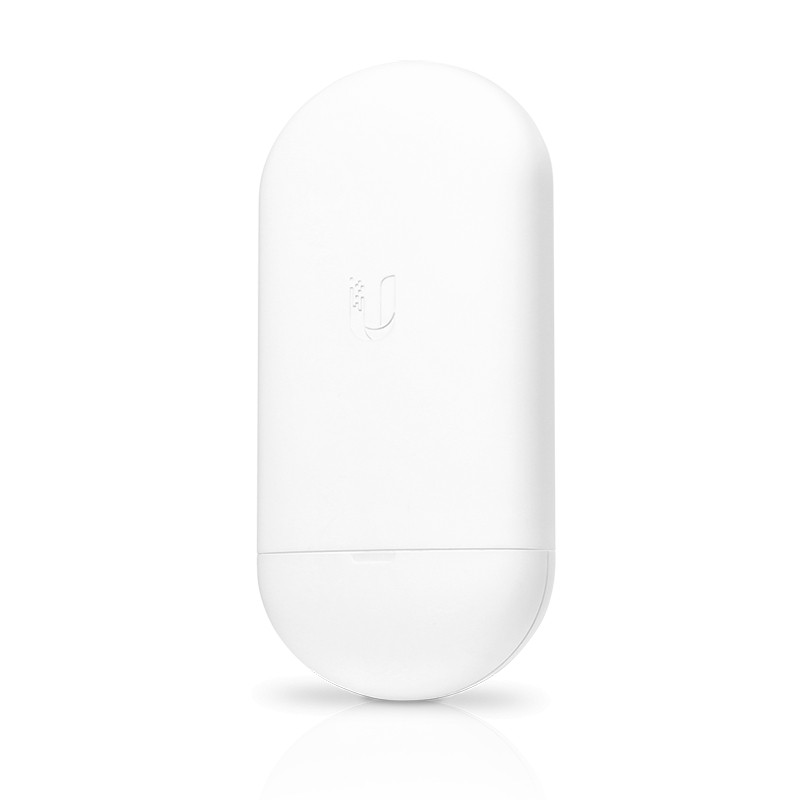

Ubiquiti airMAX NanoStation 5AC Lok
Ubiquiti airMAX NanoStation 5AC Lok
Ubiquiti airMAX NanoStation 5AC Lok
Compact, UISP-capable WLAN radio in the classic NanoStation design and an updated airMAX AC chipset.
5 GHz, 10+ km connection range
450+ Mbps throughput
Special spectral analysis radio
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33") |
| Weight | 0.18 kg (6.35 ounces) |
| Housing material | UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (pairs 4, 5+ 7, 8 return) |
| Power supply | 24 V, 0.3 A Gigabit PoE supply* *PoE adapter not included. |
| Supported voltage range | 24V ±10% |
| Max. Power consumption | 7W |
| LEDs | Power, Ethernet, (4) signal strength |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| system | |
| Gain | 13 dBi |
| Channel bandwidths | 10/20/30/40/50/60/80 MHz |
| Cross-pole isolation | 20 dB min. |
| Max. VSWR | 1,8:1 |
| Beam width | 45° (H-pole) / 45° (V-pole) / 45° (elevation) |
| Polarization | Dual linear |
| Operating frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA/California | 2412 - 2462 MHz |
Details about Ubiquiti airMAX NanoStation 5AC Lok
Manufacurer:
Loco5AC-5
Weight:
1.408000
Storage:
Zentrallager
