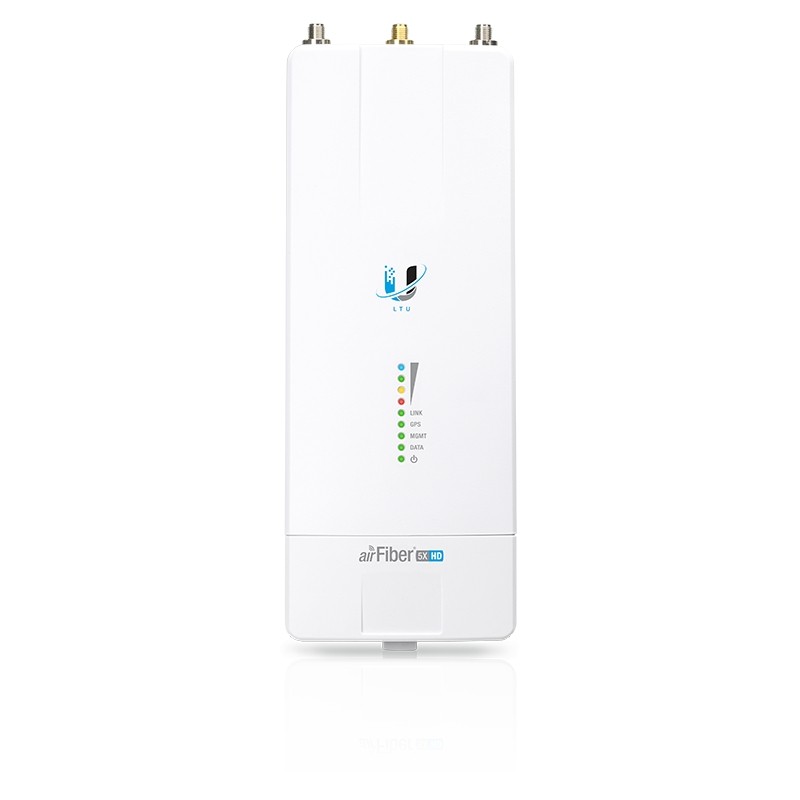

True spectrally efficient, noise-resistant PTP technology with more than 1 Gbit/s, specially developed for WISPs.
5 GHz, over 100 km connection range
1000+ Mbit/s throughput
Dedicated spectral analysis radio
Integrated GPS synchronization
2+ Mpps processing
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
| Weight | 0.35 kg (0.77 pounds) |

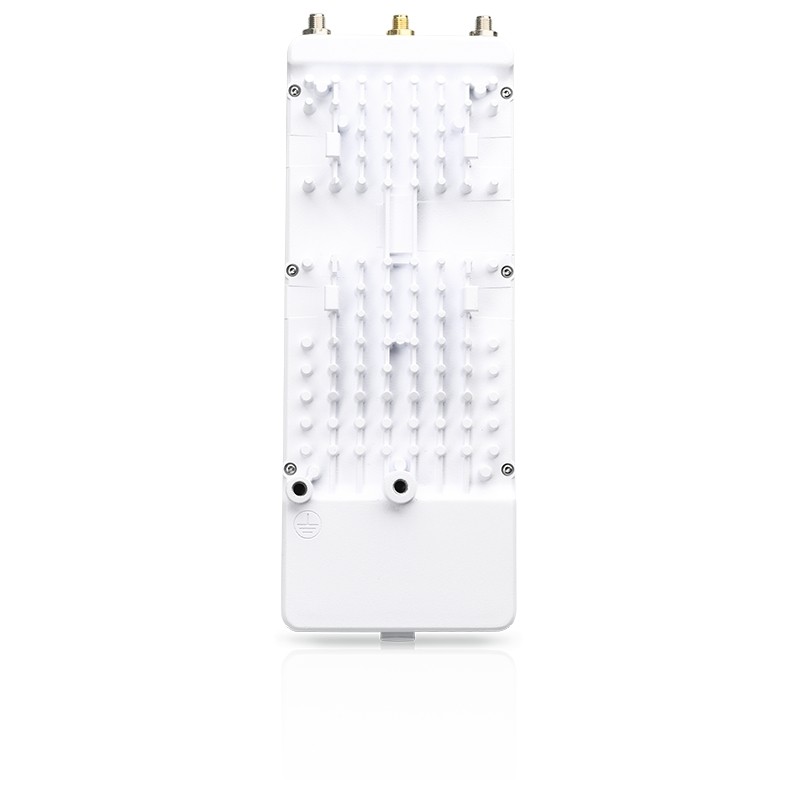

| Mounting | airFiber X mount (compatible with rocket mount) GPS mast mount (included) |
| Weatherproof | IP67* *After installation of IP67 upgrade kit (included). |
| Hardware | |

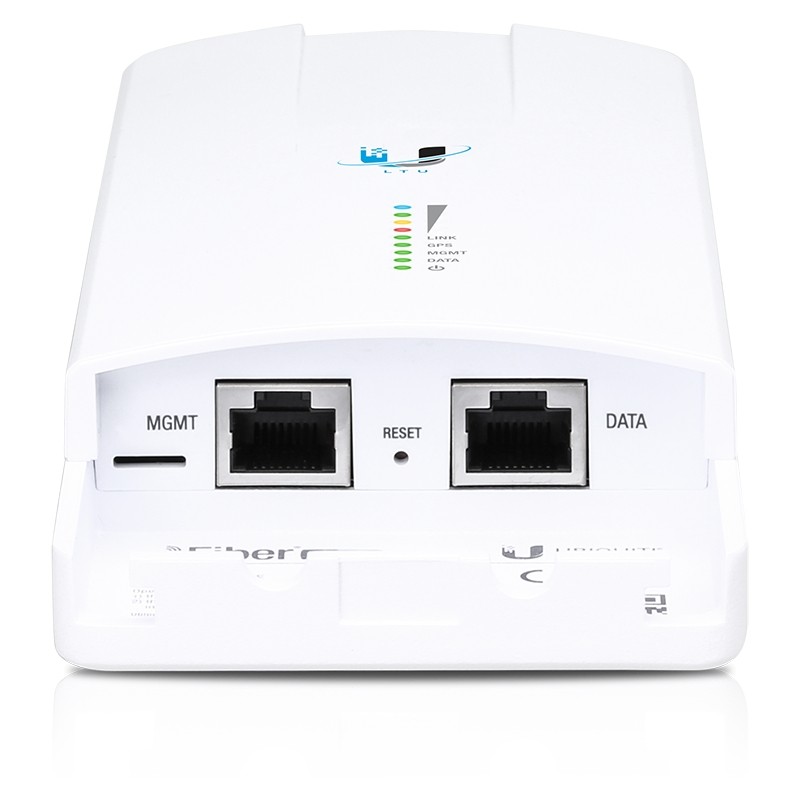

| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE (pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-)) |
| Power supply | 24 V, 1 A PoE Gigabit adapter (included in the scope of delivery) |
| Supported voltage range | 18-54 V direct current |
| Max. Power consumption | 12W |
| GPS antenna | External magnetic stand |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Certifications | CE, FCC, IC |
| software | |
| Modes | PtP master/slave |
| Max. Throughput | 1+ Gbit/s |
| Max. Range* | 100+ km *Throughput and range values may vary depending on environmental conditions. |
| Encryption | AES-256 |
| RF | |
| Max. Transmission power* | 29 dBm *Depending on regional regulations. |
| Frequency accuracy | ± 2.5 ppm without GPS synchronization ± 0.2 ppm with GPS synchronization |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz selectable programmable uplink and downlink duty cycles |
| Operating frequency (MHz) | |
| Worldwide | 4800 - 6200 MHz* *Depending on regional regulations. |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
