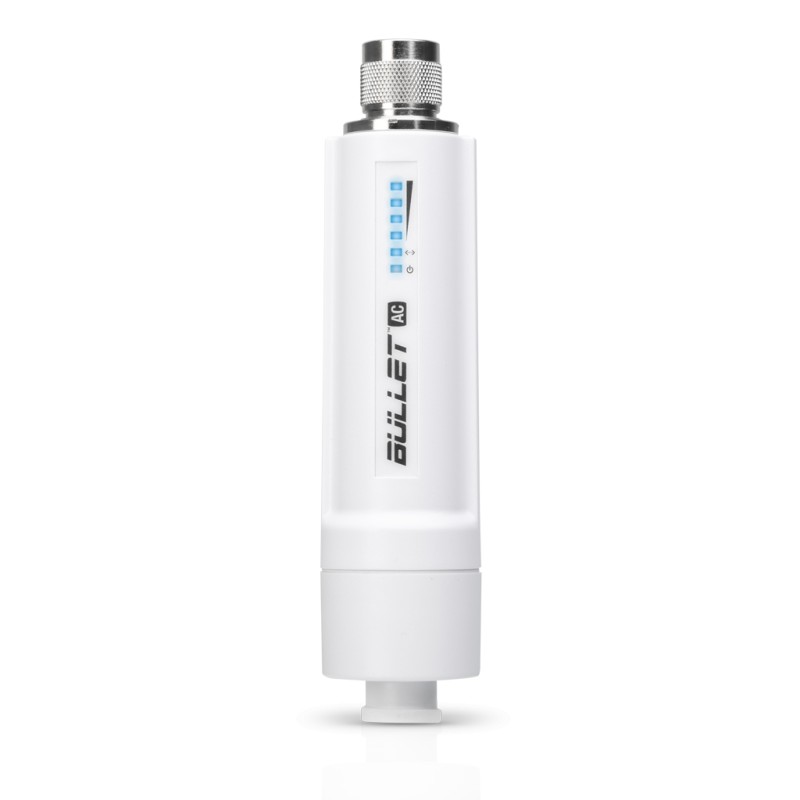

Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC
Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC
Ubiquiti Bullet AC, Dual-Band, AC, B-DB-AC
Portable dual-band WLAN radio with Gigabit PoE and compatible with the UISP application.
Covers both the 2.4 and 5 GHz bands
300+ Mbps throughput*
Plug-and-play integration with airMAX antennas
*5 GHz frequency band only.
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 190 x 46 mm (7.48 x 1.81") |
| Weight | 116 g (4.09 ounces) |
| Case material | polycarbonate |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | 24V passive PoE (pairs 4, 5+ 7, 8 return) |
| Power supply | 24 V DC, 0.3 A (minimum) |
| Max. Power consumption | 7W |
| Output power | 22 dBm |
| Throughput 2.4 GHz 5 GHz | 160+ Mbit/s 300+ Mbit/s |
| ESD/EMP protection | Air/contact ± 24 kV |

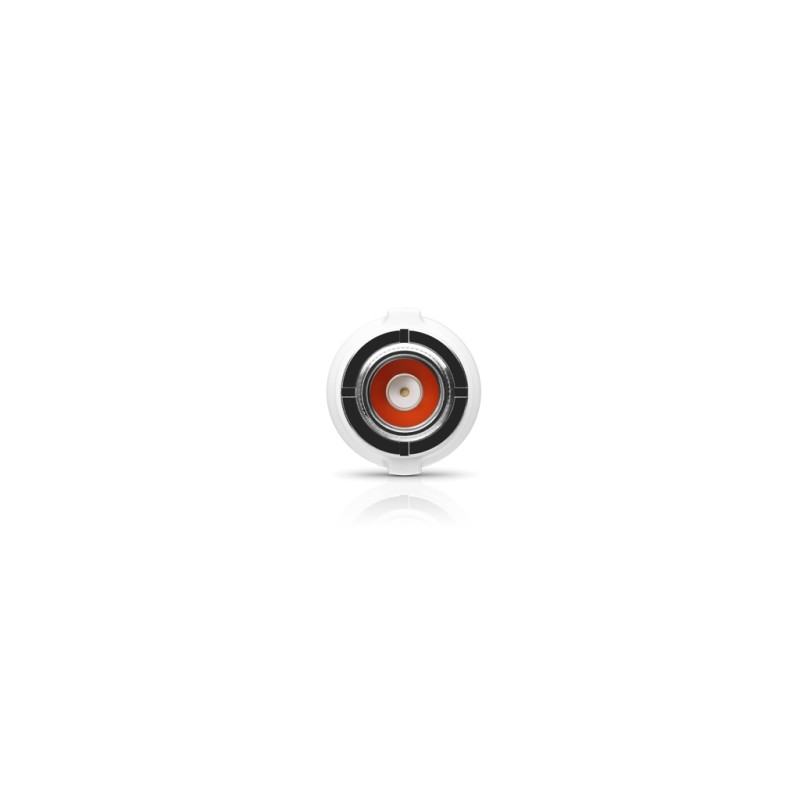

| Antenna connection | N-type connector |
| LEDs | Power, Ethernet, (4) Signal strength |
| Shock and vibration | ETSI300-019-1.4 |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| Operating frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 2400 - 2483.5 MHz 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
| Worldwide | 2400 - 2483.5 MHz 5150 - 5875 MHz |
