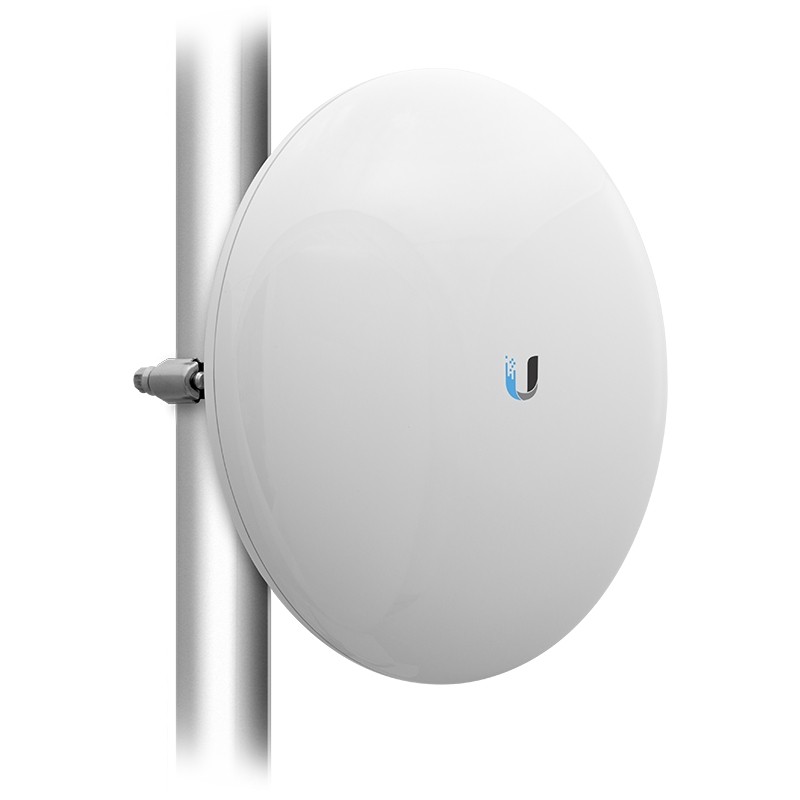

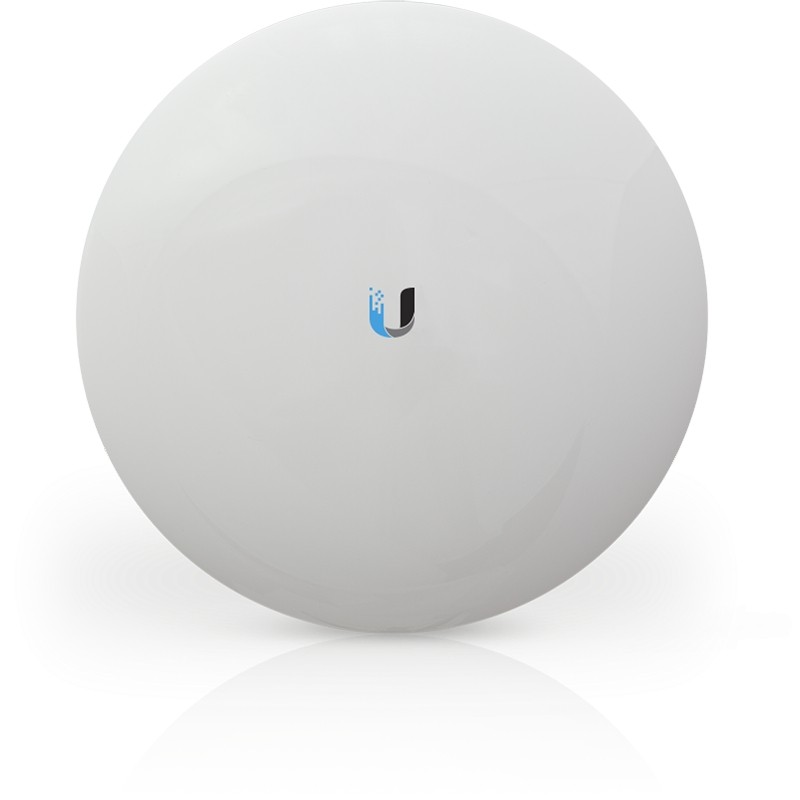

Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Compact, UISP-capable 5 GHz WLAN bridge with improved surge protection and optimized radio and antenna.
5 GHz, 10+ km connection range
450+ Mbps throughput
Easy installation
Dedicated spectral analysis radio
Dedicated WLAN management radio
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") |
| Weight | 530 g (1.17 pounds) |
| Housing material | UV-stabilized plastic |

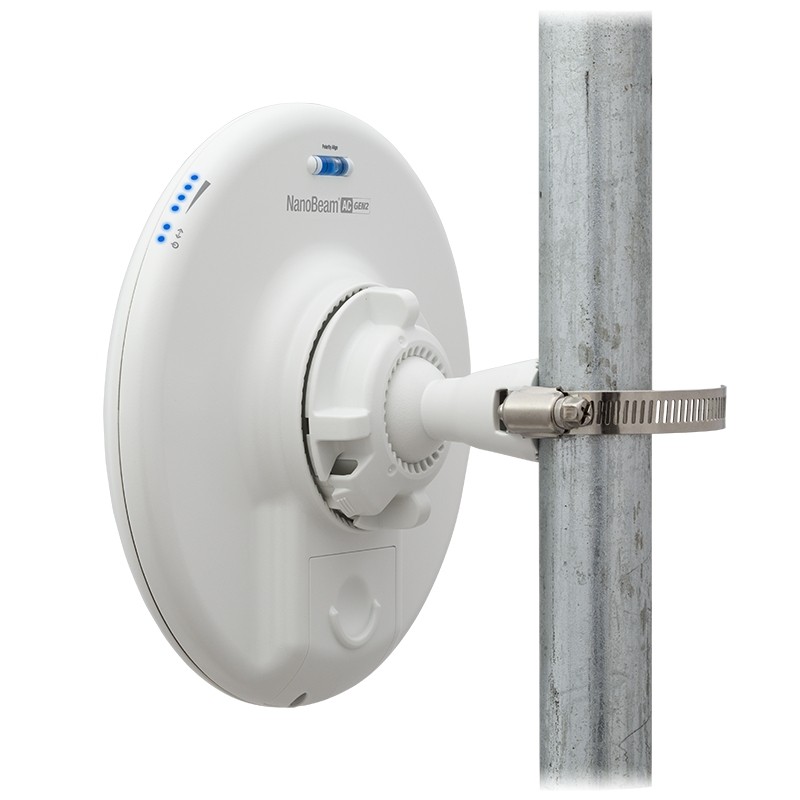

| Mounting | Pole mounting kit (included) Wall mount (not included) |
| Wind load | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| hardware | |

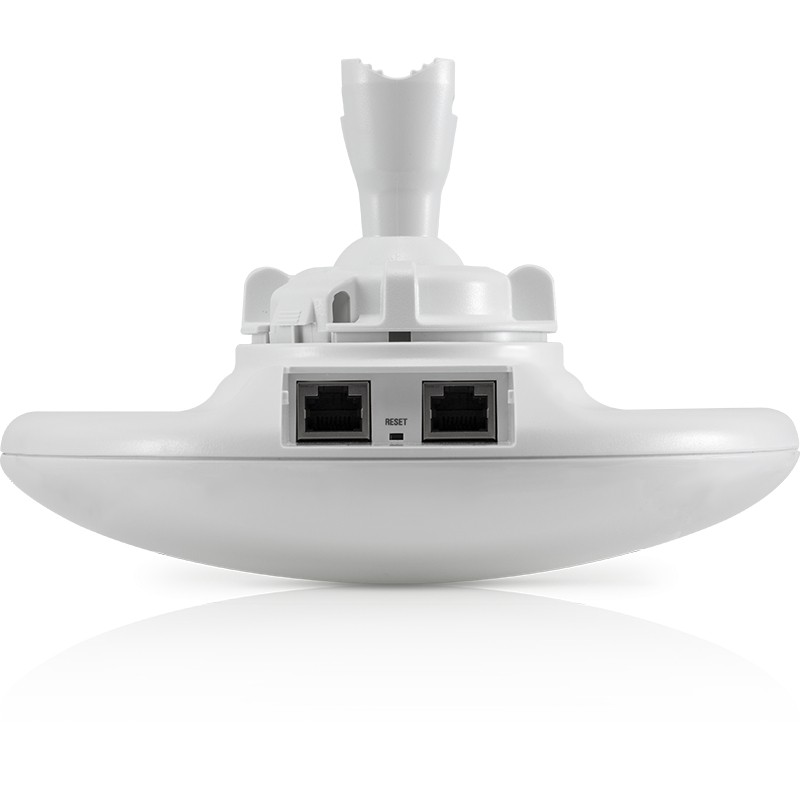

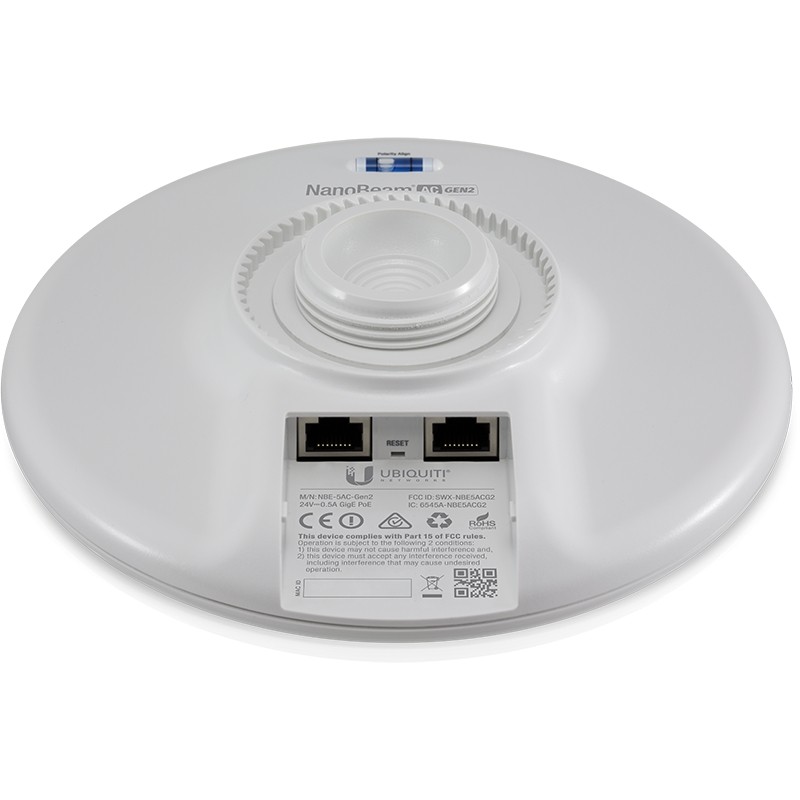

| Network interface | (2) GbE RJ45 ports |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Max. Power consumption | 8W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt spray test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
| Operating temperature | -40 to 80 °C (-40 to 176 F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| system | |
| Gain | 19 dBi |
| Channel sizes PtP mode PtPM mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Max. VSWR | 1,5:1 |
| Polarization | Dual linear |
| Operating frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
Details about Ubiquiti NanoBeam Gen2, AC, 5GHz, 19 dB, airMax, CPE
Manufacurer:
NBE-5AC-Gen2
Weight:
1.138000
Storage:
Zentrallager
