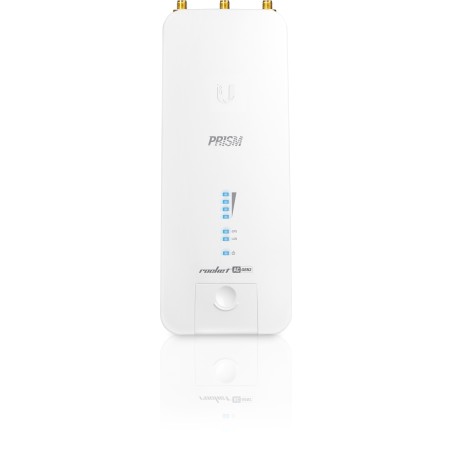

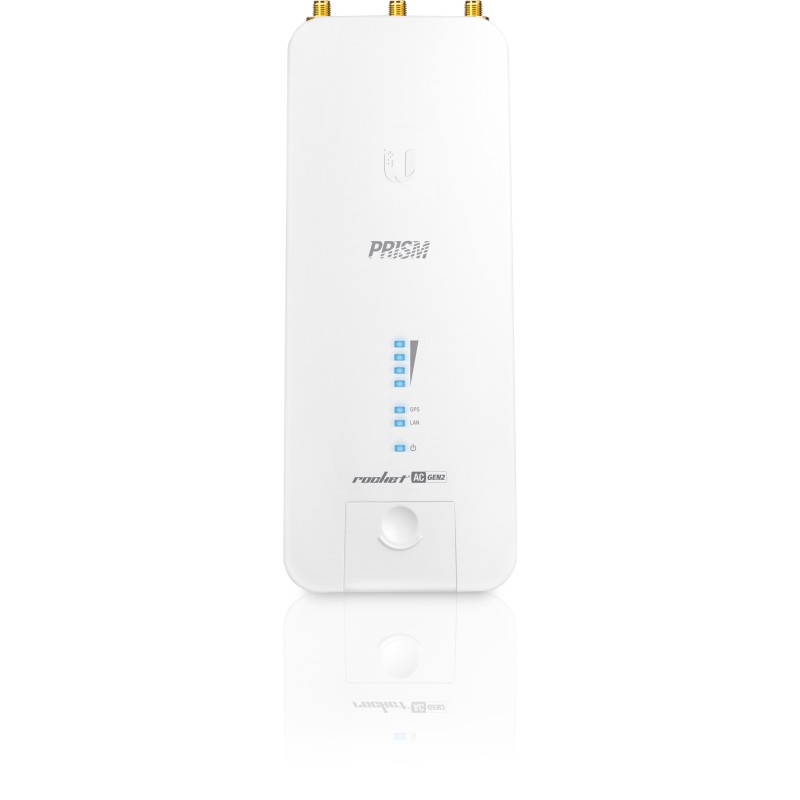

Ubiquiti Rocket ac, 5 GHz RocketPRISM Gen2 Radio, RP-5AC-GEN2
Ubiquiti Rocket ac, 5 GHz RocketPRISM Gen2 Radio, RP-5AC-GEN2
Ubiquiti Rocket ac, 5 GHz RocketPRISM Gen2 Radio, RP-5AC-GEN2
High-performance 5 GHz base station for PtMP or PtP connections. Provides data throughput of up to 500+ Mbps
Active 5 GHz AirPrism RF filter technology
450+ Mbps throughput
Capacity for more than 50 customers
Dedicated spectral analysis radio
Integrated GPS synchronization
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06") |
| Weight | 400 g (14.11 ounces) |
| Housing material | Die-cast aluminum |

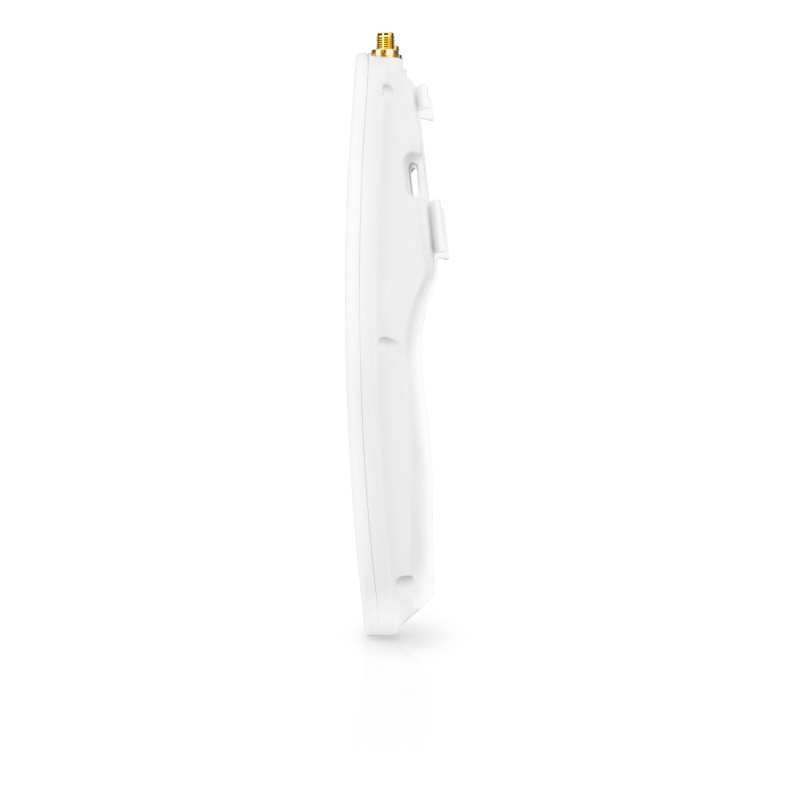

| Mounting | Pole mount (kit included) |
| Wind load | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| RF connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Power supply | 24V, 1A Gigabit PoE adapter (included) |
| Supported voltage range | 18-26 V direct current |
| Max. Power consumption | 9,5 W |

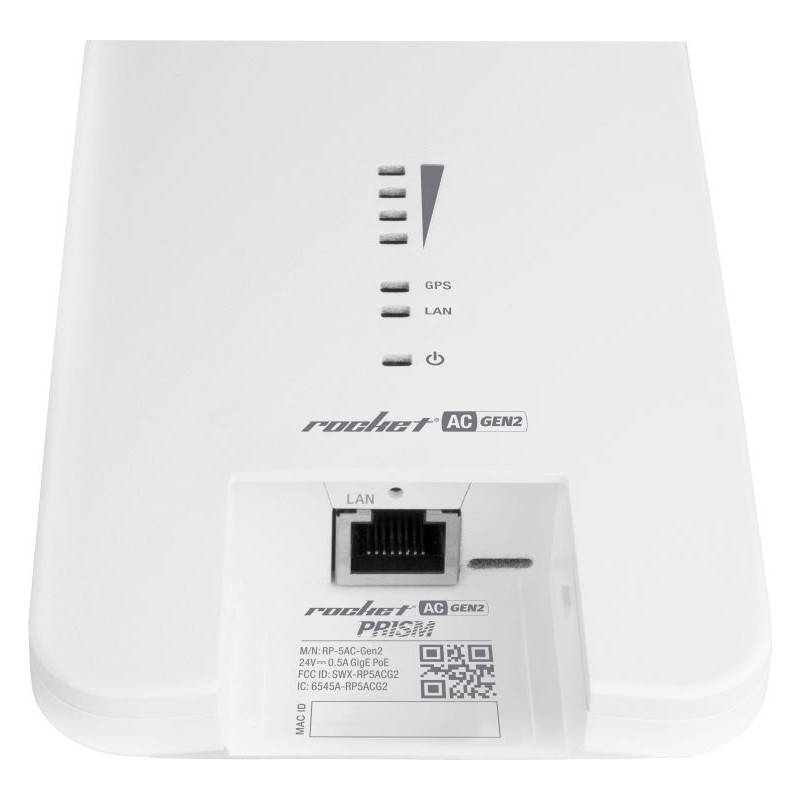

| LEDs | (4) Signal strength: adjustable via software to match user-defined RSSI levels GPS, LAN and power |
| RoHS compliance | Yes |
| Shock and vibration | ETSI300-019-1.4 |
| Operating temperature | -40 to 80 °C (-40 to 176 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| software | |
| Modes | Access point, Station |
| Channel sizes PtP mode PtMP mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Services | Web server, SNMP, SSH server, Telnet, Ping watchdog, DHCP, NAT, bridging, routing |
| Utility programs | airMagic, airView, antenna alignment tool, detection utility, site survey, ping, traceroute, speed test |
| Distance setting | Dynamic ack and ackless mode |
| Performance customization | Software customizable user interface or CLI |
| Security | WPA2 AES only |
| QoS | Supports packet-level WMM classification and user-customer level: High/Medium/Low |
| Statistical reporting | Uptime, packet errors, data rates, wireless distance, Ethernet connection rate |
| Ubiquiti-specific features | 30/50/60 MHz channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, ackless mode |
| Operating frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1: U-NII-2A: U-NII-2C: U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5470-5725 MHz 5725-5850 MHz |
| Management radio (MHz) | |
| Worldwide | 2412-2472 MHz |
| USA | 2412-2462 MHz |
