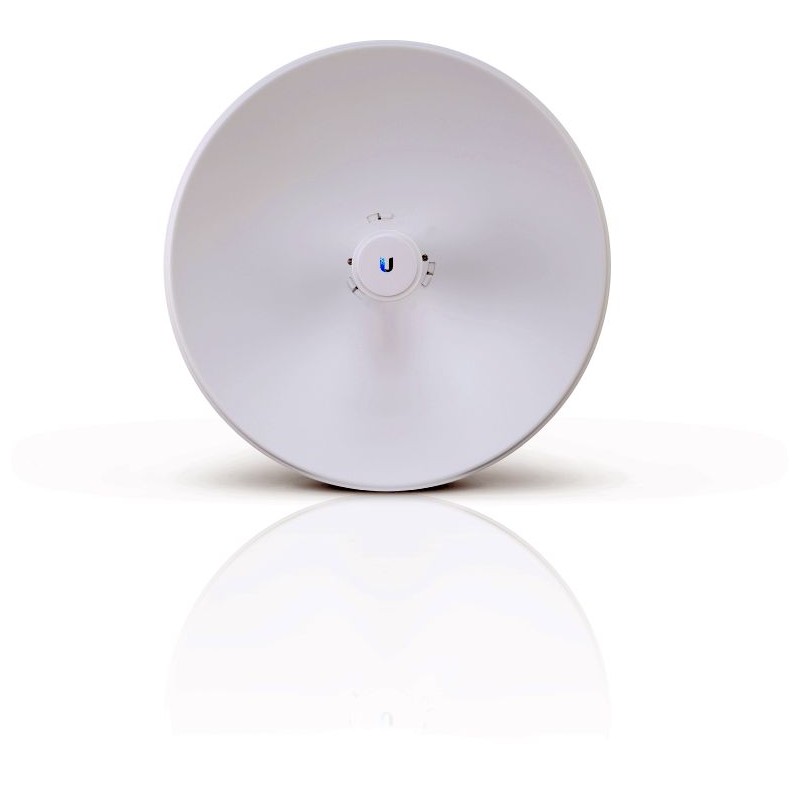

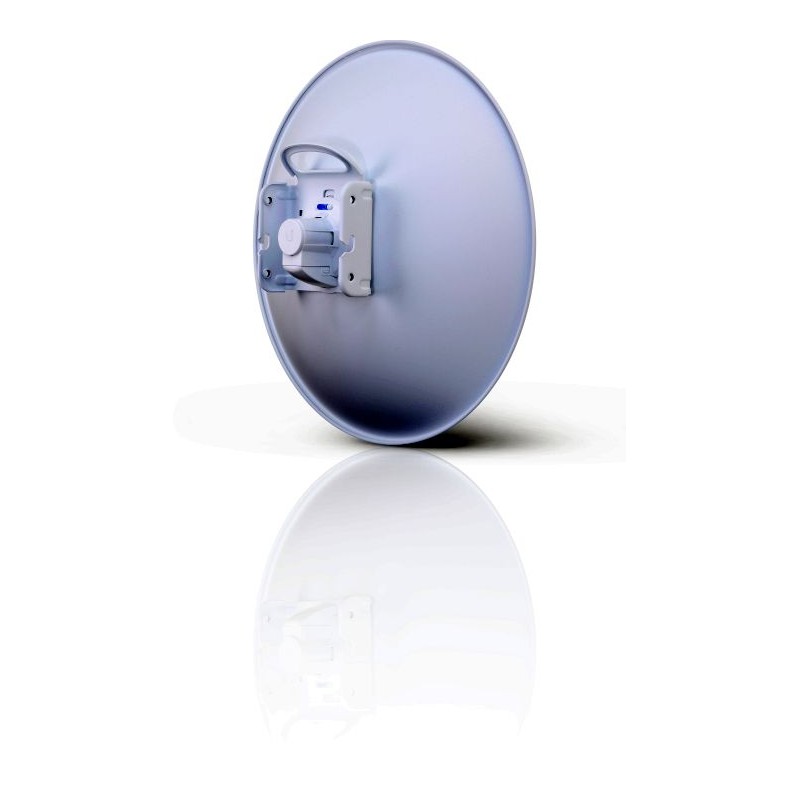

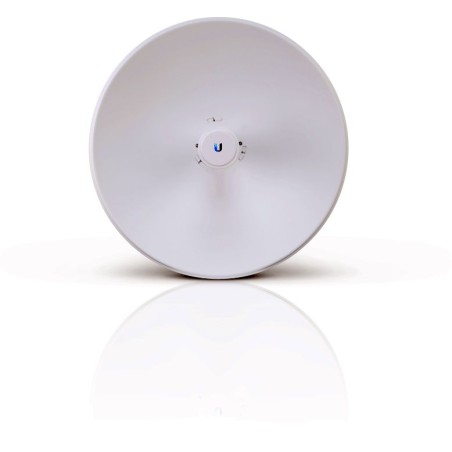

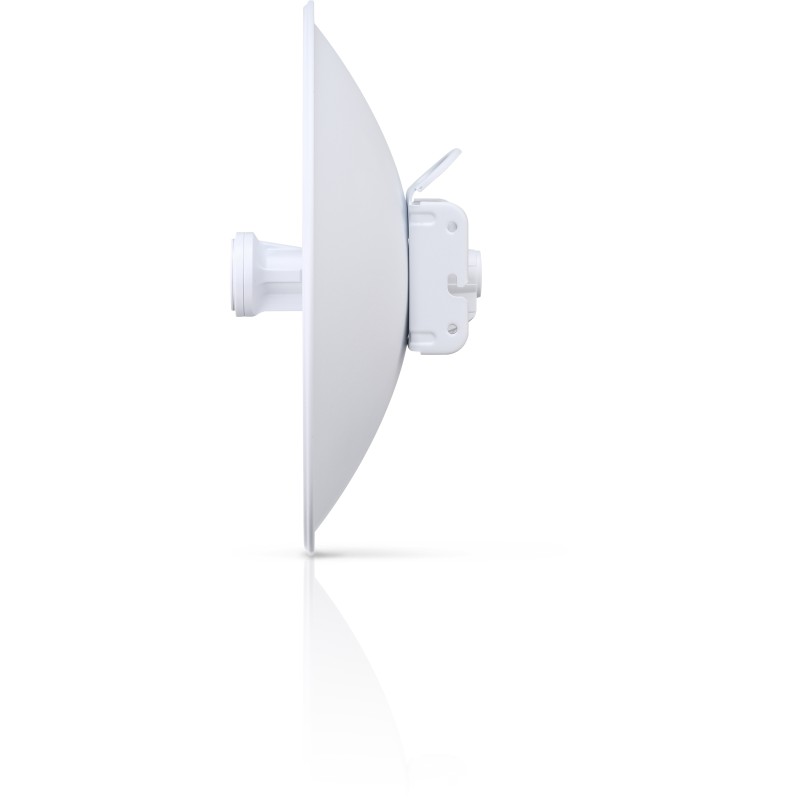

Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
High-performance 5 GHz point-to-point bridge (PtP) with integrated satellite reflector. Provides data throughput of up to 450+ Mbps.
5 GHz, 15+ km connection range
450+ Mbit/s throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WLAN management radio
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230 mm (16.54 x 16.54 x 9.06 inches) |
| Weight | 2.22 kg (4.89 pounds) |
| Housing materials | UV-stabilized plastic, powder-coated SPCC |
| Wind load | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole mounting kit (included) |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Max. Power consumption | 8,5 W |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Supported voltage range | 20-26 V direct current |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| RoHS conformity | Yes |
| Salt spray test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| system | |
| Gain | 25 dBi |
| Channel sizes | PtP mode: 10/20/30/40/50/60/80 MHz PtMP mode: 10/20/30/40 MHz |
| Operating frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA/California | 2412 - 2462 MHz |
Details about Ubiquiti PowerBeamAC Gen2, antenna 420mm 5GHz AirMax CPE
Manufacurer:
PBE-5AC-Gen2
Weight:
4.430000
Storage:
Zentrallager
