5 GHz frequency band
Isolated antenna design suppresses RF noise
Easy mounting
Technical specifications

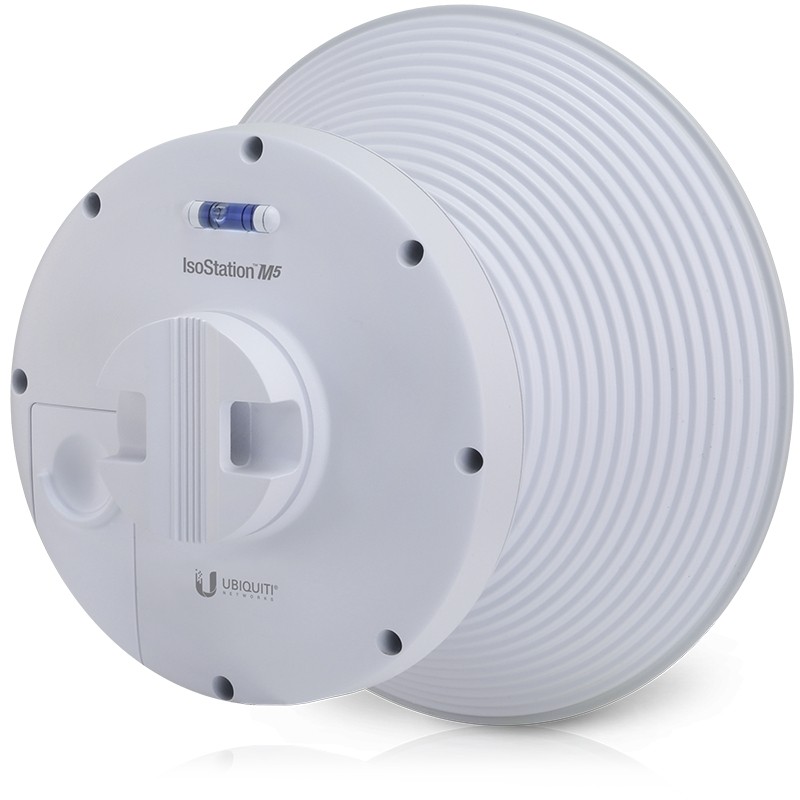

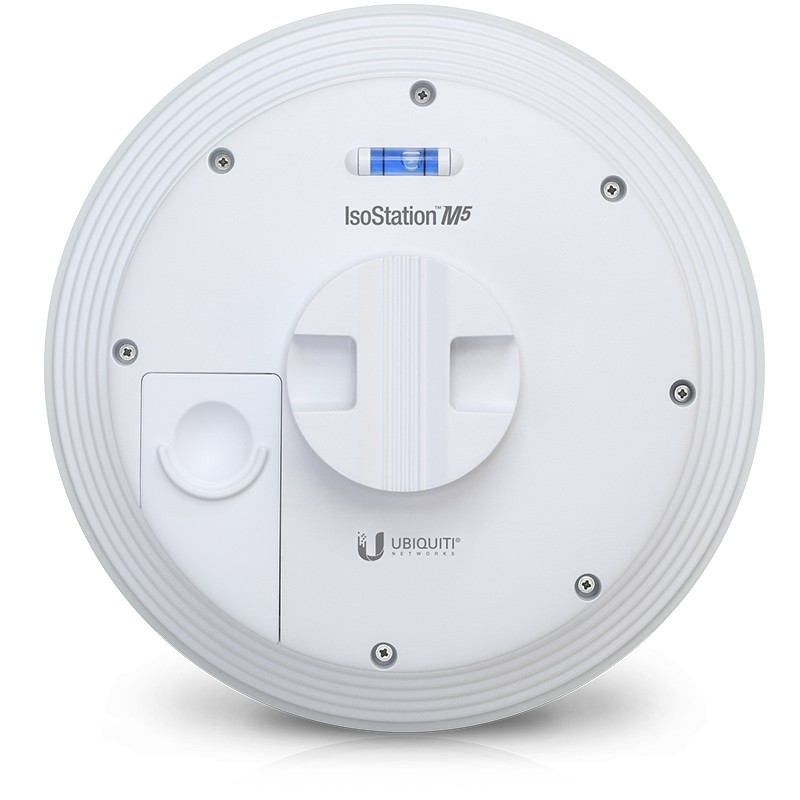

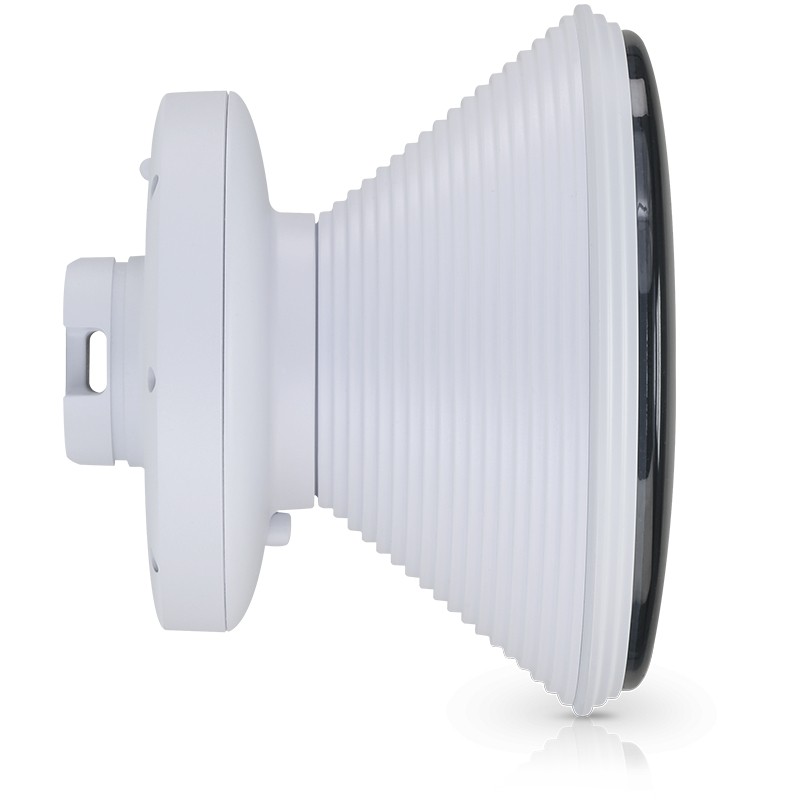

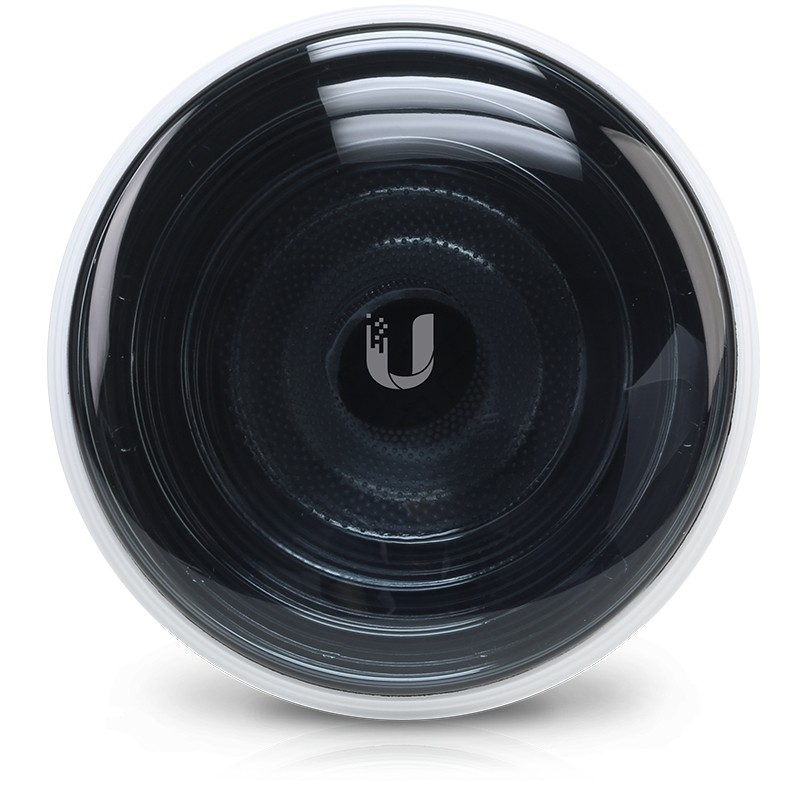

| IsoStation | |
|---|---|
| Dimensions | With horn: 174 x 174 x 150 mm (6.85 x 6.85 x 5.91") Without horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56") |
| Weight | With horn: 725.7 g (1.60 lb) 408.2 g (0.90 lb) |
| Gain | 14 dBi |
| Beam width | 45° (standard horn) |
| Network interface | (1) 10/100/1000 Ethernet port |
| Max. Power consumption | 6,5 W |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included) |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Supported voltage range | 20 to 26 VDC |
| Wind load | 36N at 200 km/h (8.09 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Certifications | CE, FCC, IC |
| Mounting | Pole mount (kit included) |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Operating frequency | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-3: 5725-5850 MHz |
