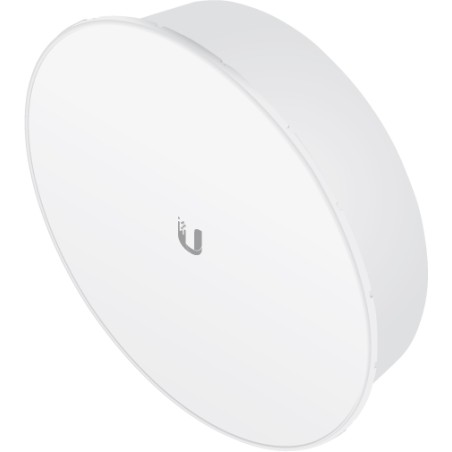

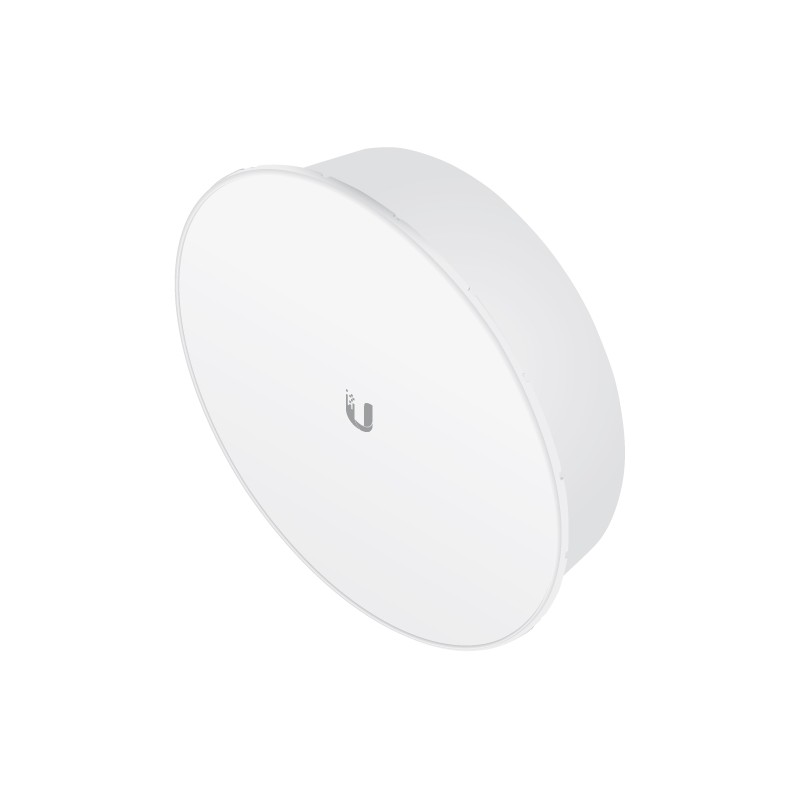

Ubiquiti airMAX PowerBeam M5 300 ISO
Ubiquiti airMAX PowerBeam M5 300 ISO
Ubiquiti airMAX PowerBeam M5 300 ISO
5 GHz, 22 dBi bridge with 300 mm RF-isolated reflector and 150+ Mbit/s throughput.
5 GHz, 20+ km connection range
150+ Mbit/s throughput
Isolated antenna design suppresses RF noise
Improved mounting
Technical specifications
| PBE-M5-300-ISO | |
|---|---|
| Dimensions | 364 x 364 x 276 mm (14.33 x 14.33 x 10.87") |
| Weight | 2.55 kg (5.62 pounds) |
| Power supply | 24 V, 0.5 A PoE |
| Max. Power consumption | 6W |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Supported voltage range | 20-26 VDC |
| Operating frequency | Worldwide: 5170-5875 MHz USA: 5725-5850 MHz |
| Gain | 22 dBi |
| Network interface | (1) 10/100 Ethernet port |
| Processor specifications | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software customizable to match user-defined RSSI values |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual-Linear |
| Enclosure | UV-stabilized plastic for outdoor use |
| Mounting | Pole mounting kit included in the scope of delivery |
| ESD/EMP protection | Air: ± 24 kV, contact: ± 24 kV |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Wireless approvals | FCC, IC, CE |
| RoHS compliance | Yes |
| Salt spray test | IEC 68-2-11 (ASTM B117), equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F), equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, equivalent: MIL-STD-810 G method 506.5 |
Details about Ubiquiti airMAX PowerBeam M5 300 ISO
Manufacurer:
PBE-M5-300-ISO
Weight:
3.354000
Storage:
Zentrallager
