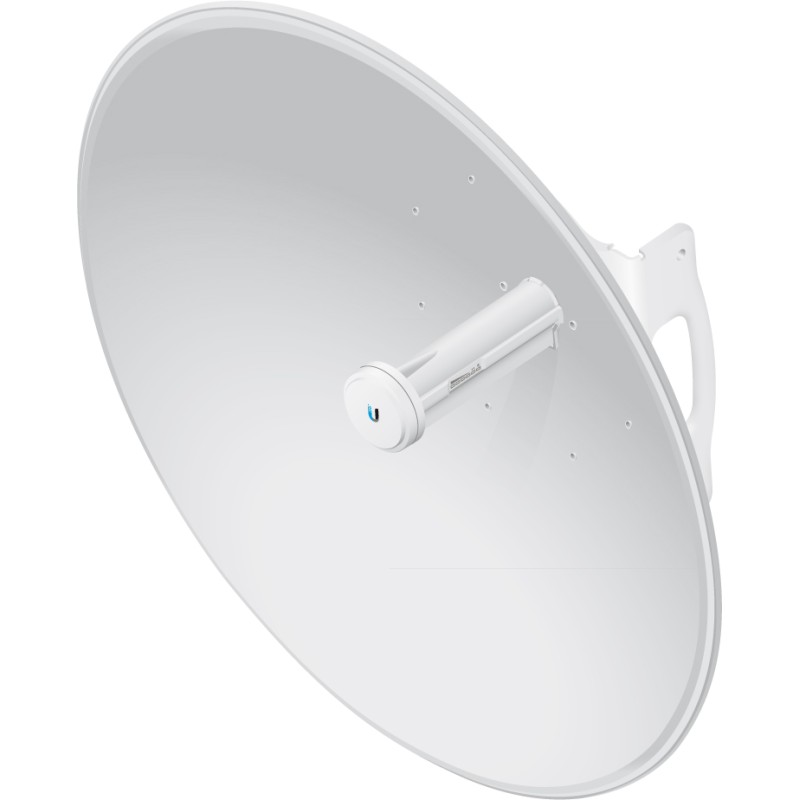

Ubiquiti airMAX PowerBeam 5AC 620
Ubiquiti airMAX PowerBeam 5AC 620
Ubiquiti airMAX PowerBeam 5AC 620
5 GHz WLAN antenna with a real TCP/IP throughput rate of over 450 Mbps.
5 GHz, 25+ km connection range
450+ Mbps throughput
Improved mounting
Dedicated spectral analysis radio
Dedicated WLAN management radio
Notice. This product should be purchased in pairs to form connections.
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 620 x 620 x 386 mm (24.4 x 24.4 x 15.2") |
| Weight | 6.4 kg (14.1 pounds) |
| Housing material | UV-stabilized plastic for outdoor use |
| Mounting | Pole mounting kit (included in scope of delivery) |
| Wind load | Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Power supply | 24 V, 0.5 A Gigabit PoE |
| Max. Power consumption | 8,5 W |
| Supported voltage range | 20-26 V direct current |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software customizable to match user-defined RSSI values |
| RoHS compliance | Yes |
| Salt spray test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, IC, CE |
| system | |
| Gain | 29 dBi |
| Max. VSWR | 1,6:1 |
| Channel sizes | PtP mode: 10/20/30/40/50/60/80 MHz PtMP mode: 10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating frequency (MHz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
Details about Ubiquiti airMAX PowerBeam 5AC 620
Manufacurer:
PBE-5AC-620
Weight:
10.310000
Storage:
Zentrallager
