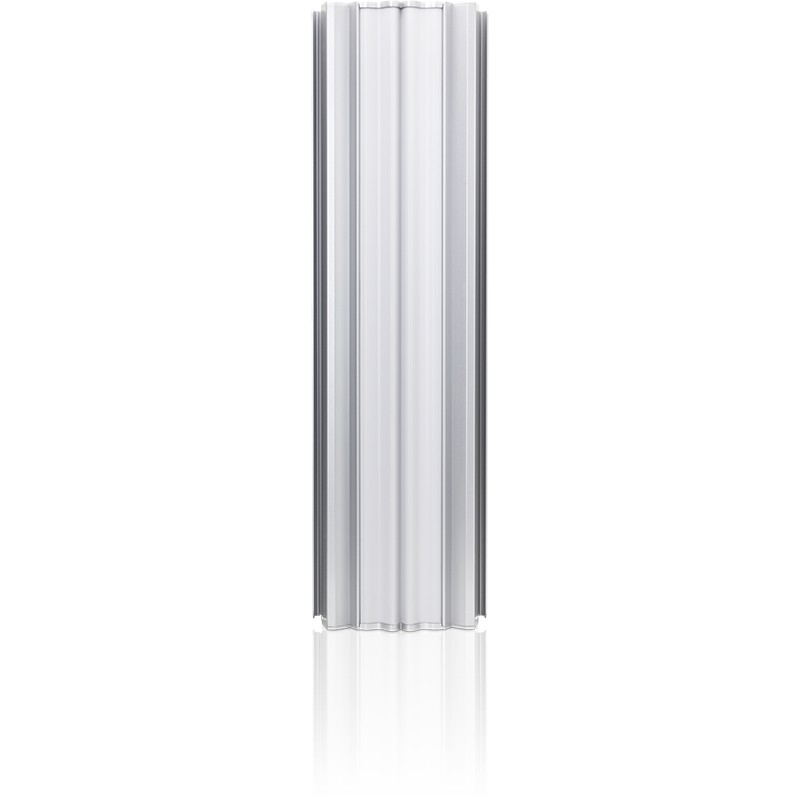

Ubiquiti airMAX AC 5 GHz, 22 dBi, 45° sector
Ubiquiti airMAX AC 5 GHz, 22 dBi, 45° sector
Ubiquiti airMAX AC 5 GHz, 22 dBi, 45° sector
5 GHz, 45°, 22 dBi BaseStation sector antenna for Point-to-MultiPoint (PtMP) networks.
2x2 dual polarity performance
Robust mechanical design for outdoor use
Compatible with Rocket Prism 5AC
Technical Specifications
| AM-5AC22-45 | |
|---|---|
| Dimensions | 750 x 215 x 94 mm (29.5 x 8.5 x 3.7") |
| Weight | 6 kg (13.2 pounds) |
| Frequency range | 5.10 - 5.85 GHz |
| Gain | 22 dBi |
| HPOL beamwidth | 45° (6 dBi) |
| VPOL beamwidth | 45° (6 dBi) |
| Electrical beamwidth | 4° |
| Electrical down tilt | 2° |
| Max. VSWR | 1,5:1 |
| Wind survivability | 200 km/h (125 mph) |
| Wind load | 347 N at 200 km/h (78 lbf at 125 mph) |
| Polarization | Dual-Linear |
| Cross-pole isolation | 30 dB Min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, RocketM mount and weatherproof RF jumpers included in the scope of delivery |
Details about Ubiquiti airMAX AC 5 GHz, 22 dBi, 45° sector
Manufacurer:
AM-5AC22-45
Weight:
8.050000
Storage:
Zentrallager
