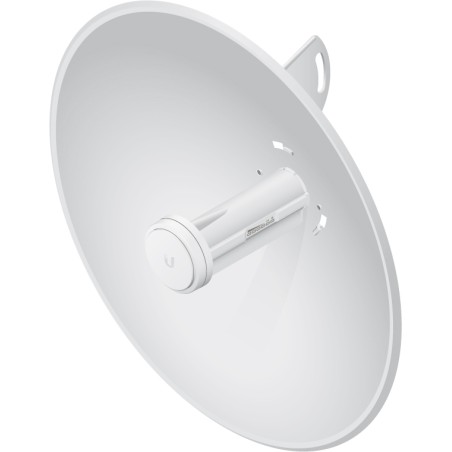

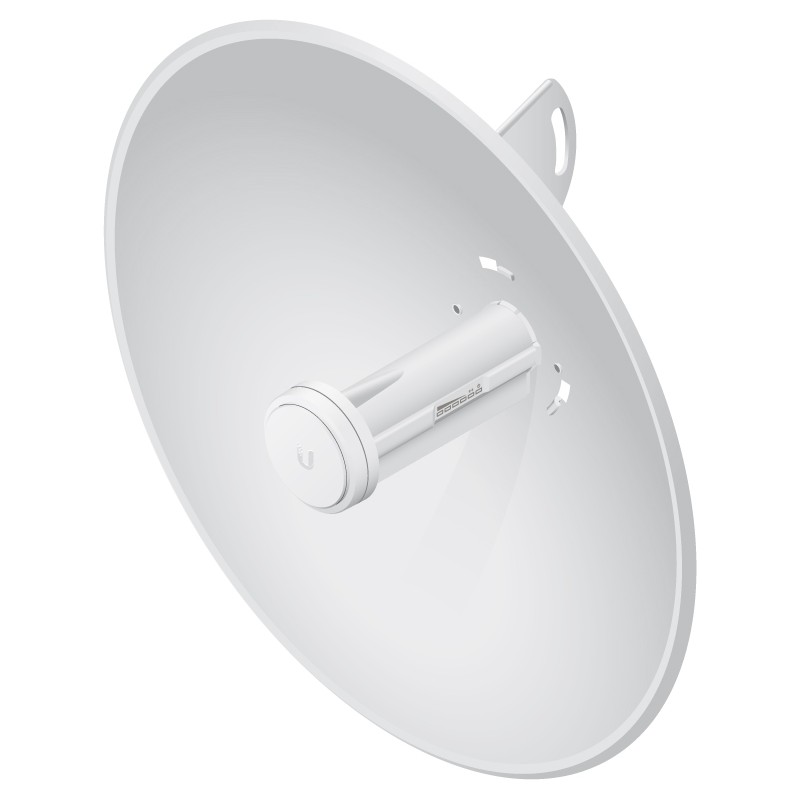

Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE
Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE
Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE
5 GHz, 25 dBi bridge with 150+ Mbit/s throughput.
5 GHz, 25+ km connection range
150+ Mbit/s throughput
Improved mounting
Technical specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 275 mm (16.54 x 16.54 x 10.83") |
| Weight | 1.75 kg (4.8 pounds) |
| Housing material | UV-stabilized plastic |
| Mounting | Pole mounting kit (included) |
| Wind survivability | 200 km/h (125 mph) |
| Wind load | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| hardware | |
| Network interface | (1) GbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Power supply | 24 V, 0.5 A Gigabit PoE adapter (included in scope of delivery) |
| Max. Power consumption | 8W |
| Max. Transmission power | 26 dBm |
| Gain | 25 dBi |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software customizable to match user-defined RSSI values |
| RoHS compliance | Yes |
| Salt spray test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G Method 506.5 |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | CE, FCC, IC |
| system | |
| Gain | 22 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
| Operating frequency (MHz) | |
| Worldwide | 5170 - 5875 MHz |
| USA/California | 5725 - 5850 MHz |
Details about Ubiquiti PowerBeam M5, antenna 400mm 5GHz 25dBi AirMax CPE
Manufacurer:
PBE-M5-400
Weight:
2.436000
Storage:
Zentrallager
