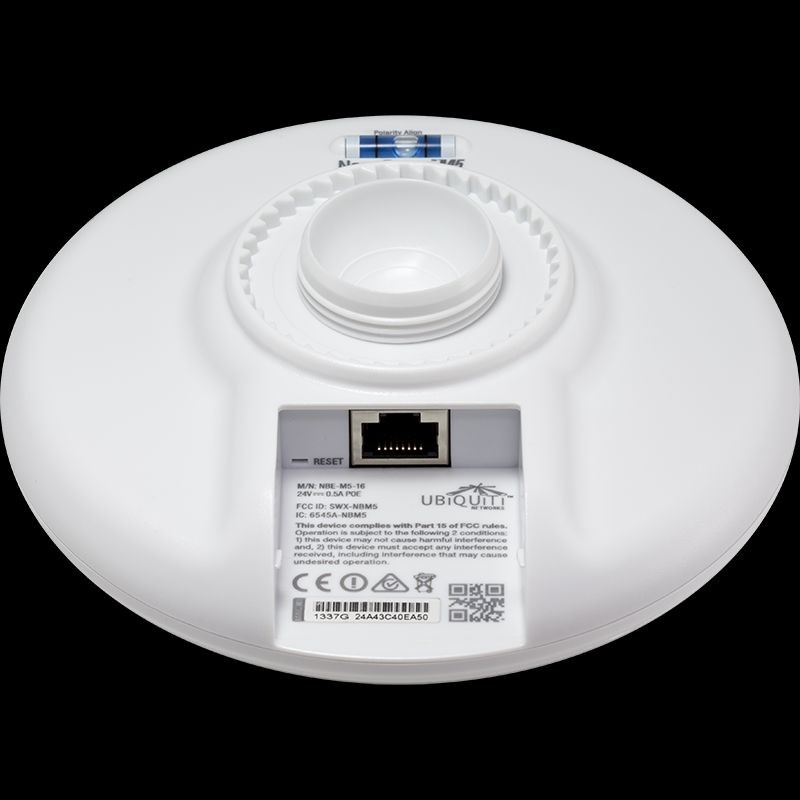

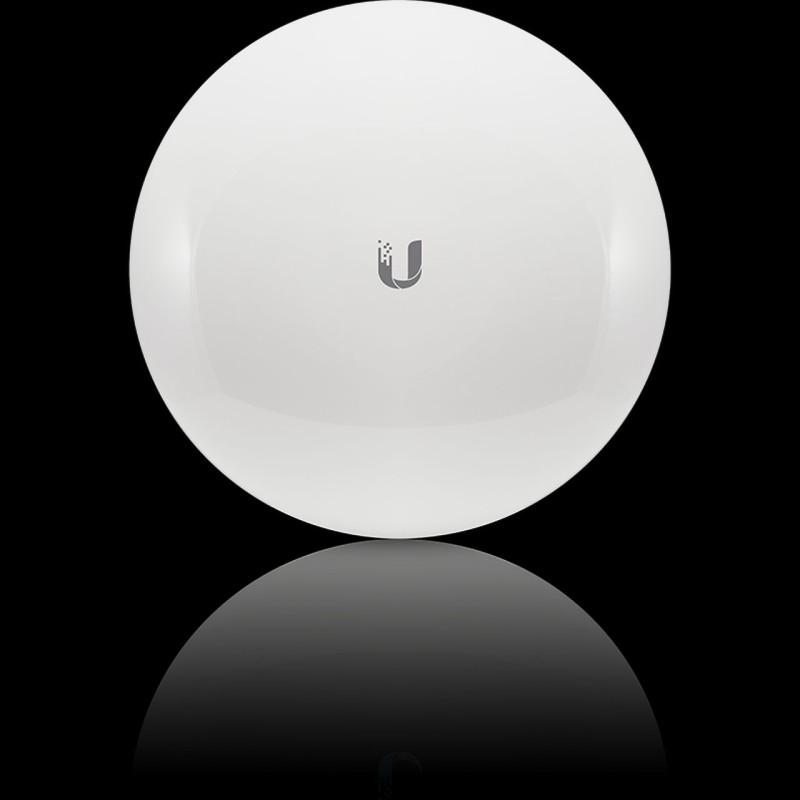

Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
High-performance 5 GHz bridge with 16 dBi.
5 GHz frequency band
Cost-effective, powerful
Plug-and-play integration with airMAX antennas
Technical specifications
| NBE-M5-16 | |
|---|---|
| Dimensions | 140 x 140 x 54 mm (5.51 x 5.51 x 2.13") |
| Weight | 0.320 kg (0.71 pounds) |
| Power supply | 24 V, 0.5 A Gigabit PoE |
| Max. Power consumption | 6W |
| Gain | 16 dBi |
| Network interface | (1) 10/100/1000 Ethernet port |
| Processor specifications | Atheros MIPS 74Kc, 533 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software customizable to match user-defined RSSI values |
| Max. VSWR | 1,5:1 |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual-Linear |
| Enclosure | UV-stabilized plastic for outdoor use |
| Mounting | Pole mounting (kit included), wall mounting |
| Wind load | 21.4 N at 200 km/h (4.8 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| ESD/EMP protection | Air: ± 24 kV, contact: ± 24 kV |
| Operating temperature | -40 to 70 °C (-40 to 158 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Wireless approvals | FCC, IC, CE |
| RoHS compliance | Yes |
| Salt spray test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration test | IEC 68-2-6 |
| Thermal shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40 °C (104 °F), Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating frequency MHz | |
| Worldwide | 5150 - 5875 |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 | 5150 - 5250 5250 - 5350 5470 - 5725 5725 - 5850 |
Details about Ubiquiti NanoBeam M5, 5GHz, 16 dB, airMax, CPE
Manufacurer:
NBE-M5-16 EU
Weight:
0.770000
Storage:
Zentrallager
