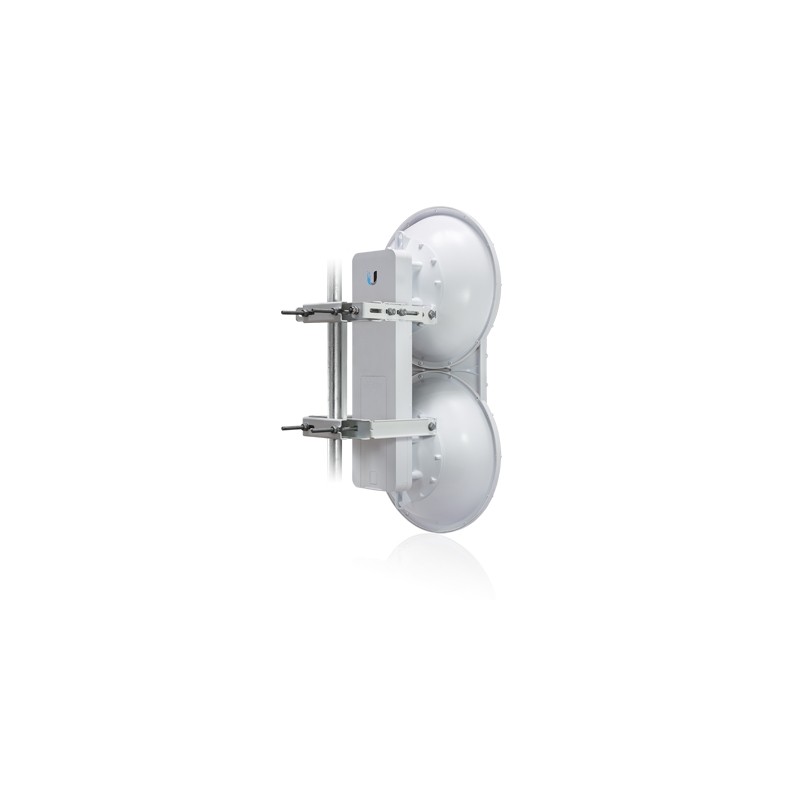

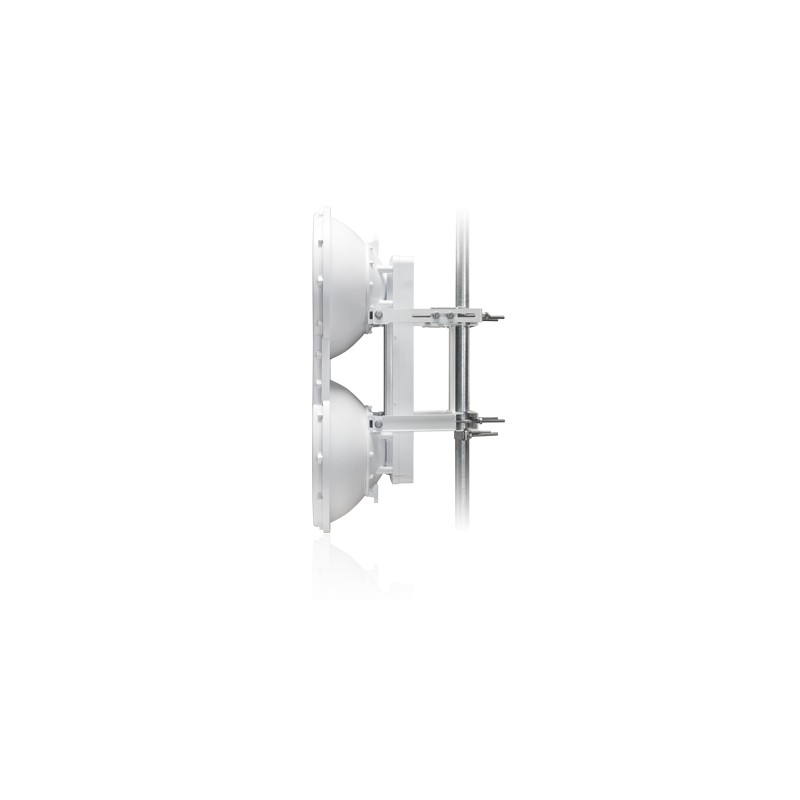

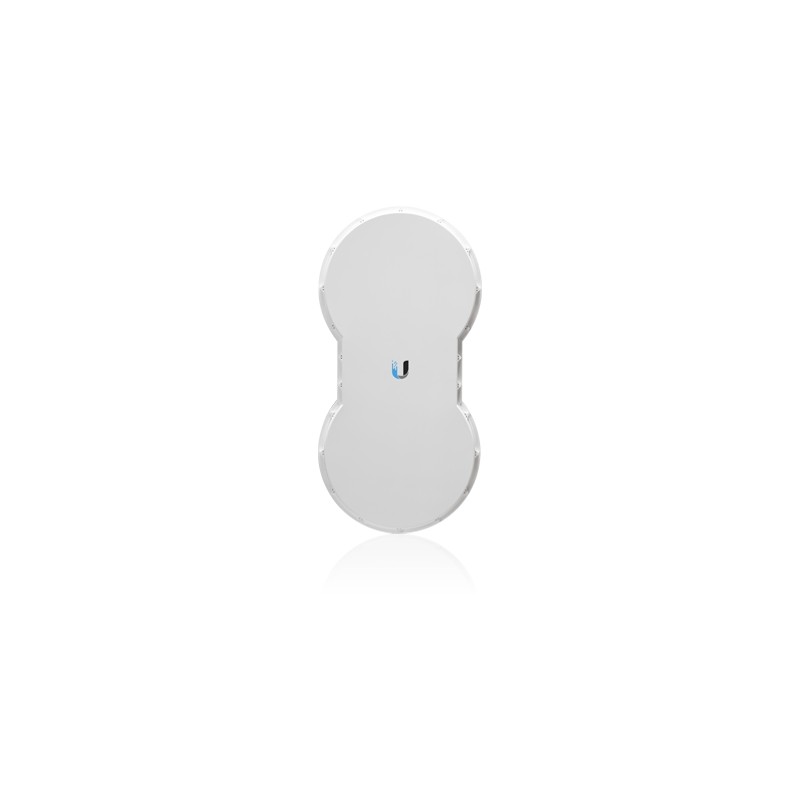

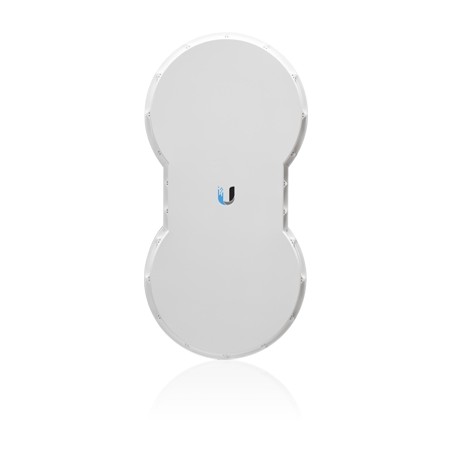

Ubiquiti AirFiber, AF-5U 1Gbps+ backhaul, 5.7-6.2GHz P2P directional radio
Ubiquiti AirFiber, AF-5U 1Gbps+ backhaul, 5.7-6.2GHz P2P directional radio
Ubiquiti AirFiber, AF-5U 1Gbps+ backhaul, 5.7-6.2GHz P2P directional radio
Compact, wireless point-to-point high-band bridge with a throughput rate of over 1.2 Gbit/s.
5 GHz, high-band connection range of over 100 km
1.2+ Gbit/s throughput
Separate integrated TX and RX antennas
Integrated GPS synchronization
1+ Mpps processing
Note. This product should be purchased in pairs to form connections.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 inches) |
| Weight | 16 kg (35.27 pounds) |
| Mounting | Pole mounting kit (included in delivery) |
| Wind load | 863 N at 200 km/h (194 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| hardware | |
| Network interface | (1) GbE RJ45 port (1) 10/100 MbE RJ45 port |
| Auxiliary port | (1) RJ-12, alignment tone connector |
| Power method | Passive PoE |
| Power supply | 50 V, 1.2 A PoE GigE adapter (included) |
| Supported voltage range | 42-58 V direct current |
| Max. Power consumption | 40 W |
| Operating temperature | -40 to 55 °C (-40 to 131 °F) |
| Certifications | CE, FCC, IC |
| system | |
| Max. Throughput | 1.2+ Gbit/s |
| Max. Range* | 100+ km *Depending on the regulatory region. |
| Packets per second | 1+ million |
| Encryption | 128-bit AES |
| Uplink/downlink ratio | 50 % fixed |
| Radio frame synchronization | GPS SYNCHRONIZATION |
| RF | |
| Operating frequency | 5725-5850 MHz (FCC 15.247, IC RSS-210) 5725-5875 MHz (ETSI EN 302 502) 5725-6200 MHz (Other regions) |
| GPS CLOCK SYNCHRONIZATION | GPS clock synchronization |
| EIRP | ~50 dBm *Depending on the regulatory region and frequency band. |
| Frequency accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Modulation | 1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO ½ rate QPSK xRT ¼ rate QPSK xRT |
| Gain TX RX | 23 dBi 23 dBi |
| Beamwidth | 6° |
| Ratio from front to back | 70 dB |
| Polarization | Double inclined |
| Cross-polarity isolation | > 28 dB |
| LEDs | |
| System | (12) Status LEDs: Data port pink/activity Data port speed Management port link/activity Management port speed GPS synchronization Master/slave Link status Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabeled), overload Remote and local indicators (calibrated signal strength) |
