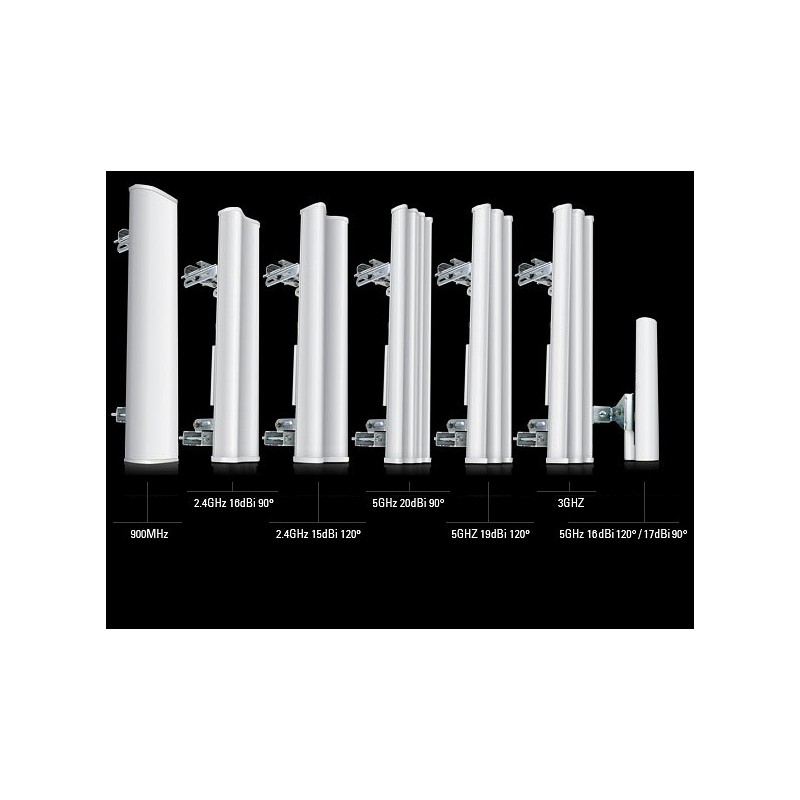

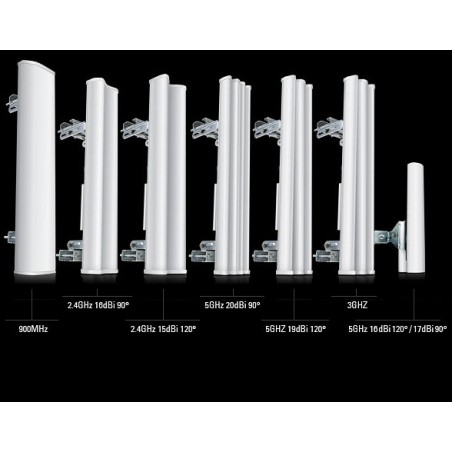

Ubiquiti sector antenna AirMax MIMO 19dBi 5GHz, 120°, rocket
Ubiquiti sector antenna AirMax MIMO 19dBi 5GHz, 120°, rocket
Ubiquiti sector antenna AirMax MIMO 19dBi 5GHz, 120°, rocket
5 GHz, 120°, 19 dBi or 90°, 20 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
2x2 dual polarity performance
Robust mechanical design for outdoor use
Compatible with Rocket Prism 5AC
Technical Specifications
| AM-5G19-120 | |
|---|---|
| Dimensions (mm) | 700 x 135 x 73 mm (27.6 x 5.3 x 2.9") |
| weight | 5.9 kg (13 pounds) |
| Frequency range | 5.15 - 5.85 GHz |
| Gain | 18.6 - 19.1 dBi |
| HPOL beamwidth | 123° (6 dB) |
| VPOL beamwidth | 123° (6 dB) |
| Electrical beam width | 4° |
| Electrical downward inclination | 2° |
| Max. VSWR | 1,5:1 |
| Wind survivability | 200 km/h (125 mph) |
| Wind load | 89 N at 160 km/h (20 lbf at 100 mph) |
| Polarization | Dual-Linear |
| Cross-pole isolation | 28 dB Min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, RocketM mount and weatherproof RF jumpers included in delivery |
| AM-5G20-90 | |
| Dimensions | 700 x 135 x 70 mm (27.6 x 5.3 x 2.8") |
| Weight | 5.9 kg (13 pounds) |
| Frequency range | 5.15 - 5.85 GHz |
| Gain | 19.4 - 20.3 dBi |
| HPOL beamwidth | 91° (6 dB) |
| VPOL beamwidth | 85° (6 dB) |
| Electrical beam width | 4° |
| Electrical downward inclination | 2° |
| Max. VSWR | 1,5:1 |
| Wind survivability | 200 km/h (125 mph) |
| Wind load | 115 N at 160 km/h (26 lbf at 100 mph) |
| Polarization | Dual-Linear |
| Cross-pole isolation | 28 dB Min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, RocketM mount and weatherproof RF jumpers included in the scope of delivery |
Details about Ubiquiti sector antenna AirMax MIMO 19dBi 5GHz, 120°, rocket
Manufacurer:
AM-5G19-120
Weight:
4.863000
Storage:
Zentrallager
