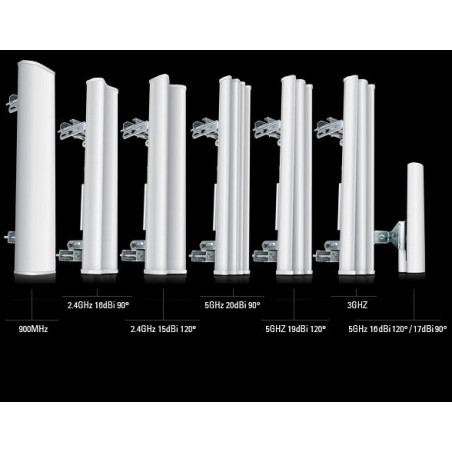

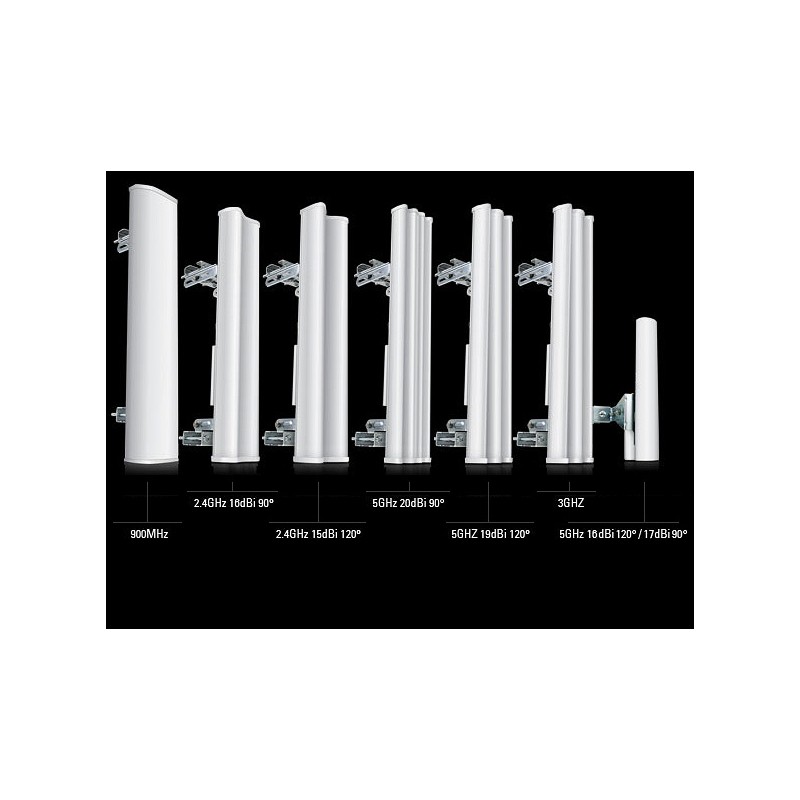

Ubiquiti sector antenna AirMax MIMO 17dBi 5GHz, 90°, rocket
Ubiquiti sector antenna AirMax MIMO 17dBi 5GHz, 90°, rocket
Ubiquiti sector antenna AirMax MIMO 17dBi 5GHz, 90°, rocket
5 GHz, 120°, 16 dBi or 90°, 17 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
2x2 dual polarity performance
Robust mechanical design for outdoor use
Compatible with Rocket Prism 5AC
Technical Specifications
| AM-5G16-120 | |
|---|---|
| Dimensions | 367 x 63 x 41 mm (14.4 x 2.5 x 1.6") |
| Weight | 1.1 kg (2.4 pounds) |
| Frequency range | 5.10 - 5.85 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL beamwidth | 137° (6 dB) |
| VPOL beamwidth | 118° (6 dB) |
| Electrical beam width | 8° |
| Electrical downward inclination | 4° |
| Max. VSWR | 1,5:1 |
| Wind survivability | 200 km/h (125 mph) |
| Wind load | 26 N at 160 km/h (6 lbf at 100 mph) |
| Polarization | Dual-Linear |
| Cross-pole isolation | 22 dB min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, RocketM mount and weatherproof RF jumper included in scope of delivery |
| AM-5G17-90 | |
| Dimensions | 367 x 63 x 41 mm (14.4 x 2.5 x 1.6") |
| Weight | 1.1 kg (2.4 pounds) |
| Frequency range | 4.90 - 5.85 GHz |
| Gain | 16.1 - 17.1 dBi |
| HPOL beamwidth | 72° (6 dB) |
| VPOL beamwidth | 93° (6 dB) |
| Electrical beam width | 8° |
| Electrical downward inclination | 4° |
| Max. VSWR | 1,5:1 |
| Wind survivability | 200 km/h (125 mph) |
| Wind load | 26 N at 160 km/h (6 lbf at 100 mph) |
| Polarization | Dual-Linear |
| Cross-pole isolation | 22 dB min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, RocketM mount and weatherproof HF jumper included in the scope of delivery |
Details about Ubiquiti sector antenna AirMax MIMO 17dBi 5GHz, 90°, rocket
Manufacurer:
AM-5G17-90
Weight:
1.575000
Storage:
Zentrallager
