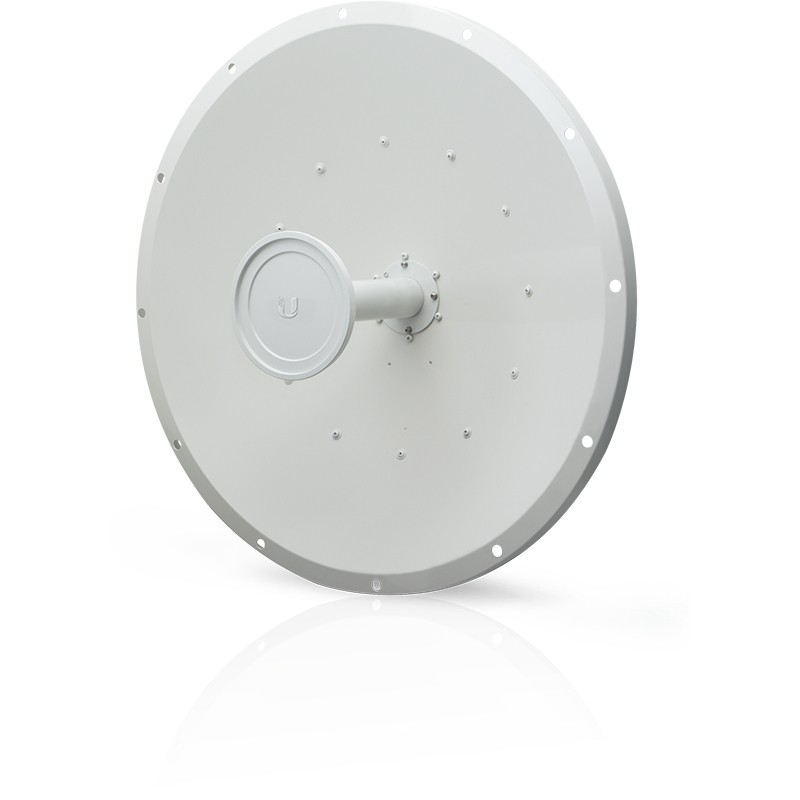

Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit
Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit
Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit
5 GHz, 30 dBi or 34 dBi high-performance antenna.
2x2 dual polarity performance
Robust mechanical design for outdoor use
Includes radome and metal cover
Compatible with Rocket Prism 5AC, Rocket M5
Technical specifications
| RD-5G34 | |
|---|---|
| Dimensions | 1050 x 1050 x 421 mm (41.34 x 41.34 x 16.57") |
| Weight | 13.5 kg (29.76 pounds) |
| Frequency range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 30 dBi 5 - 5.8 GHz: 34 dBi |
| HPOL beamwidth | 3° (3 dB) |
| VPOL beamwidth | 3° (3 dB) |
| F/B ratio | 42 dB |
| Max. VSWR | 1,4:1 |
| Wind load | 1,779 N at 200 km/h (400 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pole insulation | 35 dB Min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, rocket mount and weatherproof RF connectors included in delivery |
| RD-5G30 | |
| Dimensions | 650 x 650 x 304 mm (25.6 x 25.6 x 11.97") |
| Weight | 9.8 kg (21.61 pounds) |
| Frequency range | 4.9 - 5.8 GHz |
| Gain | 4.9 GHz: 26 dBi 5 - 5.9 GHz: 30 dBi |
| HPOL beamwidth | 5° (3 dB) |
| VPOL beamwidth | 5° (3 dB) |
| F/B ratio | 34 dB |
| Max. VSWR | 1,4:1 |
| Wind load | 787 N at 200 km/h (177 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Polarization | Dual-Linear |
| Cross-pole insulation | 35 dB Min. |
| ETSI specification | EN 302 326 DN2 |
| Mounting | Universal pole mount, rocket mount and weatherproof RF connectors included in delivery |
Details about Ubiquiti RocketDish 30dBi, 5GHz, Rocket Kit
Manufacurer:
RD-5G30
Weight:
9.490000
Storage:
Zentrallager
