Indoor/Outdoor airMAX 5 GHz CPE.
5 GHz frequency band
Cost-effective, powerful
Plug-and-play integration with airMAX antennas
Technical specifications
| NSM5 | |
|---|---|
| Dimensions | 294 x 31 x 80 mm (11.57 x 1.22 x 3.15") |
| Weight | 400 g (14.11 ounces) |
| Enclosure | UV-stabilized plastic for outdoor use |
| Mounting | Pole mount (kit included) |

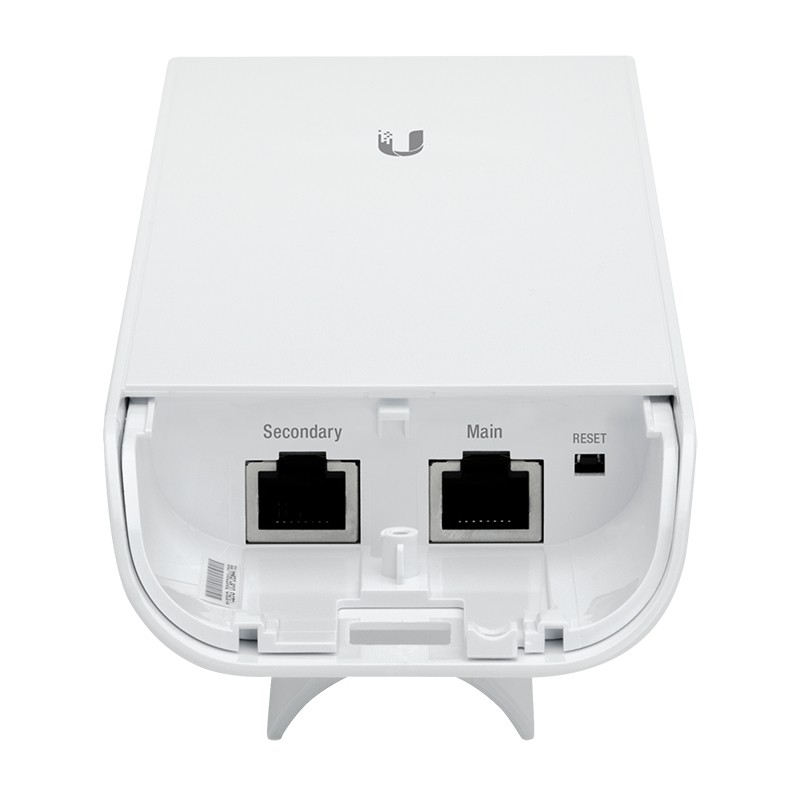

| Network interface | (2) 10/100 Ethernet ports |
| Processor specifications | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Power supply (PoE) | 24V, 0.5A |
| Max. Power consumption | 8W |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Operating frequency worldwide USA USA DFS | 5170-5875 MHz 5725-5850 MHz 5250-5850 MHz |
| Gain | 14.6-16.1 dBi |
| Frequency | 5 GHz |
| Cross-pole isolation | Minimum 22 dB |
| Max. VSWR | 1,6:1 |
| Beam width | 43° (H-pole) / 41° (V-pole) / 15° (elevation) |
| Polarization | Dual-Linear |
| RoHS conformity | Yes |
| Shock and vibration | ETSI300-019-1.4 |
| Operating temperature | -30 to 75 °C (-22 to 167 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Certifications | FCC, ICC, CE |
