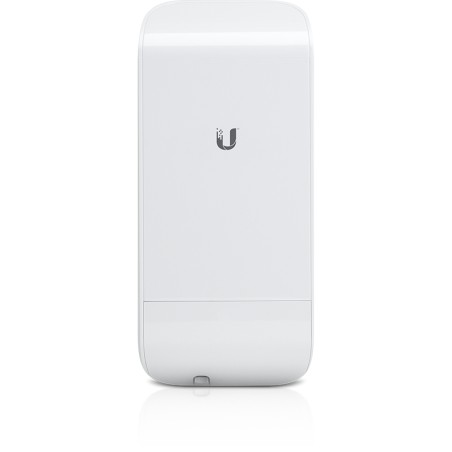

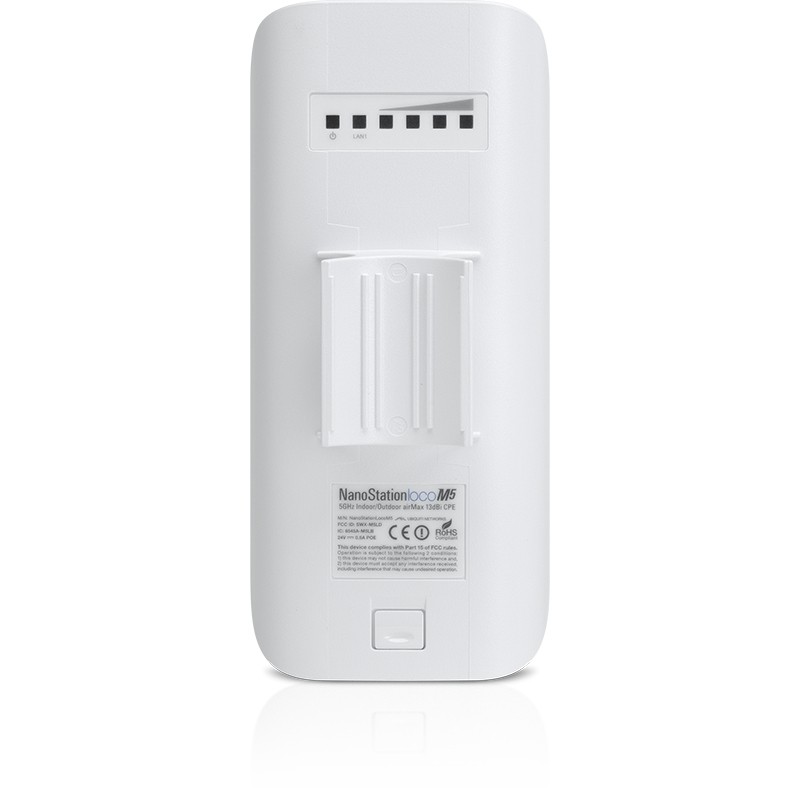

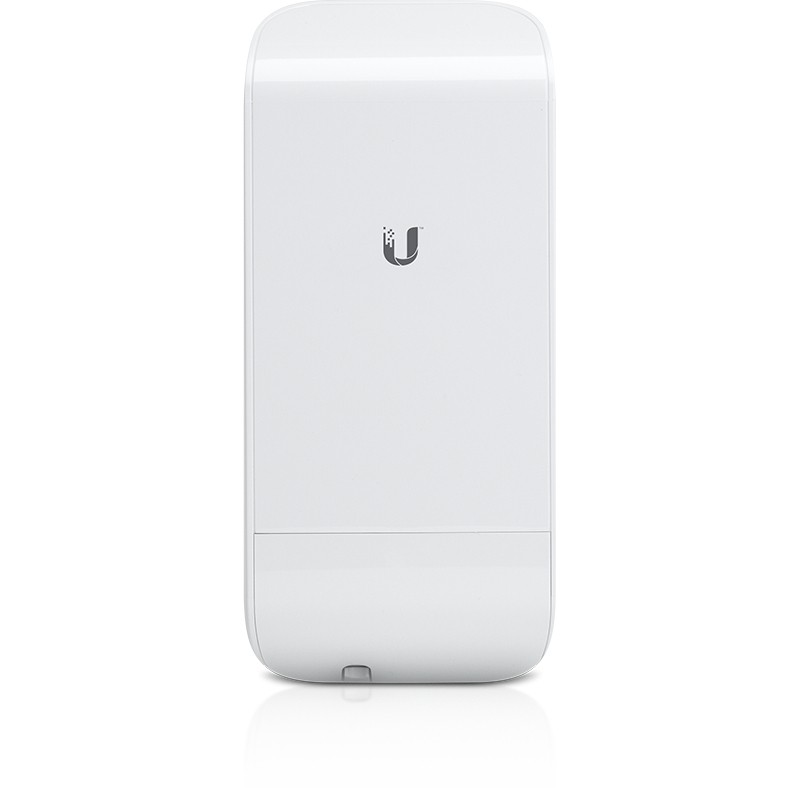

NanoStation Loco M5, antenna 13dBi, outdoor client MIMO 5GHz, AirMax Station
NanoStation Loco M5, antenna 13dBi, outdoor client MIMO 5GHz, AirMax Station
NanoStation Loco M5, antenna 13dBi, outdoor client MIMO 5GHz, AirMax Station
Cost-effective and efficient broadband 5 GHz CPE.
5 GHz frequency band
Cost-effective, powerful
Plug-and-play integration with airMAX antennas
Technical specifications
| Dimensions | 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") |
| Weight | 180 g (6.35 ounces) |
| Power supply (PoE) | 24V, 0.5A |
| Max. Power consumption 5.5 W | 5,5 W |
| Power method | Passive PoE (pairs 4, 5+ 7, 8 return) |
| Operating frequency MHz Worldwide USA USA DFS | 5170-5875 5725-5850 5250-5850 |
| Gain | 13 dBi |

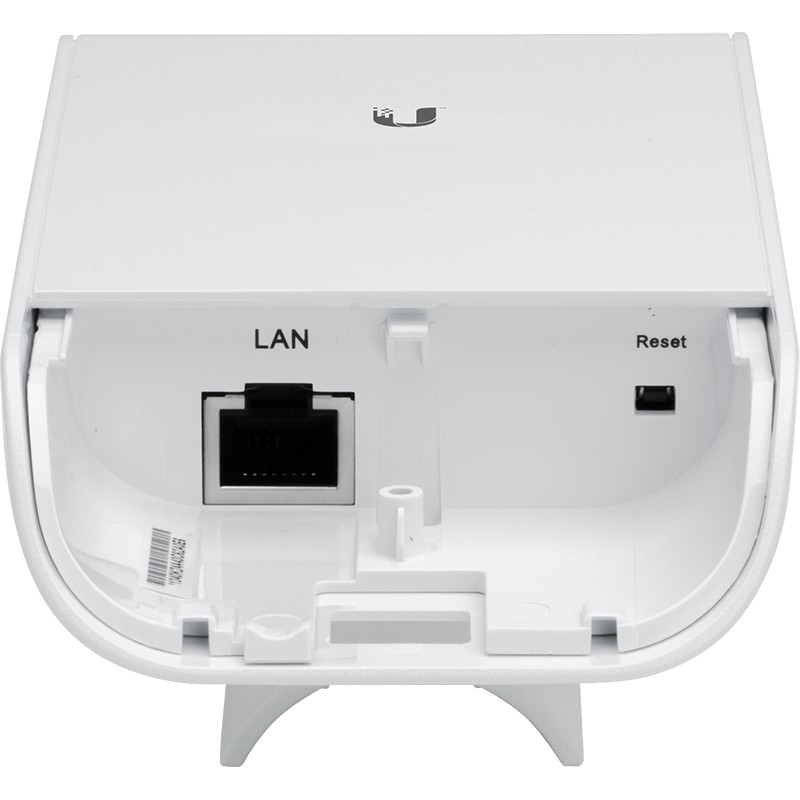

| Network interface | (1) 10/100 Ethernet port |
| Processor specifications | Atheros MIPS 24Kc, 400 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Frequency | 5 GHz |
| Cross-pole isolation | At least 20 dB |
| Max. VSWR | 1,4:1 |
| Beam width | 45° (H-pole) / 45° (V-pole) / 45° (elevation) |
| Polarization | Dual-linear |
| Housing | UV-stabilized plastic for outdoor use |
| Mounting | Pole mount (kit included in scope of delivery) |
| Operating temperature | -30 to 75 °C (-22 to 167 °F) |
| Operating humidity | 5 to 95 % non-condensing |
| Wireless approvals | FCC Part 15.247, IC RS210, CE |
| RoHS compliance | Yes |
| Shock and vibration | ETSI300-019-1.4 |
Details about NanoStation Loco M5, antenna 13dBi, outdoor client MIMO 5GHz, AirMax Station
