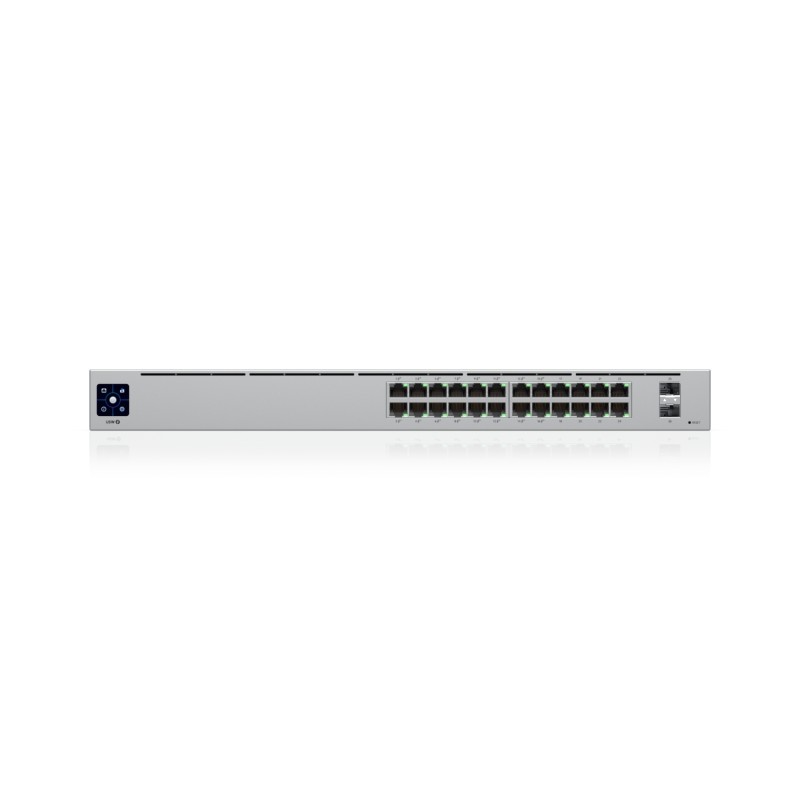

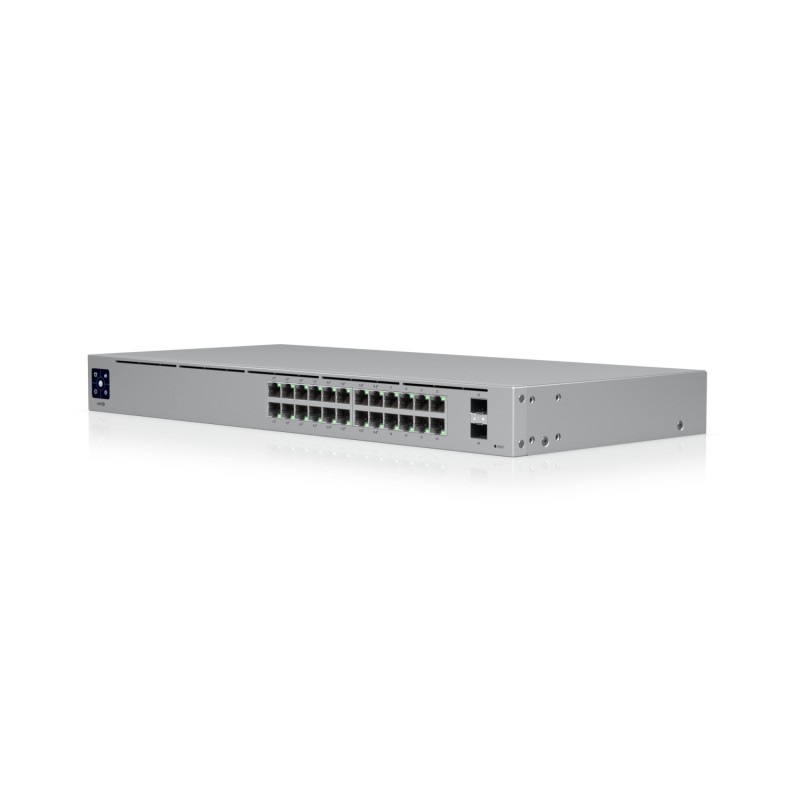

Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE
Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE
Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE
A 24-port Layer 2 PoE switch with fanless cooling system.
(16) GbE PoE+, (8) GbE ports
(2) 1G SFP ports
Total 95W PoE availability
Fanless, silent cooling
Technical specifications
| Mechanically | |
|---|---|
| Dimensions | 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7") |
| Weight | Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb) |
| Housing material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Network interface | (24) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (16) PoE/PoE+ (pins 1, 2+ 3, 6-) |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | Universal input, 100-240 V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 120 W |
| Supported voltage range | 100–240 V AC |
| Max. energy consumption | 25 W (without PoE output) |
| Total available PoE | 95W |
| Max. PoE wattage per port according to PSE | PoE+: 32W |
| Voltage range PoE mode | PoE: 44-57V PoE+: 50-57V |
| ESD/EMP protection | Air: ± 16 kV, Contact: ± 12 kV |
| LCM display | (1) 1.3-inch touchscreen |
| button | Factory settings reset |
| Shock and vibration | ETSI300-019-1.4 standard |
| operating temperatur | -5 to 40 °C (23 to 104 °F) |
| Operating humidity | 10 to 90% non-condensing |
| Certifications | CE, FCC, IC |
| LED | |
| system | status |
| Ethernet | PoE Speed/Link/Activity |
| SFP | Link/Activity |
| Application requirements | |
| UniFi Network | Version 7.2.94 and higher |
Details about Ubiquiti Unifi Switch / 24 Port / 16x POE+/ 8 Rj45 Gigabit / 120W / 2x 1G SFP / USW-24-POE
Manufacurer:
USW-24-POE-EU
Weight:
4.100000
Storage:
Zentrallager
