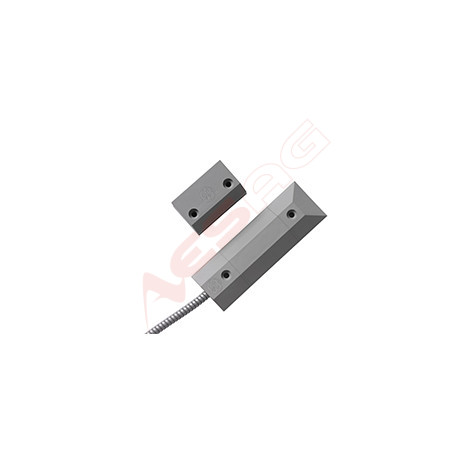

Roller shutter contact with 2m connection cable, 4-wire, EN grade 3, VDS
Industrial roller shutter magnetic contact, high security, grey
| Device type: | Magnetic contact |
| Connection: | Wired |
| VDS certification: | Yes |
| EN50131 Certification: | Yes |
| Safety level EN50131: | 3 |
Roller shutter contact with 2m connection cable, 4-wire, EN grade 3, VDS
Description
DC408 roller shutter contact
High security roller shutter magnetic contact, grey, EN grade 3, VDS-C
Technical data
- Contact type 1 - pole, NC contact
- Switching distance 34 mm, +/- 5 mm
- Switching voltage max. 100 V DC
- Switching current max. 500 mA
- Connection cable LIYY 4 x 0.14 mm Cu strand tinned; suitable for LSA connections
- Contact dimensions 144 x 50 x 16.5 mm
- Cable dimensions Ø 3.2 mm x 2 m
- Metal hose L 1 m, Ø 6 x 9 mm galvanized steel, coated in PVC (up to 10 m length)
- Magnet housing dimensions 66 x 40 x 35 mm
- Color gray
- Temperature range - 25 °C to + 70 °C
- Environmental class III, IP 67
- EN Grade 3
- VdS No. G 110007 (Class C)
