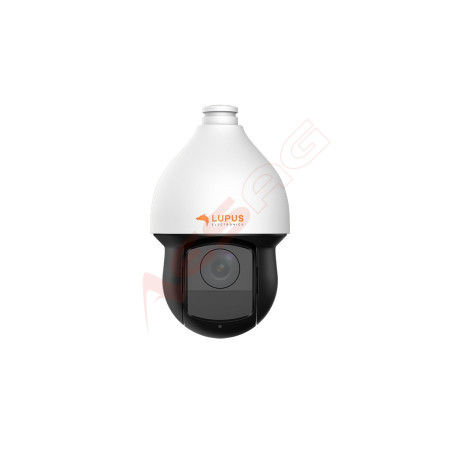

LUPUSNET | IP Camera 4MPx T/N IR PTZ PoE+ IP66

Our outdoor IP speed dome LE281 offers flexible all-round protection: With 2592 x 1520 pixels, it delivers razor-sharp color images down to 0.005 lux. At night, this digital guard illuminates the surroundings up to 100 meters. It is controlled very conveniently and, depending on your individual requirements, via our APP, a professional keyboard with joystick, a PC or one of our NVR hard disk recorders. The high-speed dome rotates at a rapid 300° per second and delivers excellent images. The optical zoom enlarges the image 30 times, so that people can be identified, counted and automatically tracked across your property at a maximum distance of 270m. Integrated ventilation and heating enable operation at -40 to +70°C. Our LUPUS SmartVision software for recording and control is included free of charge for MacOS and Windows.

Product features:

• 4 megapixels, max. 2592x1520 pixels with H.265+ compression
• Person tracking and intelligent person recognition
• Persons identifiable during the day up to 270m
• IR night vision up to max. 100 meters
• 4.5~135mm motorized lens (controllable via APP and software)
• WDR (120dB), IR cut filter, 3DNR, AWB, AGC and BLC image enhancements
• IP66 and PoE+ capable
• Suitable for SD cards up to 256GB

Technical data:

• Image Sensor: 1/3“ CMOS
• Resolution: 2592(H) x 1520(V), 4 megapixels
• RAM/ROM: 1024MB / 128MB
• Scanning system: Progressive
• Electronic shutter speed: 1/1s~1/30,000s
• Minimum exposure: Color: 0.005 Lux @ F1.6, B/W: 0.0005 Lux @ F1.6, IP on: 0 Lux @ F1.6
• IR range: Up to 100m
• IR On/Off Control: Auto/ Manual
• IR LEDs: 4

Lens:

• Focal length: 4.5mm~135mm
• Max. aperture: F1.6 ~ F4.4
• Viewing angle: 60° (Horizontal) ~ 2.2°
• Optical zoom: Yes, 30x
• Focus Control: Auto / Manual
• Close focus distance: 100mm~ 1000mm
• DORI Distance:: Detection: 2700m, Observation: 1080m, Recognition: 540m, Identification: 270m

PTZ:

• Max. Pan/Tilt Capability: Pan: 0° ~ 360° continuous; Tilt: -15° ~ 90°
• Manual control speed: Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
• Automatic control speed: Pan: 400° /s; Tilt: 300° /s
• Preset points: 300
• PTZ mode: 5 patterns, 8 tours, auto pan, auto scan
• Power-on action: Automatically restore the previous PTZ and lens status after a power failure
• Action on inactivity: Activate preset / scan / tour / pattern if there is no command in the specified period

Recognition:

• Event trigger: motion detection, video tampering, scene change, network disconnection, IP address conflict, illegal access, memory anomaly
• Automatic tracking: Yes
• Intelligent Detection (IVS): Tripwire, Intrusion, Exit
• Advanced features: face recognition, heat map

Video:

• Compression: H.265+/H.265/H.264+/H.264
• Streaming capability: 3 streams
• Maximum resolution: 4MP (2592 × 1520 pixels)
• Frame rate - main stream: 4MP, 25fps
• Frame rate - Substream 1: D1 / CIF/ VGA, 25 fps
• Frame rate - Substream 2: 4MP, 15fps
• Bitrate control: CBR / VBR
• Day/Night: Auto / Color / Black and White
• Backlight compensation: BLC / HLC / WDR (120dB)
• White balance: Auto, ATW, Indoor, Outdoor, Manual
• Gain: Auto / Manual
• Noise Reduction: Ultra DNR (2D/3D)
• Motion detection: Yes, in up to 4 areas
• Electronic image stabilization (EIS): Yes
• Defog: Yes
• Digital zoom: Yes, 16x (via LUPUS app and SmartVision software)
• Privacy masking: Yes, up to 24 areas

Audio:

• Compression: G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network:

• Ethernet: RJ-45 (10Base-T / 100Base-TX)
• Protocol: IPv4, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
• Interoperability: ONVIF Profile S&G, API
• Streaming method: Unicast / Multicast
• Max. user access: 20
• Storage: NAS, FTP, Micro SD card 256GB
• Web browser: IE, Chrome, Firefox, Safari
• Management software: SmartVision for Mac and Windows (free)
• App: LUPUS for iOS and Android (free)

Product data:

• RS485: -
• Audio I/O (input/output): 1/1 (1x input, 1x output)
• Alarm I/O (input/output): 2/1 (2x input, 1x output)
• Power supply: AC 24V/3A (±10%), PoE+ (802.3at)
• Power consumption: 13W (23W - IR on)
• Operating temperature: -40°C ~ 70°C / less than 95% relative humidity
• Protection class: IP66
• Housing: Metal
• Dimensions: ø 186 mm x 309 mm
• Weight: 3.5kg

Scope of delivery:

• 1x LUPUS LE281 IP camera 4MPx day/night IR PTZ PoE+ IP66
• 1x power supply
• 1x wall mount
• 1x sealing tape
• 1x Installation Manual (English)
