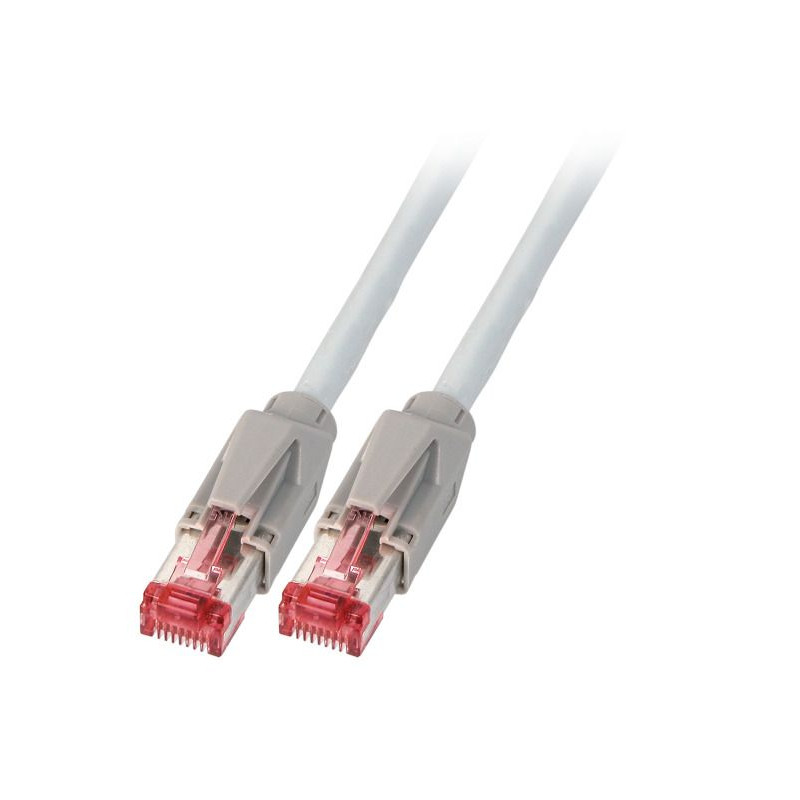

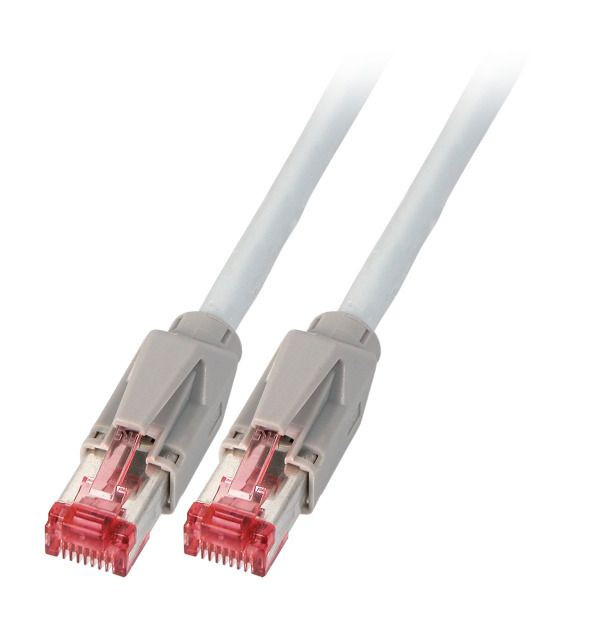

Patch cable RJ45, CAT6A, 500Mhz, 2m, gray, S-STP(S/FTP), TM21+Leoni-Kerpen F6-90 S/F,

*Order-specific, non-cancellable*, Hirose TM21 with kink and nose protection with Leoni-Kerpen F6-90 S/F cable. Product information: This European-made Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The patch cable is composed of the Cat.7 raw cable F6-90 S/F from Leoni-Kerpen and TM21 connectors from Hirose. Cross-section: 4 x 2 x AWG27/7. Mounted kink relief sleeve.

Product features Category 6A (TIA) Connector type connection 1 RJ45 8(8) Connector type connection 2 RJ45 8(8) Plug type TM21 red with grey anti-kink sleeve Cable type Leoni-Kerpen F6-90 S/F Contacts Gold-plated Pin assignment 1:1 Assignment according to TIA/EIA 568B Design Shielded Anti-kink sleeve plugged on Colour of the anti-kink sleeve grey Snap-on lever protection Yes Mating cycles = 750 Bending radius > 28.5 mm Shield contact 360° Shield attachment Raw cable Cat.7 Cable type S/FTP Cable construction 4x2 AWG cross-section 27/7 Conductor material copper Jacket material LSZH Jacket colour grey Outer diameter of the cable 5.7 mm Flame-retardant according to IEC60332-1 Halogen-free according to IEC60754-2 Low smoke according to IEC61034 Temperature range (operation) -20 – 60 °C Temperature range (installation) 0 – 50 °C NVP value 78% Impedance 100 ±5 O Conductor resistance DC 170 O/km Loop resistance 340 O/km Insulation resistance 5000 MO Test voltage 1000 (V DC, 1 min) Wire/wire and wire/shield POE class PoE according to IEEE802.3afPoE+ according to IEEE802.3at4PPoE according to IEEE802.3bt Bandwidth 500MHz Transmission 10Gbit Connector IEC 60603-7-51
