Fiber optic patch cable
2.20

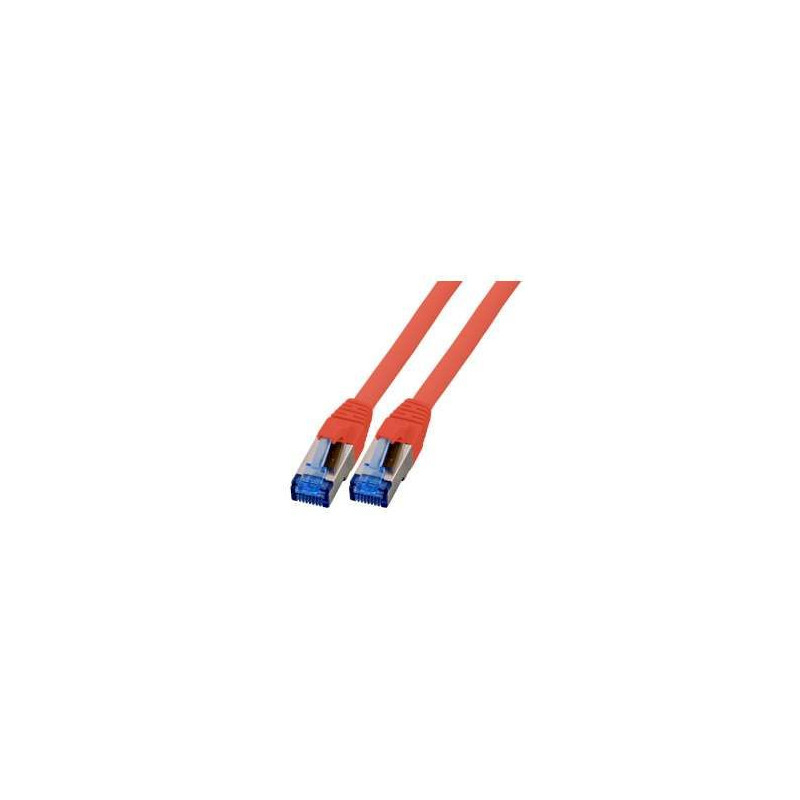

Patch cable RJ45, CAT6A 500Mhz, 15m, red, S-STP(S/FTP), TPE(Superflex), with Cat.7 raw cable,
Patch cable RJ45, CAT6A 500Mhz, 15m, red, S-STP(S/FTP), TPE(Superflex), with Cat.7 raw cable,
Patch cable RJ45, CAT6A 500Mhz, 15m, red, S-STP(S/FTP), TPE(Superflex), with Cat.7 raw cable,
*Order-related, non-cancellable*, Product properties Category 6A (IEC) Connector type connection 1 RJ45 8(8) Connector type connection 2 RJ45 8(8) Plug type RJ45 Standard blue Contacts 50 µ" Gold-plated Pin assignment 1:1 Assignment according to TIA/EIA 568B Design Shielded Length printing Yes Molded-on strain relief boot Color of strain relief boot red Snap-on lever protection Yes Mating cycles = 750 Bending radius > 32.5 mm Shield contact 360° Shield attachment Raw cable Cat.7 Cable type S/FTP Cable construction 4x2 AWG cross-section 26/7 Conductor material Copper Silicone-free Yes Jacket material TPE/LSZH Jacket color red Cable printing Cat.6A Patchcord SUPERFLEX S/FTP Outer diameter of the cable 6.5 mm Halogen-free according to IEC60754-2 Low smoke according to IEC61034 Temperature range -20 75 °C NVP value - % Impedance 100 ±25 O Conductor resistance DC 142 O/km Loop resistance 284 O/km Resistance asymmetry 2 % Insulation resistance 100 MO Contact resistance 30 mO Test voltage 1000 (V DC, 1 min) Wire/wire and wire/shield POE class PoE according to IEEE802.3afPoE+ according to IEEE802.3at4PPoE according to IEEE802.3bt Bandwidth 500 MHz Transmission 10 Gbit Cabling standard ISO/IEC 11801ANSI/TIA-568-C.2EN50173 Connector IEC 60603-7-51
Details about Patch cable RJ45, CAT6A 500Mhz, 15m, red, S-STP(S/FTP), TPE(Superflex), with Cat.7 raw cable,
Manufacurer:
K5525FRT.15
Weight:
0.570000
Storage:
Zentrallager
