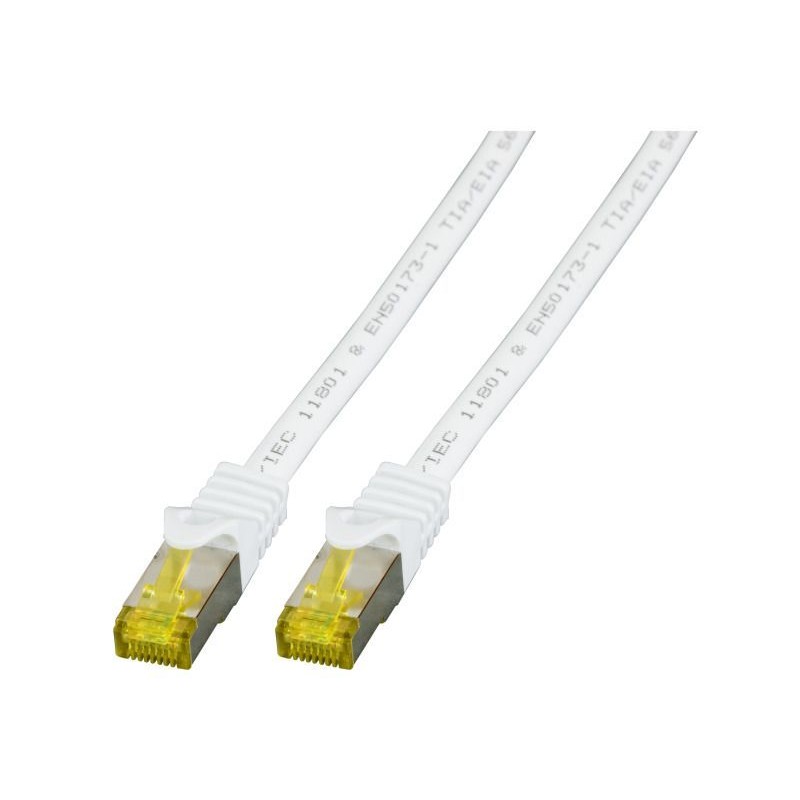

Patch cable RJ45, CAT6A 500Mhz, 2m, white, S-STP(S/FTP), LSZH, with Cat.7 raw cable,

*Order-specific, non-cancellable*, Item information: The shielded Cat.6A RJ45 patch cable ensures excellent performance for 10 Gigabit Ethernet applications. The molded sleeve impresses with its slim design, simplifying the connection process in tight spaces. Cross section 4 x 2 x AWG26/7 Molded anti-kink sleeve, slim design Length imprinted on the sleeve Product properties Category 6A (TIA) Connector type connection 1 RJ45 8(8) Connector type connection 2 RJ45 8(8) Plug type RJ45 Standard yellow Contacts Gold-plated Pin assignment 1:1 Assignment according to TIA/EIA 568B Design Shielded Length imprint Yes Anti-kink sleeve molded Color of the anti-kink sleeve gray Snap-on lever protection Yes Mating cycles = 750 Bending radius > 32.5 mm Shield contacting Point shield contact Raw cable Cat.7 Cable structure S/FTP Cable construction 4x2 AWG cross section/strands per wire 26/7 Conductor material Copper Silicone-free Yes Jacket material LSZH Jacket color gray Cable imprint Cat.7 raw cable S/FTP 4x2xAWG26/7 PIMF 600MHz ISO/IEC 11801 & EN50173-1 TIA/EIA 568B-2.1 Halogen Free ***10GIGABIT*** Outer diameter of the cable 6.5 mm Flame retardant according to IEC60332-1 Halogen free according to IEC60754-2 Low smoke according to IEC61034 Temperature range -20 60 °C Impedance 100 ±5 Ω Conductor resistance DC 146 Ω/km Loop resistance 292 Ω/km Resistance asymmetry 5 % Insulation resistance 10 Ω Contact resistance 30 Ω Test voltage 1000 (V DC, 1 min) wire/wire and wire/shield POE class PoE according to IEEE802.3af PoE+ according to IEEE802.3at4 PPoE according to IEEE802.3bt Bandwidth 500 MHz Transmission 10 Gbit Connector IEC 60603-7-51
