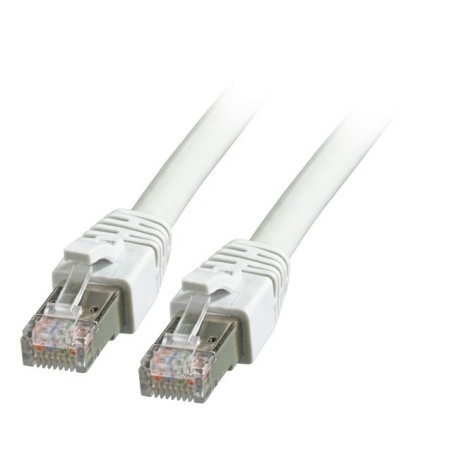

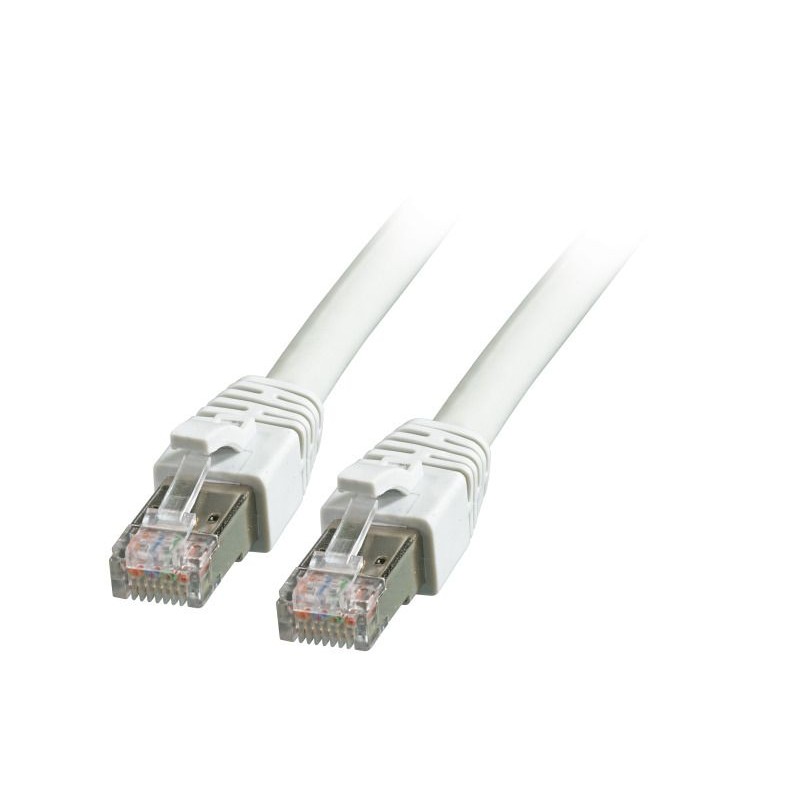

Patch cable RJ45, CAT8.1 2000Mhz, 10m, gray, S-STP(S/FTP), BC, LSZH,
Patch cable RJ45, CAT8.1 2000Mhz, 10m, gray, S-STP(S/FTP), BC, LSZH,
Patch cable RJ45, CAT8.1 2000Mhz, 10m, gray, S-STP(S/FTP), BC, LSZH,
*Order-related, cannot be canceled*, article information The Cat.8.1 patch cable is suitable for 25GBASE-T and 40GBASE-T applications based on RJ45. The Cat.8.1 has a frequency range of up to 2000MHz and a maximum transmission distance of currently 30m. Cable: S/FTP 4x2xAWG24/7 Sheath material: LSZH Outer diameter: 8mm Transmission standards: 25Gbit, 40Gbit
Product properties Category 8.1 Connector type connection 1 RJ45 8(8) Connector type connection 2 RJ45 8(8) Connector type RJ45 Standard Pin assignment 1:1 Assignment according to TIA/EIA 568B Version Shielded Length imprint Yes Bend protection sleeve moulded on Color of bend protection sleeve grey Locking lever protection Yes Mating cycles =750 Bending radius >40 mm Shield contacting Point shield contact Cable construction S/FTP Cable construction 4x2 AWG-Cross-section/strands per core 24/7 Conductor material copper Sheath material LSZH Sheath color grey Cable imprint CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801 Outer diameter of the cable 8 mm Impedance 100 ±15 O Insulation resistance 10 MO Contact resistance 5 mO Bandwidth 2000MHz
Details about Patch cable RJ45, CAT8.1 2000Mhz, 10m, gray, S-STP(S/FTP), BC, LSZH,
Manufacurer:
K5528GR.10
Weight:
0.640000
Storage:
Zentrallager
