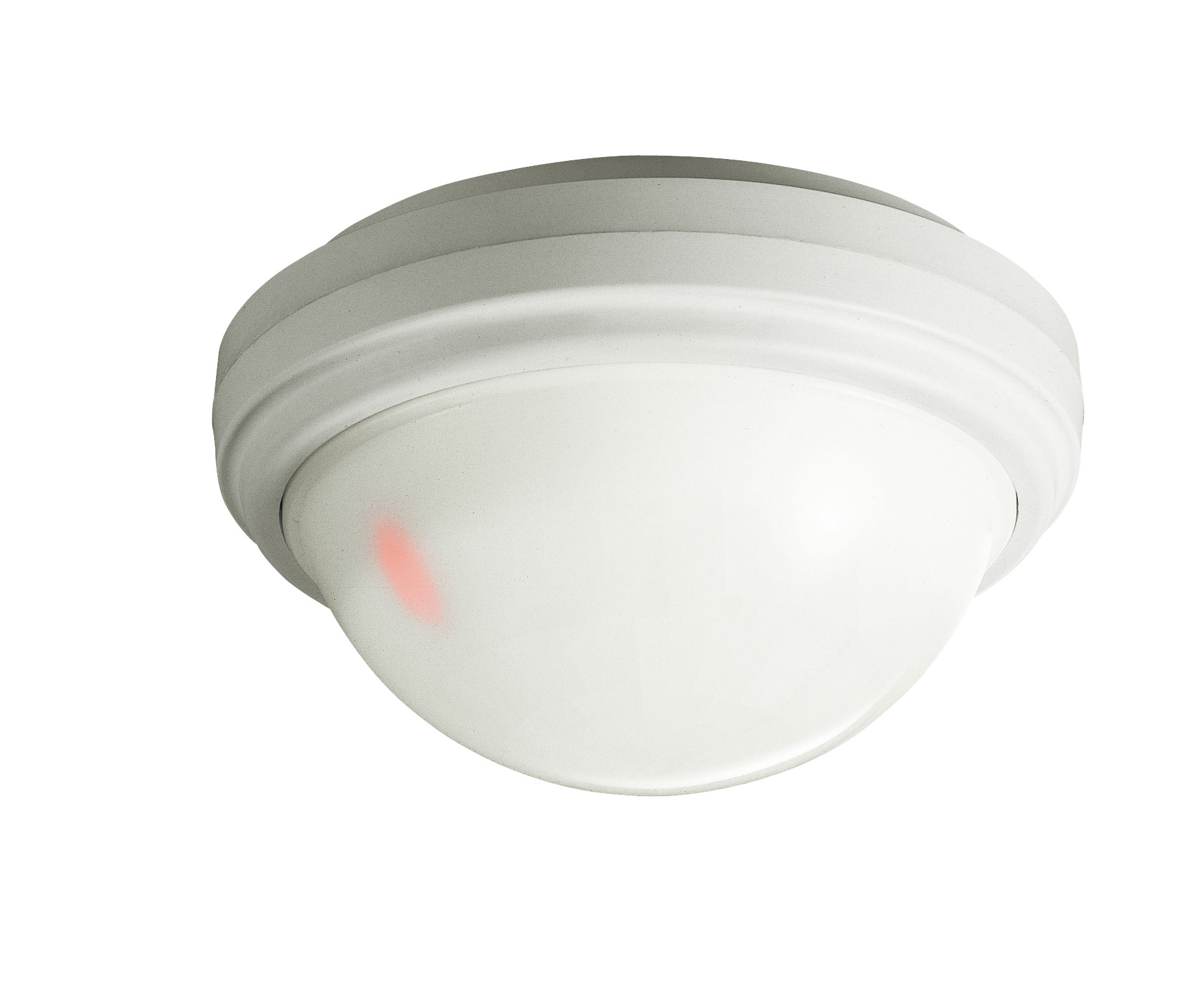

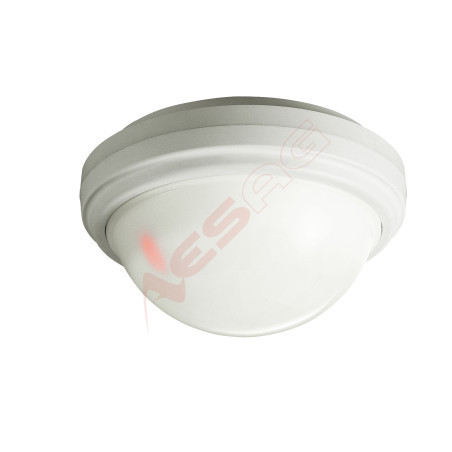

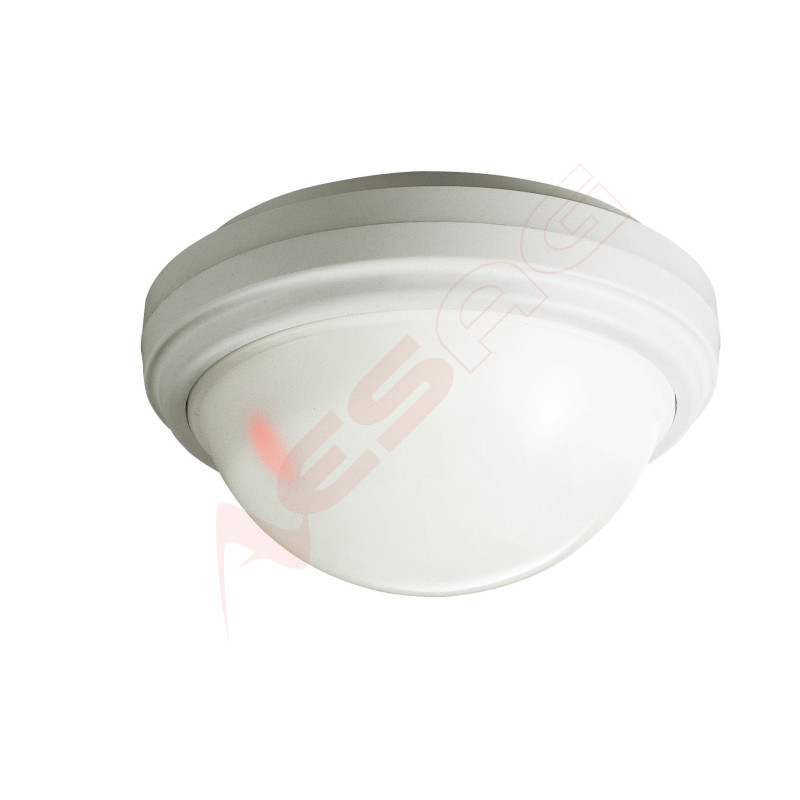

OPTEX - Motion detector PIR, 360°
- motion detector
- Application area: Indoor
- Detection range: 18 m
- Sensor type: PIR sensor
OPTEX - Motion detector PIR, 360°
The SX-360 model's unique zoom system makes it one of the most flexible motion detectors available on the market today. The 276 high-density zones provide a circular detection range of 18 m at any installation height from 2.4 to 5 m with no blind spots. The compact design of the SX-360 makes it a perfect motion detector for all types of applications - residential and commercial, large and small.
Zoom function/pattern adjustment
The angle of the detection pattern can be adjusted variably. The special lenses can be adjusted up and down by rotating the housing cover of the zoom mechanism. The angle adjustment can provide a detection range of 18m with a 360-degree field of view at any ceiling height up to 5m and high-accuracy detection performance.
Extremely high density
Provides an extremely high density detection area with no less than 276 detection zones, eliminating blind spots with a wide detection range of 18 m.
Product features:
- Patented multifocus lens
- False alarm protection
- Pattern recognition
Technical data:
- Patented multi-focus lens
- Temperature compensation
- Alarm memory (SX-360 ZV only)
- Double conductive shielding (SX-360 ZV only)
- Number of PIR beams: 276
- Detection range: 18m at 360°
- Installation height: 2.4 – 4.8m
Scope of delivery:
- 1x Optex SX-360 Z motion detector PIR 360°
