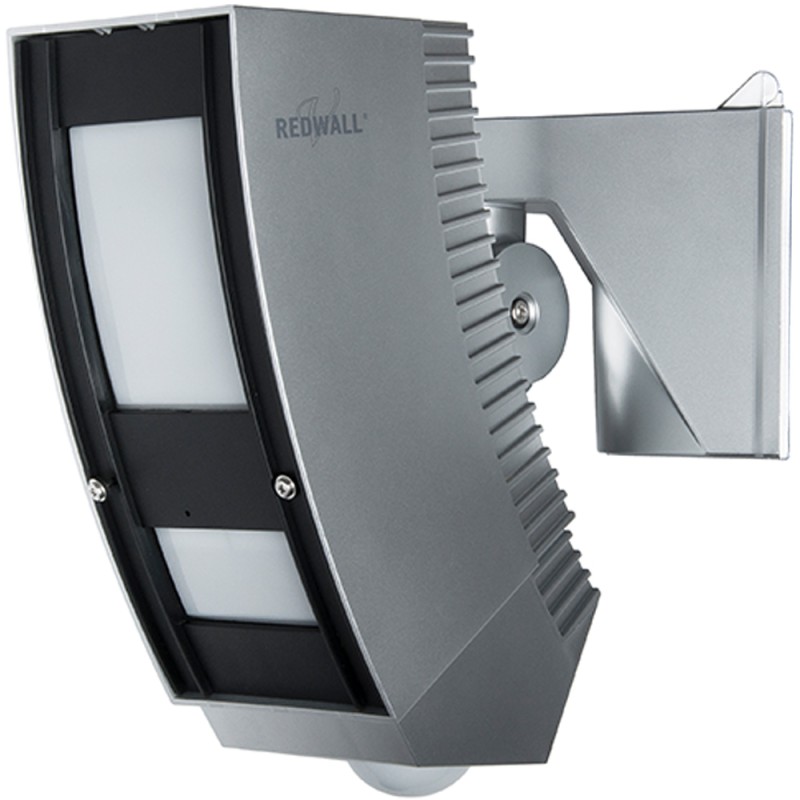

Optex PIR-Außenmelder, 50 x 30 m, IP65, NDAA, grau

Precise outdoor motion detector for large surveillance areas

The SIP-5030 is a powerful PIR motion detector for outdoor areas with a detection range of 50 x 30 metres. Three separately controllable zones enable targeted triggering of PTZ or fixed cameras - ideal for protecting extensive outdoor areas.

Product features:

• Triple zone detection for targeted video triggering: Far, near and under-creep zones can be set independently and activate defined camera positions for optimum monitoring.
• Robust design for outdoor use: Weatherproof to IP65 and vandal-proof thanks to polycarbonate housing with integrated tamper detection.
• Easy integration with flexible connection options: Multiple output signals for alarm, tampering and diagnostics enable versatile system connection.

Technical features:

Detection: Passive infrared
Detection area: 50 x 30 m + creep zone (up to 9 x 6 m at 4 m mounting height)
Number of zones: 100 (including 36 for creep zone)
Sensitivity: 4-stage adjustable (separately for each zone)
Power supply: 11-26 VDC, 22-26 VAC/DC (optionally with heating)
Current consumption: max. 45 mA (12 VDC), max. 425 mA (24 VAC with heating)
Alarm duration: approx. 2 seconds
Outputs: Alarm, DQ switching, sabotage (N.C., 28 VDC)
Protection class: IP65 (main unit), IP55 (frame)
Mounting height: 2.3 - 4 m

The SIP-5030 offers professional outdoor surveillance with reliable detection and robust construction - an ideal addition to high-quality security concepts.
