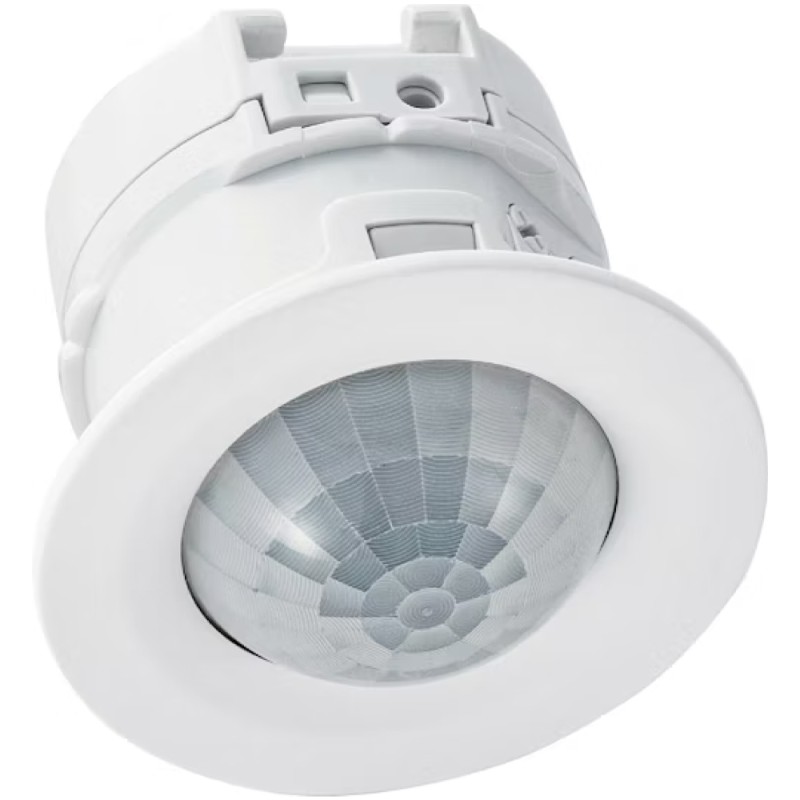

PIR motion detector, ceiling, 6m/360°, white, flush-mounted

Article Nr AP-360B(C)
All-round detection: 360° detection area with Ø6 m at 4.5 m mounting heightCustomisable sensitivity: Three PIR levels (high / medium / low) for targeted motion detectionTamper contact: Reports housing opening directly to the alarm centre
51.55
Tax included
Item in Stock
Stock 4 Items

PIR motion detector, ceiling, 6m/360°, white, flush-mounted

360° ceiling-mounted PIR detector for unobtrusive indoor surveillance

The AP-360B is a retractable PIR motion detector with 360° all-round detection for indoor use. Ideal for discreet ceiling mounting, it offers volumetric detection in a radius of up to 6 m - perfect for centralised room monitoring. Thanks to the integrated light control option and adjustable sensitivity, it is suitable for a wide range of applications in residential and commercial properties.

Product features:

  • 360° all-round monitoring: Detection radius of Ø6 m at a mounting height of up to 4.5 m - ideal for centralised positioning in rooms.
  • Unobtrusive ceiling mounting: Compact design for flush installation in ceilings.
  • Integrated light control: Optional brightness sensor for light control based on ambient lighting (20 - 320 lux).
  • Flexible configuration: Adjustable sensitivity (high, medium, low) and variable alarm cycle (2 - 120 seconds).
  • Tamper protection & clear LED signalling: Tamper contact and LED display for operating status and alarm.

Technical features:

  • Detection method: Passive infrared (PIR)
  • Detection area: Ø6 m at a height of 4.5 m
  • Installation height: 2.5 - 4.5 m
  • Power supply: 9.5 - 16V DC
  • Current consumption: 11 mA (standby), max. 13 mA
  • Alarm output: NO/NC, 28V DC, 200 mA
  • Tamper contact: NC, 28V DC, 100 mA
  • Operating temperature: -20 to 50 °C
  • Humidity: < 95 %
  • Dimensions: Ø52 x 42.5 mm


A versatile 360° PIR detector for area-based indoor surveillance - discreet, reliable and intelligently expandable.

Details about PIR motion detector, ceiling, 6m/360°, white, flush-mounted

01-Gehäusefarbe Weiss
GERÄTETYP PIR-Melder
Montageart Unterputz / Einbau
Detektionsart PIR
Verbindung Verdrahtet
Category Motion detectorBrand OptexReference AP-360B(C)In stock 4 ItemsDelivery Time Delivery within 24 hoursCondition New

Manufacurer:

AOP-AP-360B

Weight:

0.000000

Storage:
