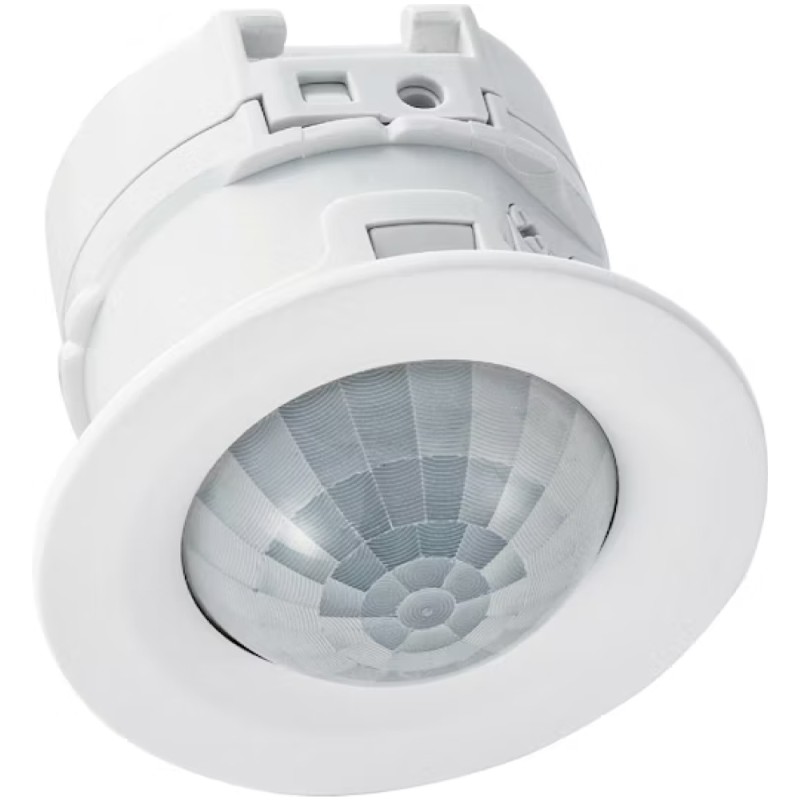

PIR motion detector, battery-operated, ceiling, 6m/360°, white, flush-mounted,

Battery-operated 360° PIR detector for discreet ceiling mounting

The AP-360BR is an unobtrusive, battery-operated 360° PIR detector for recessed ceiling mounting. It is ideal for wide-area monitoring of indoor areas with centralised detection. Its compact design, low power consumption and programmable power-saving mode make it the ideal choice for wireless installations.

Product features:

• 360° all-round detection: Volumetric detection area with Ø6 m at a mounting height of up to 4.5 m - ideal for centrally positioned monitoring in rooms.
• Battery-operated with energy-saving mode: Long runtime thanks to CR123A battery with selectable sleep timer (5 s / 120 s).
• Compact design: For flush ceiling mounting - particularly unobtrusive indoors.
• Flexible sensitivity: Three PIR levels (H/M/L) to adapt to different environments and movement patterns.
• Secure thanks to tamper protection: Housing opening is reliably detected via integrated tamper sensor.

Technical features:

• Detection method: Passive infrared (PIR)
• Detection area: Ø6 m at 4.5 m mounting height
• Mounting height: 2.5 - 4.5 m
• Power supply: 2.7 - 3.6V DC (CR123A battery)
• Current consumption: 10 μA (standby), max. 4 mA
• Alarm output: NO/NC, 3.6V DC, 10 mA
• Tamper contact: NC, 28 VDC, 100 mA
• Temperature range: -20 to 50 °C
• Humidity: < 95 %
• Dimensions: Ø52 x 42.5 mm

An efficient and wireless 360° motion detector - ideal for centrally positioned, area-wide room monitoring without visible technology.
