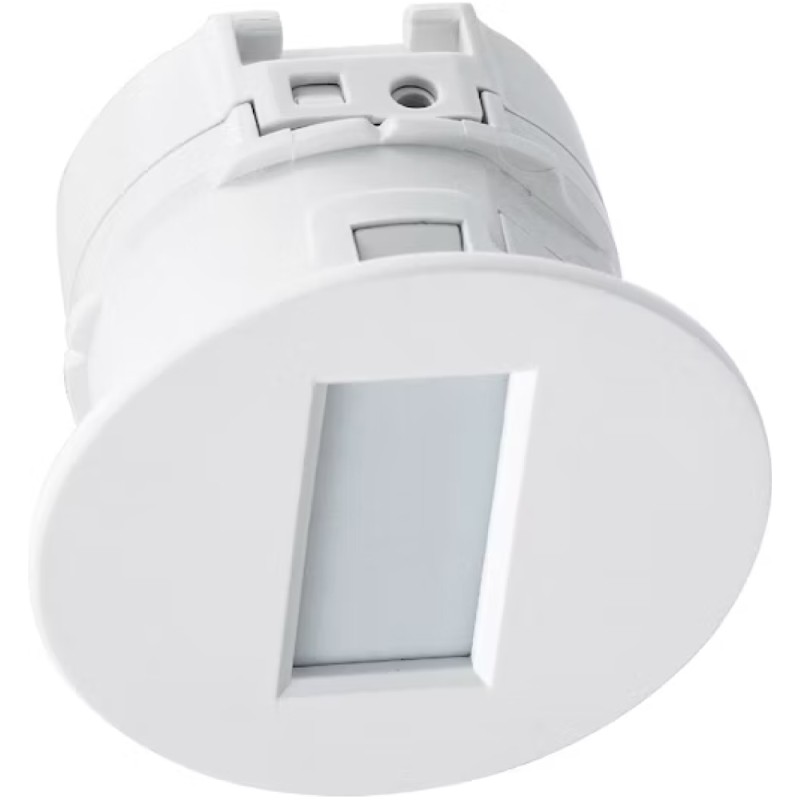

PIR motion detector, curtain, 6 x 1/6 x 4.5 m, white, flush-mounted
PIR motion detector, curtain, 6 x 1/6 x 4.5 m, white, flush-mounted
Compact curtain PIR detector for discreet ceiling or wall mounting
The AP-20NB is an unobtrusive, retractable PIR motion detector for indoor use. With a narrow curtain detection area, it is ideal for targeted monitoring of corridors, window fronts or passageways. Thanks to its compact design and multiple mounting options, the detector can be discreetly integrated into any environment.
Product features:
- Targeted curtain monitoring: 6 x 1 m (ceiling) or 6 x 4.5 m (wall) detection area - ideal for narrow zones and passageways.
- Flexible mounting options: Installation in ceiling or wall - ideal for discreet installations.
- Adjustable sensitivity: Three PIR sensitivity levels (high, medium, low) for customisable behaviour depending on the application.
- Tamper protection included: tamper contact reports housing opening - additional security against unauthorised access.
- Reliable alarm triggering: LED display on alarm, potential-free relay output (NO/NC) for simple connection to alarm control centres.
Technical features:
- Detection method: Passive infrared (PIR)
- Mounting height: 1 m, 1.5 m, 2.5 - 4.5 m
- Detection range: up to 6 m, depending on mounting method
- Power supply: 9.5 - 16V DC
- Current consumption: 11 mA (standby), max. 13 mA
- Alarm output: NO/NC, 28V DC, 200 mA
- Tamper contact: NC, 28V DC, 100 mA
- Operating temperature: -20 to 50 °C
- Dimensions: Ø52 x 35.5 mm
A discreet and reliable motion detector for precise indoor monitoring - ideal for modern security solutions that require unobtrusive integration.
Details about PIR motion detector, curtain, 6 x 1/6 x 4.5 m, white, flush-mounted
| 01-Gehäusefarbe | Weiss |
|---|---|
| GERÄTETYP | PIR-Melder |
| Montageart | Wand |
| Detektionsart | PIR |
| Verbindung | Verdrahtet |
