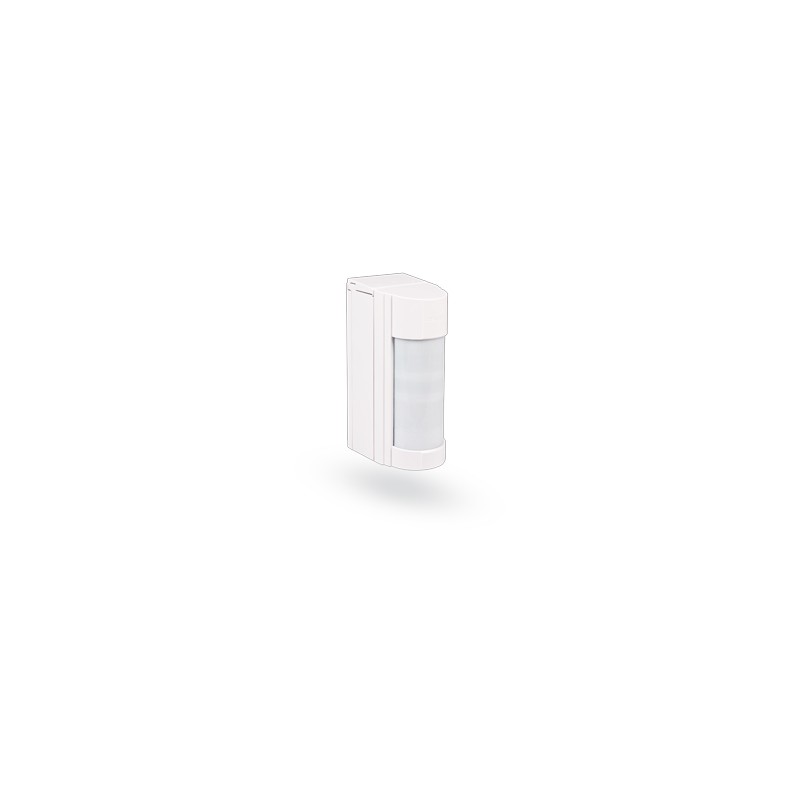

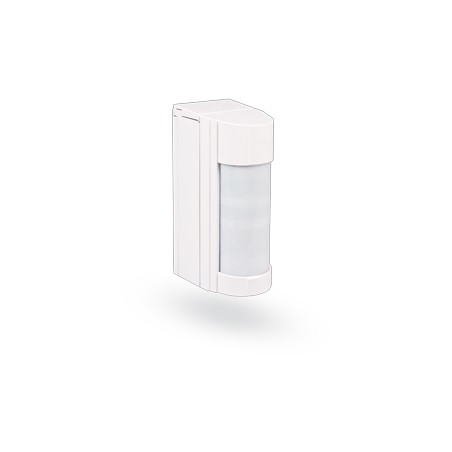

Dual PIR/PIR outdoor detector VXI-ST

The Optex VXi-ST is a wired outdoor motion detector with dual PIR technology that has been specially designed for precise motion detection at close range. With a detection range of up to 12 meters and a horizontal detection angle of 90°, the sensor is ideal for monitoring entrance areas, facades, terraces, garden paths or fences.

Thanks to its specially developed detection optics, the VXi-ST reliably detects people, while smaller animals, moving branches or other environmental influences are largely ignored. The integrated SMDA logic (Super Multi-Dimensional Analysis) analyzes movement patterns and environmental conditions in real time, thereby significantly reducing false alarms.

The VXi-ST is characterized by a weatherproof housing with IP55 protection and is suitable for use in a wide range of climatic conditions. The flexible mounting height of 0.8 to 1.2 meters and the user-friendly adjustment elements make installation particularly easy and precise.

Product highlights

• Dual PIR technology for reliable and precise motion detection
• 90° detection area with a range of up to 12 m
• SMDA logic to reduce false alarms caused by environmental influences
• Pet immunity:
• Reduces false alarms caused by small animals
• Weatherproof design for year-round outdoor use (IP55)
• Sensitivity and detection range can be flexibly adjusted
• Internal spirit level for exact horizontal alignment
• Tamper-proof design with tamper contact
• Ideal for private properties, commercial buildings and driveways

Technical data

• Detection range: 2.5 / 3.5 / 6 / 8.5 / 12 m (adjustable)
• Detection angle: 90° horizontal
• Detection zones: 82 zones
• Mounting height: 0.8 - 1.2 m
• Sensor principle: Dual PIR
• Power supply: 9.5 - 18 V DC
• Power consumption: max.
• approx. 15 mA
• Alarm output: NC/NO relay (max. 28 V DC, 0.1 A)
• Tamper contact:
• NC contact (cover contact)
• SMDA logic: integrated
• Protection class: IP55
• Operating temperature: -20 °C to +60 °C
• Dimensions: approx. 180 × 70 × 95 mm
• Weight: approx. 420 g

Scope of delivery

• 1 × Optex VXi-ST motion detector 1
• × Mounting material (screws and dowels) 1
• × Cover plate set for adjusting the detection area 1
• × Operating instructions

The VXi-ST offers a reliable outdoor monitoring solution for a wide range of applications - compact, powerful and precisely tuned to the close range. Ideal for securing buildings, paths and entrances.
