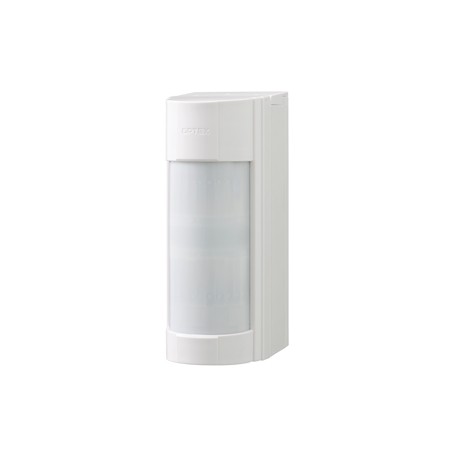

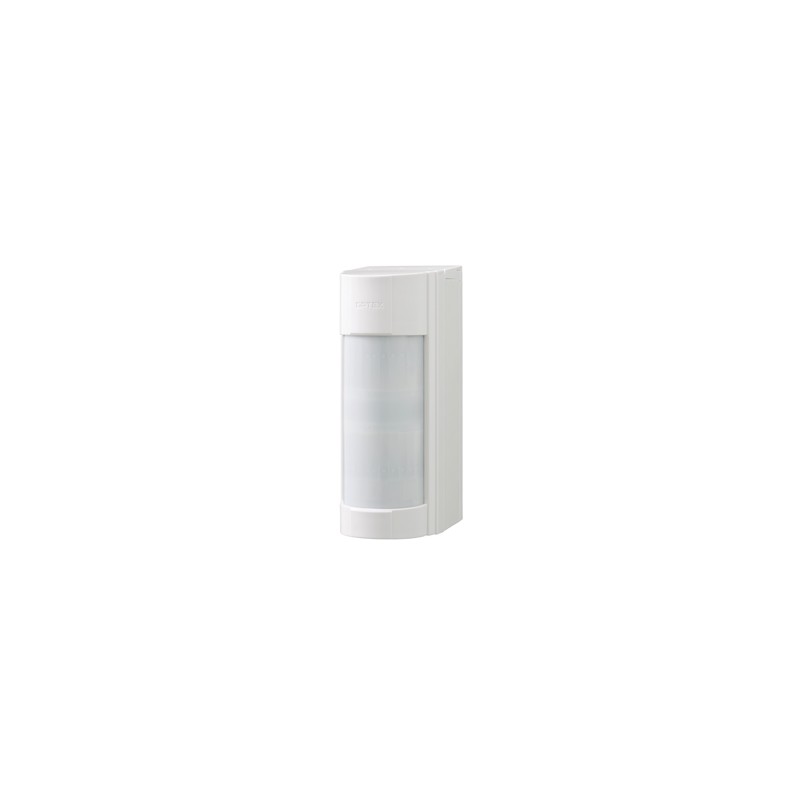

Dual PIR/PIR outdoor detector VXI-RAM

The VXI-RAM is a high-quality, battery-operated outdoor motion detector with integrated PIR and microwave technology. Developed for professional outdoor use, it impresses with its precise motion detection, high reliability and effective sabotage detection thanks to the active IR anti-masking function. The sensor is ideal for monitoring facades, driveways, garden areas and property boundaries.

The integrated SMDA logic (Super Multi-Dimensional Analysis) intelligently analyzes movement patterns and reliably filters out interference from wind, rain, light reflections or small animals - this ensures a significant reduction in false alarms. Thanks to the purely passive alarm output, the VXI-RAM can be universally integrated into wired alarm systems.

The outdoor motion detector is weatherproof (protection class IP55), low-maintenance and can be installed quickly and easily thanks to its color-coded operating elements, integrated spirit level and flexible adjustment options.

Product highlights

• Dual technology: PIR + microwave for precise detection
• Battery-powered outdoor detector - ideal for locations without a power supply
• Active anti-masking function - protection against sabotage and tampering
• SMDA logic:
• Minimizes false alarms in wind, weather or light changes
• Pet immune when mounted correctly (under 1.2 m)
• Adjustable range in 5 steps up to 12 m
• Easy setup thanks to integrated spirit level and clear scales
• Robust housing with IP55 protection class
• Perfect for private and commercial outdoor security

Technical specifications

• Article number: VXI-RAM
• Detection range: 2.5 / 3.5 / 6 / 8.5 / 12 m (adjustable)
• Detection angle: 90°
• Mounting height: 0.8 - 1.2 m
• Sensor technology: Dual PIR + microwave (10.525 GHz)
• Power supply: 3 - 9 V DC (battery-operated)
• Compatible batteries:
• CR123A, CR2, ½ AA lithium or alkaline
• Power consumption: Standby 18 μA, max. 8 mA
• Alarm output: potential-free relay contact (NO/NC)
• Antimasking: Active (infrared-based)
• Tamper contact:
• NC contact, signals cover removal
• Operating temperature: -20 °C to +60 °C
• Protection class: IP55
• Dimensions: approx. 199 × 82 × 99 mm
• Weight: approx. 550 g

Scope of delivery

• 1 × VXI-RAM outdoor motion detector 1
• × mounting kit (screws, wall plugs) 1
• × cover plate set for adjusting the detection area 1
• × operating instructions

The VXI-RAM is the perfect solution for anyone who needs a tamper-proof, weather-resistant and precise outdoor motion detector - whether for a private garden, driveway or commercial property.
