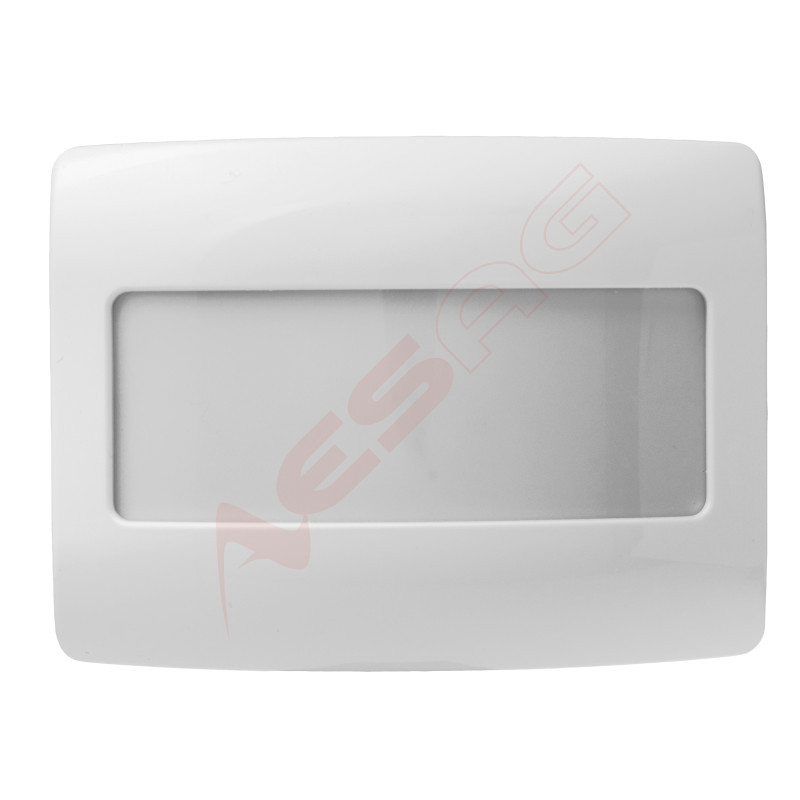

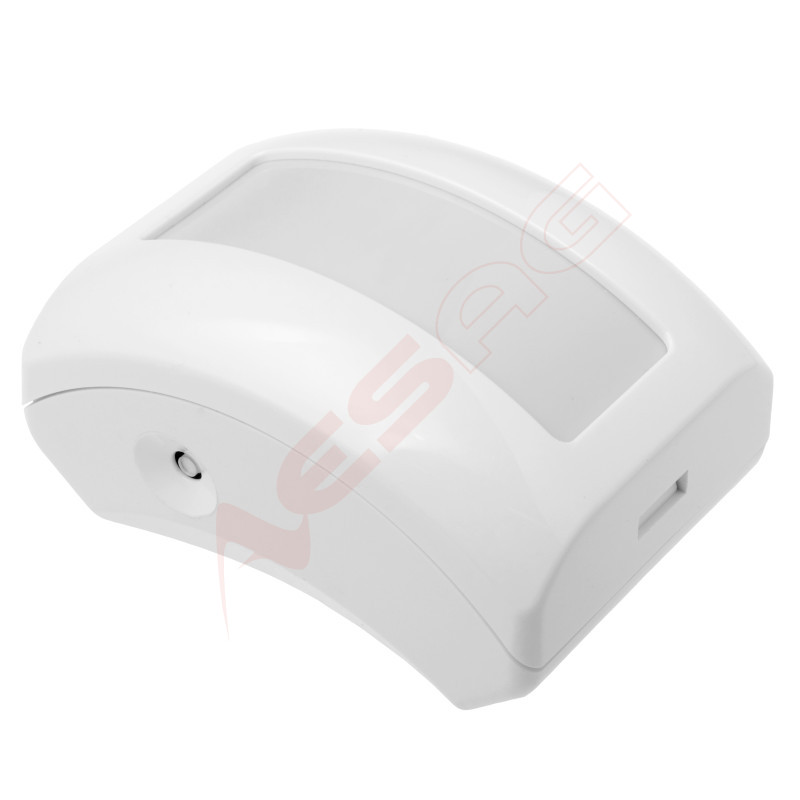

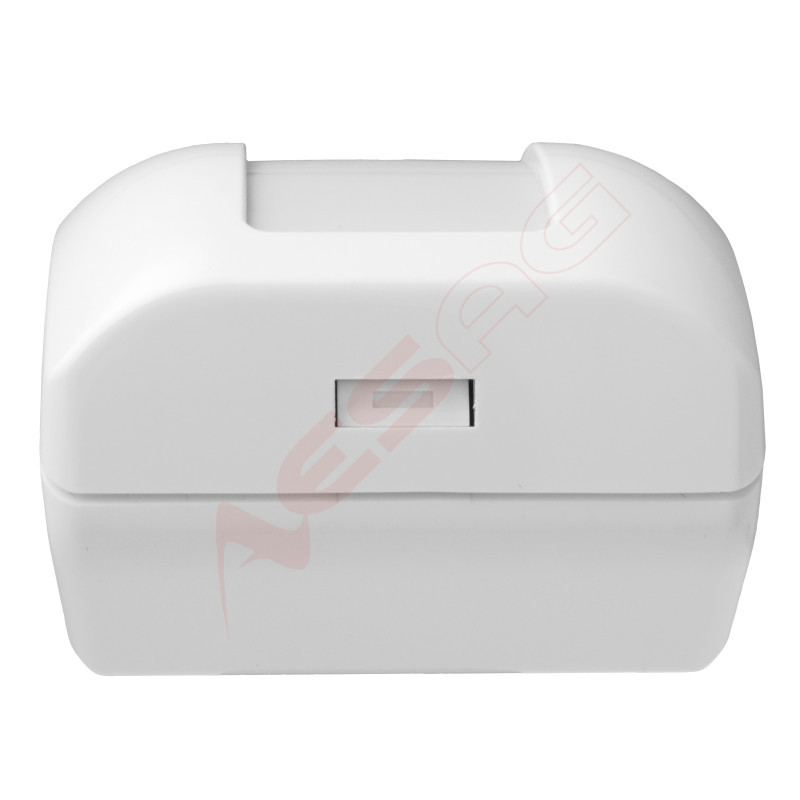

LUPUS - Line motion detector - SET of 3

Set of 3 wireless motion detectors with only 10° detection angle for the LUPUSEC Smarthome alarm system

Protect yourself against break-ins with the line motion detector. The detector, which functions like an invisible light barrier, detects warm bodies moving at a distance of up to 10 meters. The very narrow detection range of just 10° is like a light barrier and is ideal for protecting roof windows, passageways or window fronts. If a burglar moves through the narrow, invisible "infrared light beam" of the line motion detector, the alarm is triggered immediately and you are immediately notified by mobile. This is how you effectively secure your home. If you install the sensor rotated 90° below a roof window or roof hatch, it is impossible to break in unnoticed through this opening. Whether in the living room, bedroom, office or shop - with the line motion detector you can protect yourself professionally against break-ins. The wireless motion detector is battery-operated, wireless and therefore easy to install. With the push of a button on the device, you can network the sensor with your smart home alarm system. The battery has a long service life of approx. 3.5 years. When the battery level is low, the system will automatically notify you.

Quickly integrated - easily automated.

Once integrated into the system, the line motion detector reports any change in status to the alarm system.

This includes a status message when the battery is low, when the tamper contact is triggered and when movements are detected. You can use the latter for numerous automations: for example, do you want the light to switch on automatically when you enter the bathroom only at night? No problem - such rules can be created in no time at all using the intuitive web interface.

Extensively expandable - the LUPUS product universe:

A wide range of accessories is available for the SmartHome alarm system. This means that door and window sensors, IP cameras, motion detectors, door locking elements, roller shutter relays, heating controls and much more can be connected to your Smarthome alarm system with just a few clicks and controlled automatically via the control center.

Product Highlights:

• Narrow detection range of only 10°
• Reliably detects all moving objects using thermal radiation
• Radio connection (approx. 30-100 meters range)
• Small, modern housing
• Tamper detection
• Status transfer
• Alert in case of alarm via the control center via SMS, (phone call), email and contact ID

Technical data:

• Horizontal detection angle: 10°
• Dimensions: 76 x 56 x 43mm (DxWxH)
• Weight: 0.08kg
• Detection method: Thermal field measurement up to max. 10m
• Sensor type: PIR, passive infrared (angular field measurement)
• Tamper detection: Yes, opening contact
• Tamper indication of the sensor in the control panel: Yes
• Status monitoring by the central office: Yes
• Status display in the control center: Yes
• Battery indicator in the control panel: Yes
• Battery status monitoring in the control center: Automatic
• Radio frequency: 868.35 MHz
• Radio power: max. 10mW
• Transmission range: Approx. 30 to 100 meters (depending on local conditions)
• Modulation: FM

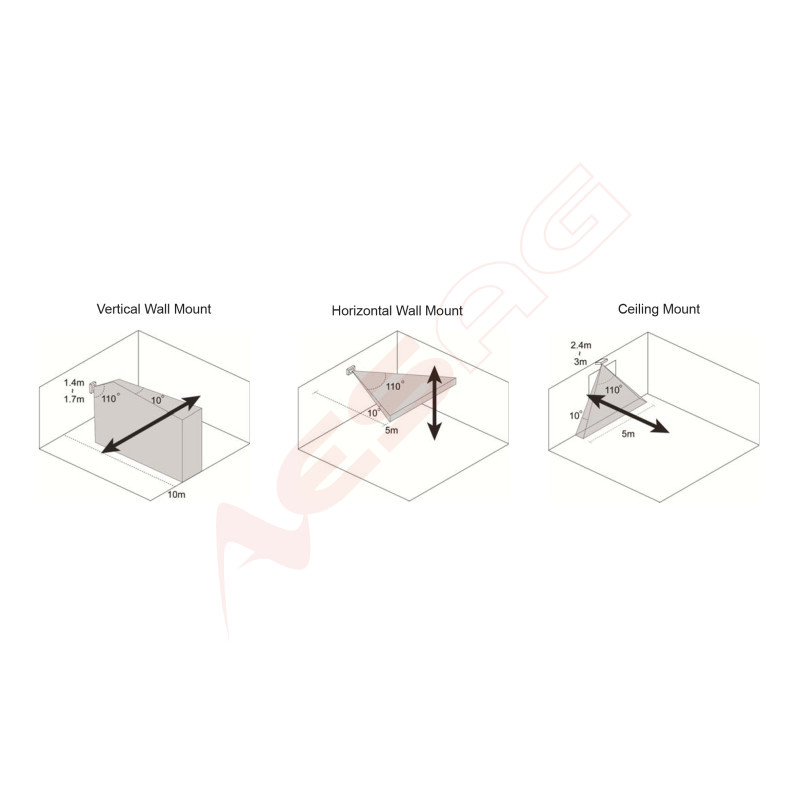

• Mounting options: horizontal or vertical
• Power supply: 3V lithium battery (CR123)
• Average battery life: approx. 3.5 years (with an average of 20 activations per day)
• Installation location: Walls, in corners, Indoor only
• Certified according to: EN 50131 Grade 2
• Compatible with XT Central: XT1, XT1 Plus, XT2, XT2 Plus, XT3

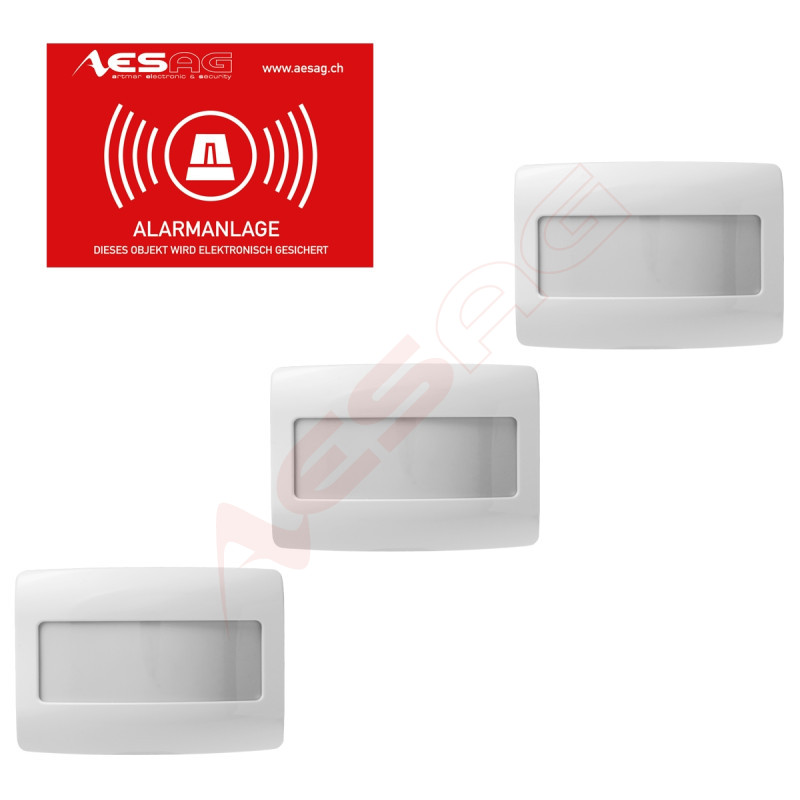

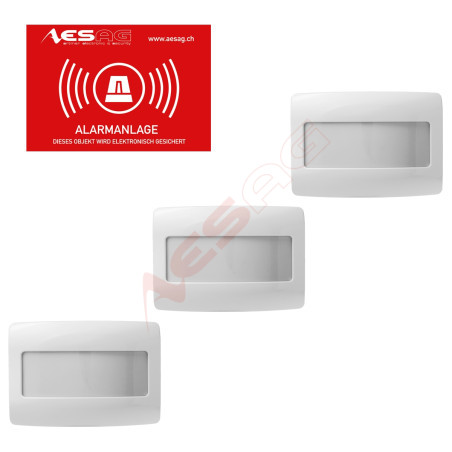

Scope of delivery:

• 3x LUPUSEC line motion detector, 12110
• 3x battery
• 3x screws and dowels
• 3x manual
• 1x sticker alarm
