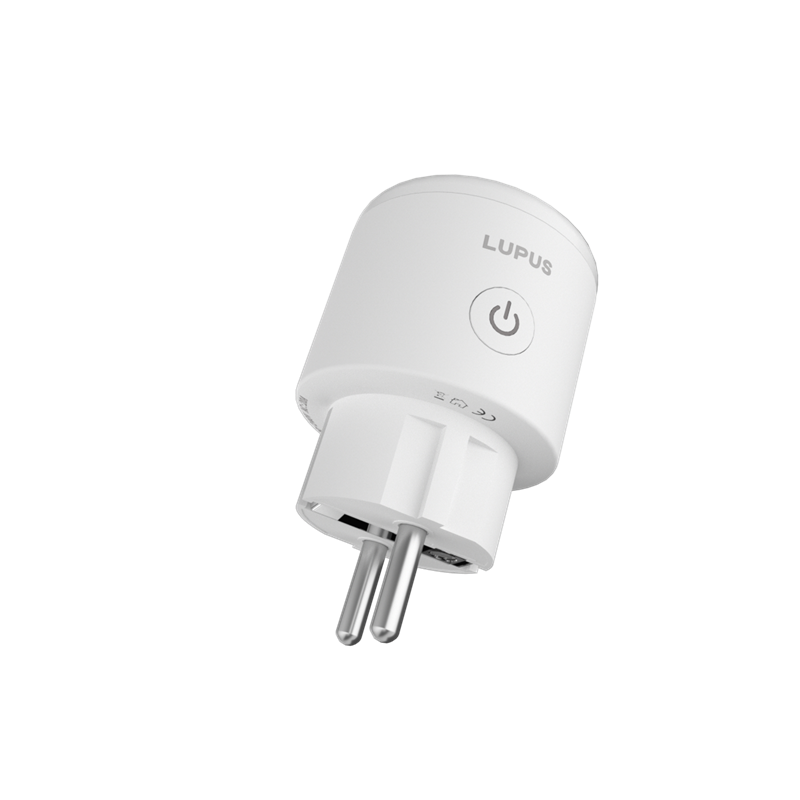

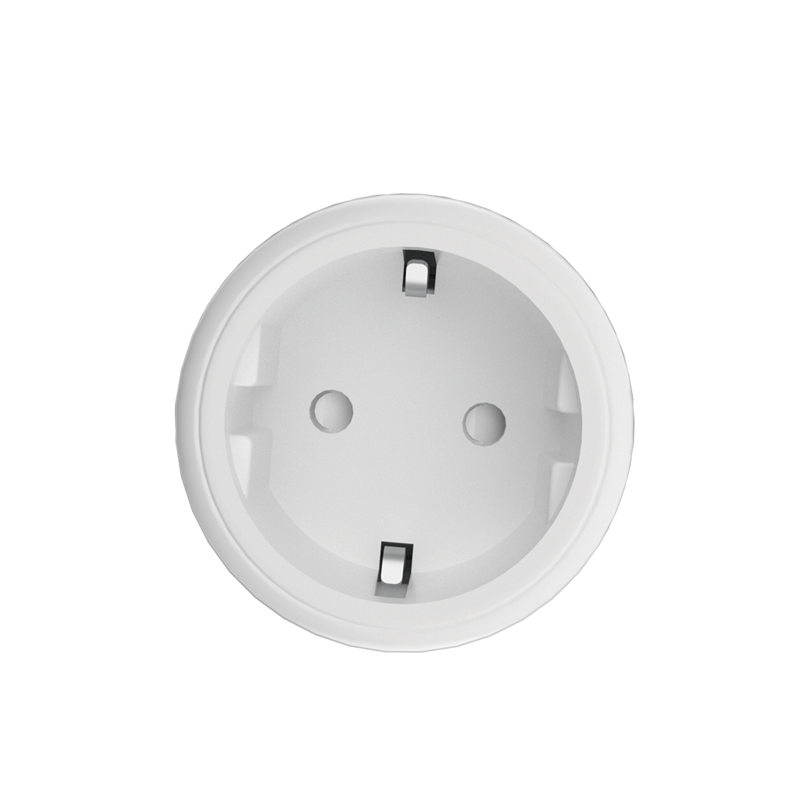

LUPUS | "Mini-Plug" adapter plug

The smart switching assistant for the home: The LUPUS Mini Plug.

Switch on the coffee machine in the morning before you get up. In the evening, illuminate your home for security, even if you are not at home: With the LUPUS - Mini Plug, electrical devices such as lamps, coffee machines or radios can be easily integrated into your home control system. There are many possible applications: For example, you can configure the socket so that the connected loads (e.g. stand-by devices) are switched off when the alarm system is armed and supplied with power again when the alarm system is deactivated. These smart home functions allow your property to save electricity intelligently while you are away. It is also possible to activate/deactivate the socket remotely using your smartphone, for example.

Product features:

Technical specifications

• Dimensions: 51 × 51 × 82 mm (W × D × H)
• Weight: approx. 0.09 kg
• Detection method: -
• Sensor type: -
• Tamper monitoring: No
• Tamper display in the control panel: No
• Status display: Yes, LED on the front
• Status monitoring by control panel: Yes
• Radio frequency: 2.4 GHz ZigBee 3.0
• Radio power: max. 100 mW (20 dBm)
• Transmitter range: approx.
• 30-100 m (depending on local conditions)
• Modulation: FM (SRD Category 2) Possible
• load: max. 4200 W / 20 A
• Load type: resistive load
• Power consumption in idle mode: 0.4 W (switched off), 0.9 W (switched on)
• Relay: NO contact, 1-pole, µ-contact
• Switching cycles: 40,000 (20 A, resistive load)
• Duty cycle:
• < 1 % per hour
• Operating mode: S1
• Switch type: independently mounted switch
• Protection class: IP20
• Protection class: I
• Operating principle:
• Type 1
• Compatible gateways: all ZigBee 3.0 gateways (e.g. Alexa, Google Home, etc.)
• Pollution degree: 2
• Plug type: Schuko (D)
• Power supply: 230 V / 50 Hz
• Directive-compliant: CE, FCC, RoHS
• Operating temperature / humidity: -10 °C to 45 °C, max.
• 85 % (non-condensing)
• Compatible with XT control panel: XT1 Plus, XT2 Plus, XT3, XT4
