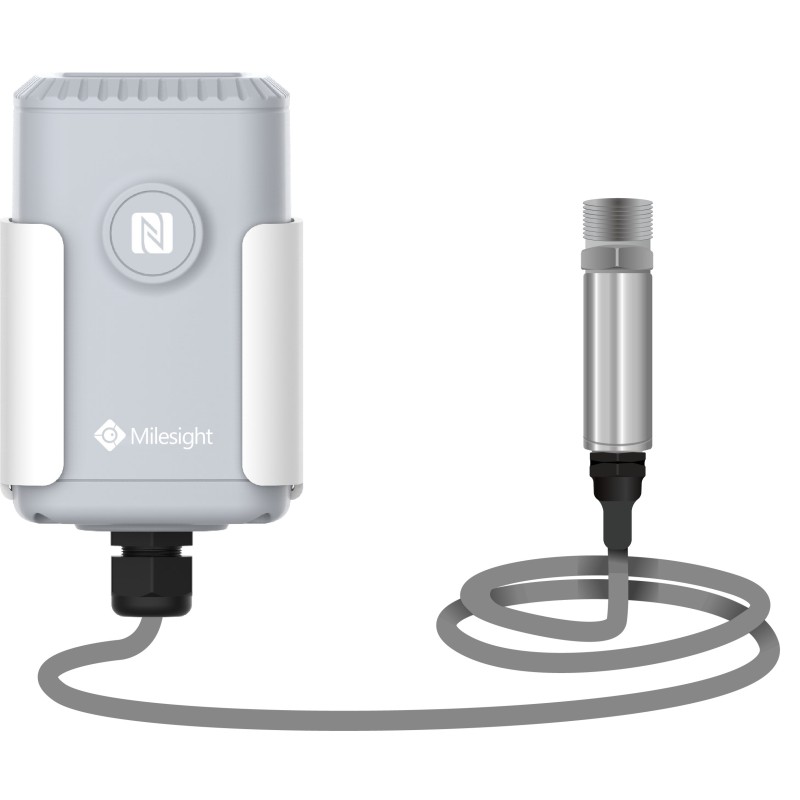

Milesight EM500-PP LoRaWAN pipe pressure sensor for industrial applications

The Milesight EM500-PP is a high-precision pipe pressure sensor for continuous monitoring of liquid or gas pressure in industrial pipelines. Thanks to LoRaWAN® technology, it transmits the measured values wirelessly and energy-efficiently over long distances - ideal for smart industry, smart cities and supply networks. The robust IP67 housing and the optional different pressure ranges make it perfect for demanding environments.

Product highlights:

• High-precision pressure measurement (gauge or absolute pressure)
• Various pressure ranges available (e.g. 0-1 bar, 0-10 bar, 0-100 bar)
• Wireless communication via LoRaWAN® (EU868)
• IP67 housing for outdoor use and industrial applications
• Robust stainless steel sensor (304/316L) for maximum durability
• Long battery life (up to 10 years depending on transmission interval)
• Compatible with Milesight IoT Cloud, TTN, Helium &amp other platforms

Technical data:

• Model: EM500-PP-868M
• Measuring range: depending on variant (e.g. 0-10 bar, 0-100 bar)
• Accuracy: ±0.5 % FSR (typical)
• Pressure connection: G1/2" external thread (stainless steel 304/316L)
• Communication: LoRaWAN® 1.0.2 / 1.0.3, EU868
• Range: up to 10 km (free field)
• Battery: 1 × 3.6V ER26500 (replaceable, 8500mAh)
• Battery life: up to 10 years (depending on use)
• Housing protection: IP67 (waterproof &amp dustproof)
• Temperature range: -30°C to +70°C
• Dimensions: Sensor housing: approx. 105 × 71 × 69 mm
• Mounting: Direct screw connection
