MCF88 · LoRa · LoRaWAN 4-20mA/0-10V to LoRaWAN® interface
MCF88 · LoRa · LoRaWAN 4-20mA/0-10V to LoRaWAN® interface

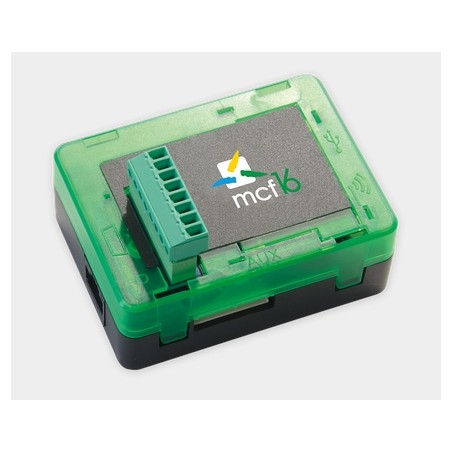

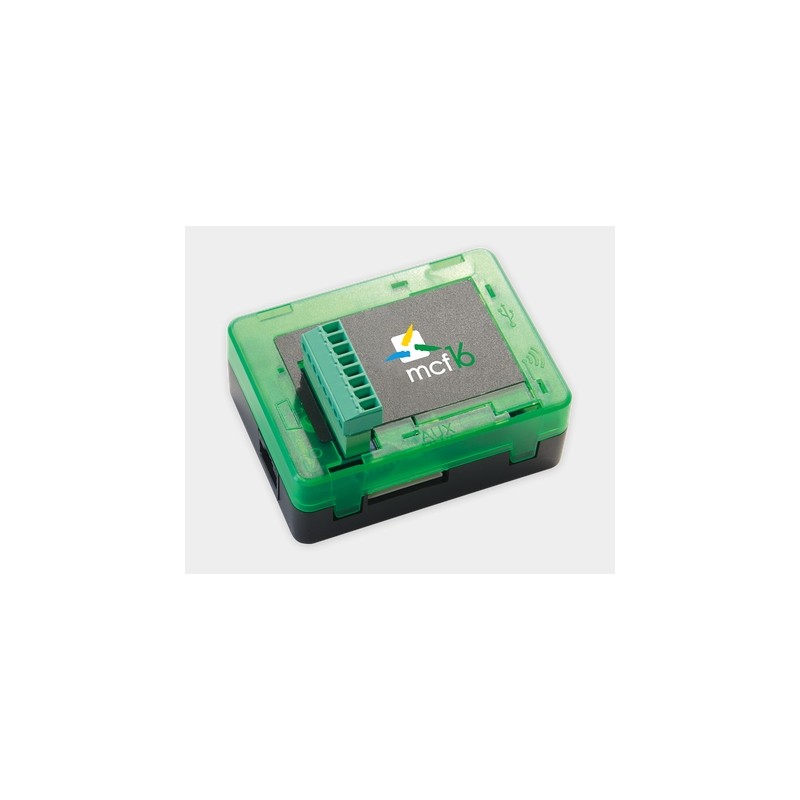

LoRa MCF88 LoRaWAN 4-20mA/0-10V to LoRaWAN® interface
This interface has two 4-20mA and two 0-10V input channels. All these inputs are opto isolated and are useful to connect any kind of analog sensor and to forward measurements to the LoRaWAN® platform.
Applications:
Remote industrial interface
Remote process supervisor
Environment monitor
Datalogger
Technical Data:
CPU Cortex M4
RTC
EEProm 32KB
Flash 1MB
Encryption AES 128 bit
LiPo rechargeable battery
Class C LoRaWAN® stack EU868, AS923
1000Vdc isolated analog inputs
2 analog current inputs 4-20mA 12bits with disconnect alarm
2 analog voltage inputs 0-10V 12bits
USB On The Go
IoT node setup ad firmware upgrade via USB interface
Power supply 10-36Vdc
Storage temperature range -20 + 80 °C
Working temperature range -10 + 70 °C
Dimensions L x H X P: 81 x 60 x 50mm
