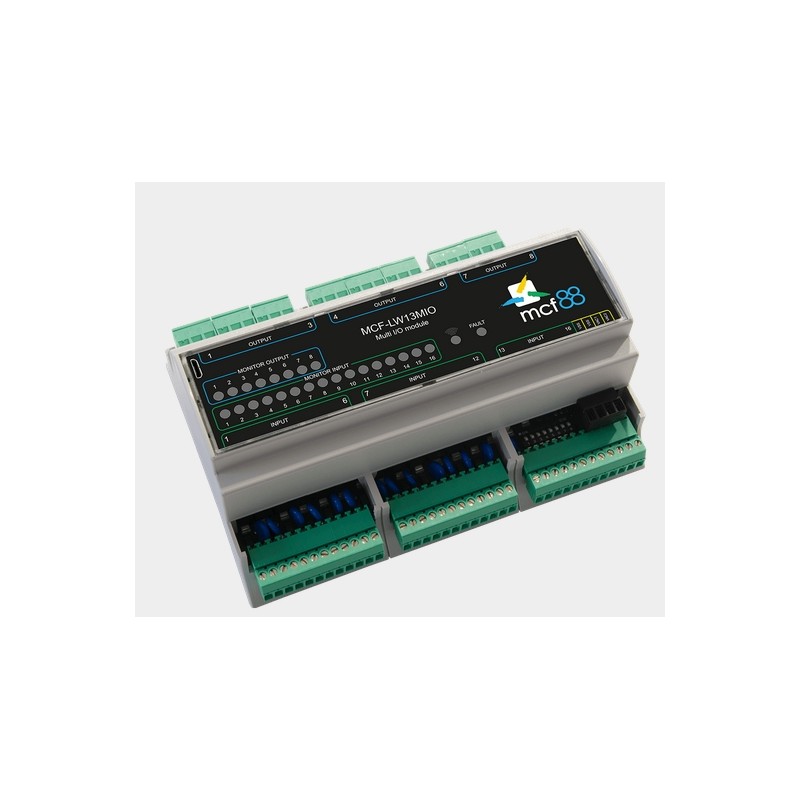

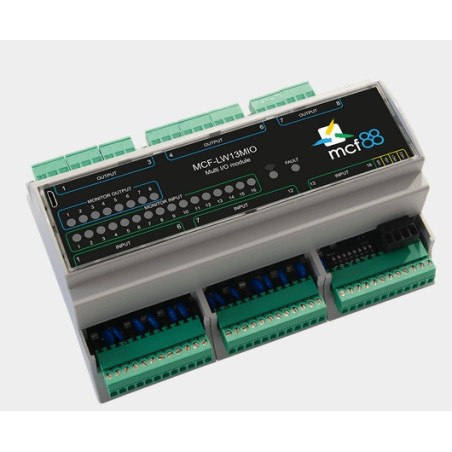

LoRa MCF88 LoRaWAN Multi Multi I/O Module
LoRa MCF88 LoRaWAN Multi Multi I/O Module
LoRa MCF88 LoRaWAN Multi Multi I/O Module
LoRaWAN® Multi I/O module
This device transmits the state of its 16 inputs and controls 8 outputs through the LoRaWAN® network. All these inputs and outputs are galvanically isolated. It can be used for industrial process control, home automation, water treatment, agriculture irrigation and similar applications.
Technische Daten:
- CPU Cortex M0 - RTC - EEProm 32KB - Flash 96KB - Encryption AES 128 bit - Class C LoRaWAN® stack EU868, AS923 - 16 opto-isolated input AC-DC, range 5-24Vac/dc - 8 relay output with COM, NO, NC contacts carrying 5Amp@230Vac - USB port for IoT node setup ad FW upgrade - CANBUS interface - Power supply 24 Vac/dc - Storage temperature range -20 + 80C° - Working temperature range -10 + 70C° - DIN (EN 60715) mounting enclosure, 9 modules
