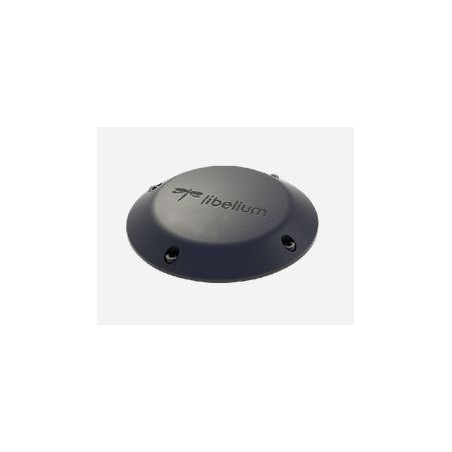

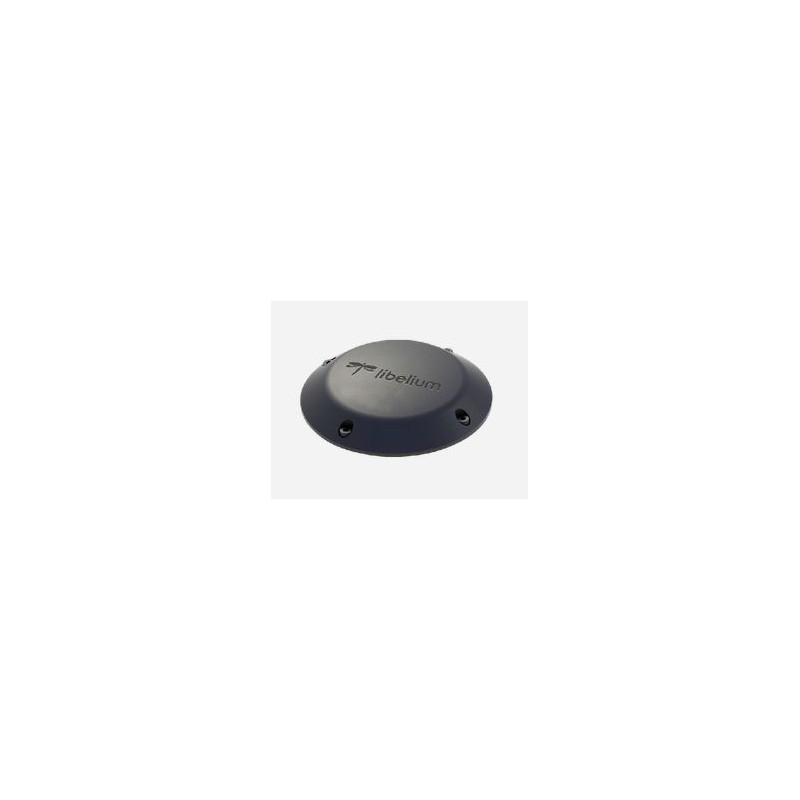

LoRa LoRaWAN Libelium IoT Sensor "Smart Parking" Sensor 868 MHz

The new Smart Parking node improves detection and stability performance thanks to a radar sensor that allows precise detection (99%) of vehicles parked above the device. When the device notices a change in the parking space status, it sends the data to the cloud via the LoRaWAN network.

Radar technology offers improved performance compared to devices equipped with magnetic or infrared detection. In addition, radar parking devices are not susceptible to magnetic interference, nor do they give false positives on vehicles parked close or in double rows. Their performance is more consistent in all lighting conditions, more stable during long-term parking and they are not affected by the proximity of traffic movements such as passing buses or heavy goods vehicles. In addition, radar parking sensors are much easier to maintain as they are not affected by dirt, dust, rain or oil spills. The supply to the junctions has been hugely improved and is now being supplied with

Default time settings and also supplied with unique LoRaWAN identifiers and keys. This allows the registration of all nodes in the LoRaWAN network server at any given time. The new smart parking platform also provides an over-the-air facility to remotely configure parameters such as sleep time, keep-alive time, night mode, etc. via the "Remote Configuration Form". This makes it possible to install the nodes directly with factory settings and then update them from the cloud. This feature reduces installation times.

___________________________________________________________________________________________

- 3 axis magnetic sensor
- Lithium battery, 3.6 V 10.4 Ah (lifetime 4 – 6 years)
- internal antenna
- 230mm diameter
- 28mm height
- -20 to + 65 °C (temperature range)
___________________________________________________________________________________________
Scope of delivery:

- Battery (non-rechargeable 10.4 Ah)
- 2 antennas
- Housing
- Rubber insulators
- 4 floor screws (temper-resistant)
- 4 ground screw anchors
