RAK Wireless WisBlock Air Quality Kit

overview

WisBlock Kit 4 Measures air quality index, temperature, humidity and barometric pressure using the BOSCH BME680 environmental sensor.

Application
WisBlock Kit 4 is used to monitor the air quality in your environment.

With the WisBlock Kit 4, you can measure the air quality index, temperature, humidity and barometric pressure. Make sure the air quality around you is suitable for your particular industry! This kit can also frequently transmit the sensed air quality to a LoRaWAN® server.

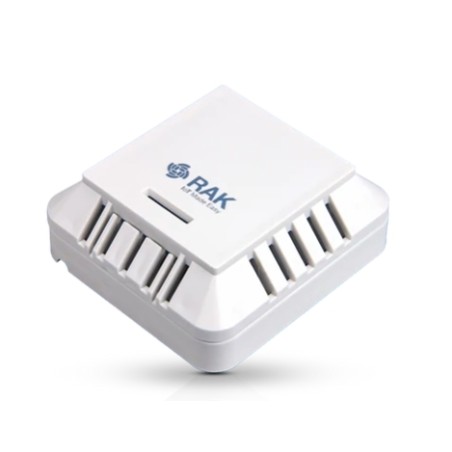

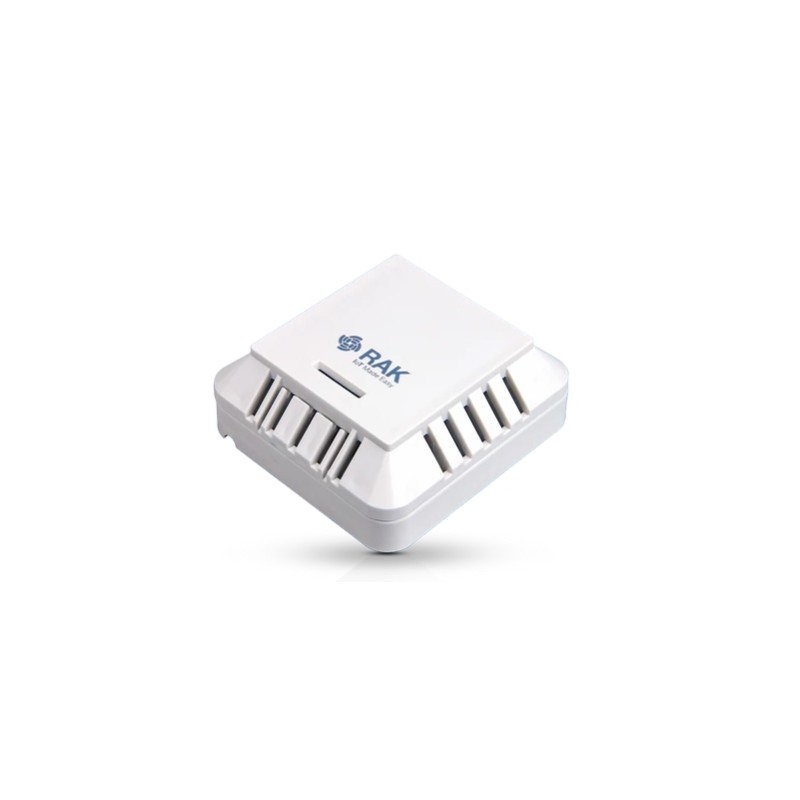

The WisBlock Kit 4 has a robust housing that allows it to easily withstand the elements.

Characteristics

• RAK5005-O

  • Simple plug'n'play slots for WisBlock Core MCU, WisBlock Sensor and other WisBlock modules
  • Small form factor
  • Supports 3 different power sources
  • Optimized for low power applications
  • I2C, UART, GPIO's and analog input accessible with solder contacts
  • 2 user-definable LEDs
  • Reset button
  • USB debug port
  • 1 slot for WisBlock Core MCU
  • 4 slots for WisBlock Sensor sensor modules
  • 1 slot for additional WisBlock expansion modules

• RAK4631

  • LoRaWan® 1.0.2 protocol stack (supports Class A & C)
  • Bluetooth Low Energy 5.0 protocol stack
  • Nordics nRF52840
  • Wide range of connections
  • Semtech SX1262

• RAK1906

  • Using the Bosch BME680 environmental sensor
  • Low energy consumption
  • Small form factor
  • Temperature range: -40°C to +85°C
  • Humidity range: 0% to 100%
  • Pressure range: 300 to 1100 hPa
  • Response time of the gas sensor < 1s
  • Gas sensor with direct output of IAQ: Air Quality Index

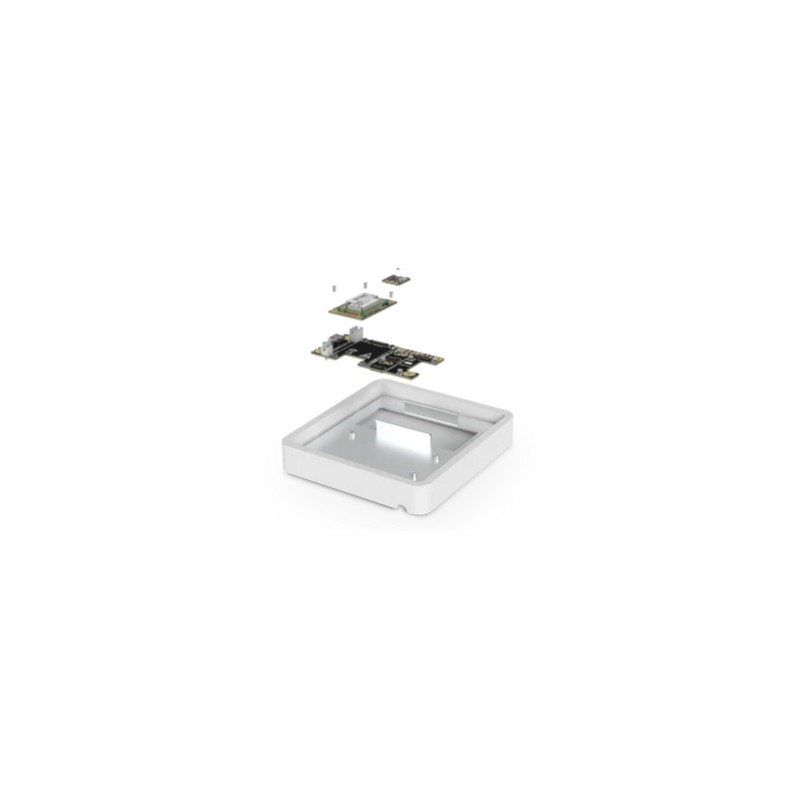

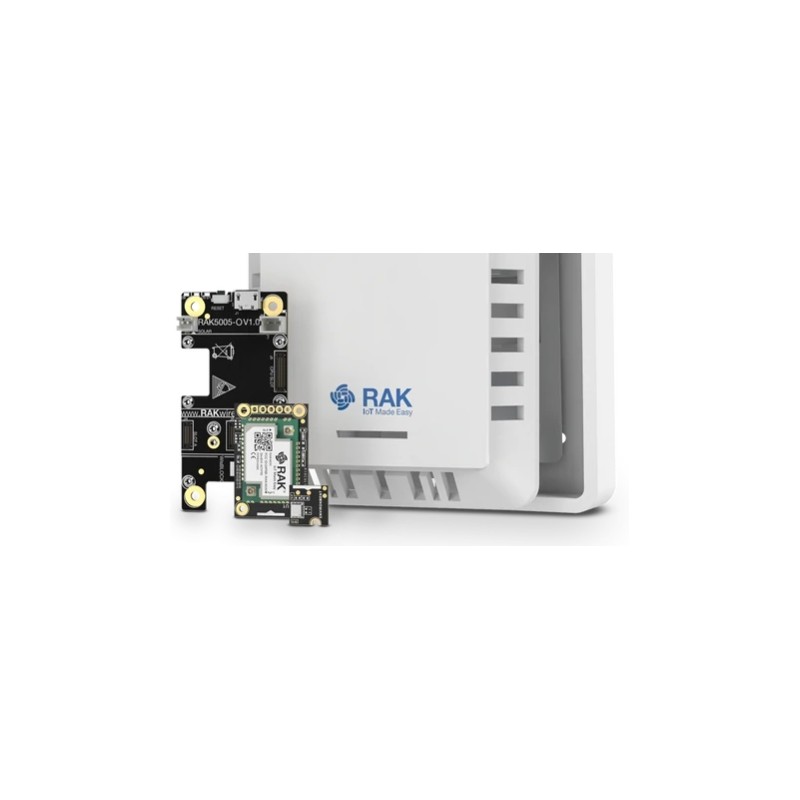

scope of delivery

• RAK5005-O
• RAK4631
• RAK1906
• RAKBox-B3
• LoRa antenna
• BLE antenna

Technical data

RAK5005-O WisBlock Base Board Datasheet | RAKwireless Documentation Center

RAK4631 WisBlock LPWAN Module Datasheet | RAKwireless Documentation Center

RAK1906 WisBlock Environmental Sensor Datasheet | RAKwireless Documentation Center
