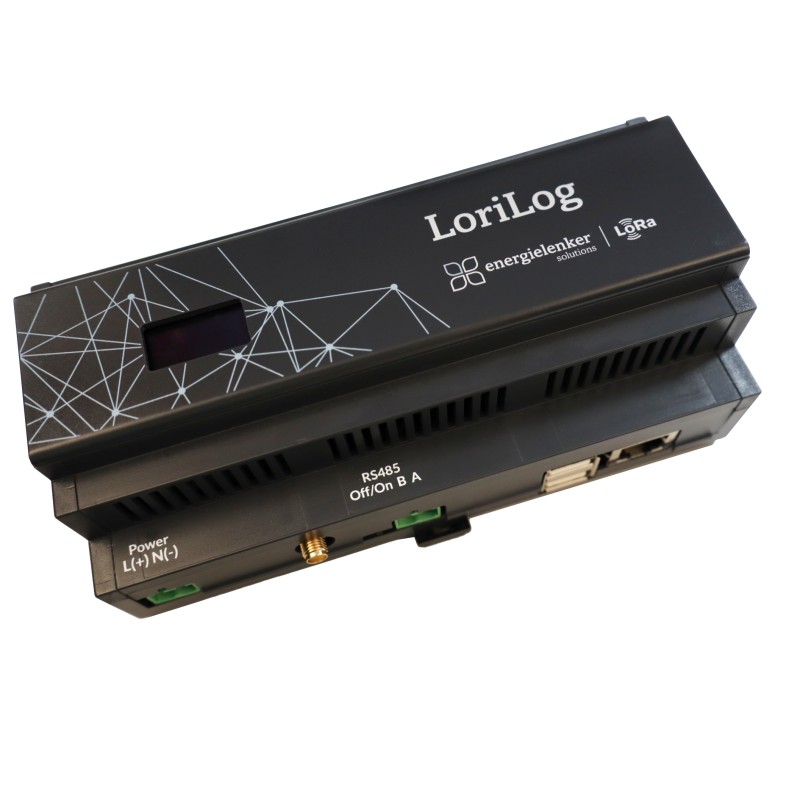

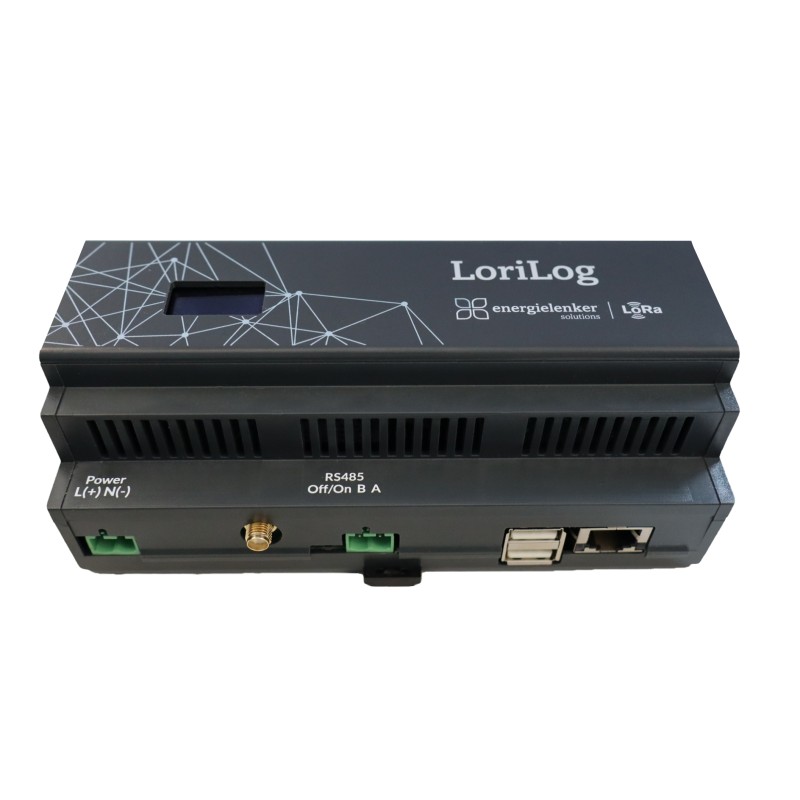

LoriLog LoRaWAN data logger
LoriLog LoRaWAN data logger
The LoRaWAN data logger LoriLog acts as a converter for various protocols and is therefore the ideal hardware for integrating a variety of devices such as electricity meters, water meters or CO2 detectors into your own LoRaWAN network.
No internet connection is required for this and data is forwarded via:
- E-mail (CSV file format)
- USB (CSV file format)
- FTP (CSV file format)
- Modbus TCP
- Others in implementation, then available via update
- MQTT
- BACnet
- Modbus RTU
Technical data:
- Housing
- Width: 160mm (9TE)
- Height: 90mm
- Depth: 58mm
- LoRaWAN
- LoRaWAN protocol: 1.0.2
- Transmission power: 25dBm
- Receive sensitivity: -139dBm
- Computing unit
- 2GB DDR4 RAM
- 16GB eMMC memory
- ARM Cortex-A72 1500 MHz
- External connections
- SMA socket for LoRaWAN
- 1 x Fast Ethernet
- 2 x USB 3.0
- RS485
- Power supply: 24 VDC max. 350mA
- Antenna
- Frequency range: 700-960MhzGain (dBi): 7dBi
- Cable type: RG174
- Cable length: 1m
- Connection: SMA plug
Scope of delivery:energielenker LoriLogLoRaWAN antenna
