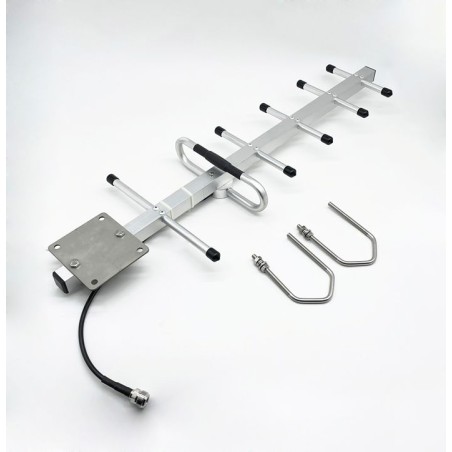

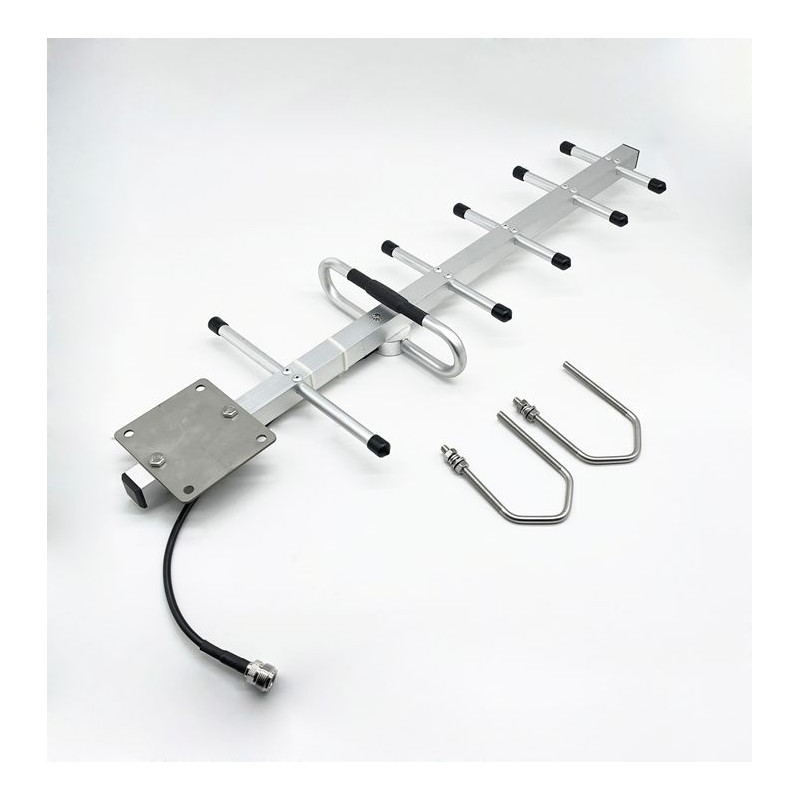

ALLNET Antenna 868MHz 14dbi Antenna (N-Female) YAGI ANT-868-14dbi-Yagi LoRA Helium IoT
ALLNET Antenna 868MHz 14dbi Antenna (N-Female) YAGI ANT-868-14dbi-Yagi LoRA Helium IoT
Highlights:
- 860~896MHz Yagi Antenna 14 Elements
- Gain: 14dbi (see table for more details)
- Beam angle: 33°/30° (see table for more details)
- Impedance: 50 Ohm
- VSWR: <=1.4
- Connection: N-Type Female (suitable connection cables can be found in the accessories)
- Dimensions: Length = 1297x202x55mm
- Wind speed: 200km/h
- Temperature: -45°C ~ +75°C
- Mounting: Mast mounting
- Package contents: Antenna and mounting accessories
- Ideal for LoRA / Helium Network / Helium Miner / IoT devices / 868MHz systems etc.
Yagi antennas are longitudinal antennas and use radiation-excited elements. Yagi antennas consist of a group of active and passive (parasitic) elements, which generate a common, strong directional pattern through mutual feedback. They often consist of just one fed element with a number of parasitic radiation-fed elements.
Robust construction High gain for excellent point-to-point transmission. Narrow beamwidth and high F/B ratio minimize interference from other systems
Technical Details:
Model | ANT-868-10dbi-Yagi | ANT-868-12.5dbi-Yagi | ANT-868-14dbi-Yagi |
Electrical Specification | Wide Band: 806-896MHz | ||
Polarization | Vertical Polarized / Horizontal Polarized | ||
MaxGain | 10dbi | 12.5dbi | 14dbi |
H Beamwidth (-3dB, V-Pol) | 73° ± 7° | 42° ± 5° | 33° ± 5° |
E Beamwidth | 55° ± 5° | 39° ± 3° | 30° ± 5° |
VSWR | <1.4 | ||
Nominal Impedance | 50 ohm | ||
F/B Ratio | >15dB | >17dB | >20dB |
MaxPower | 100watts | ||
Mechanical Specification | |||
Connector | N-Female | ||
Radome | Fiberglass, diameter 20mm | ||
Color | White/Grey | ||
dimension | 582 * 202 * 55mm | 941 * 202 * 55mm | 1297 * 202 * 55mm |
Weight incl. Mount Kit | 0.7kg | 0.9kg | 1.2kg |
Max wind load | 200km/h, 125mph | ||
Working Temperature Range | -45°C to +75°C | ||
Storage Temperature | -50°C to +75°C | ||

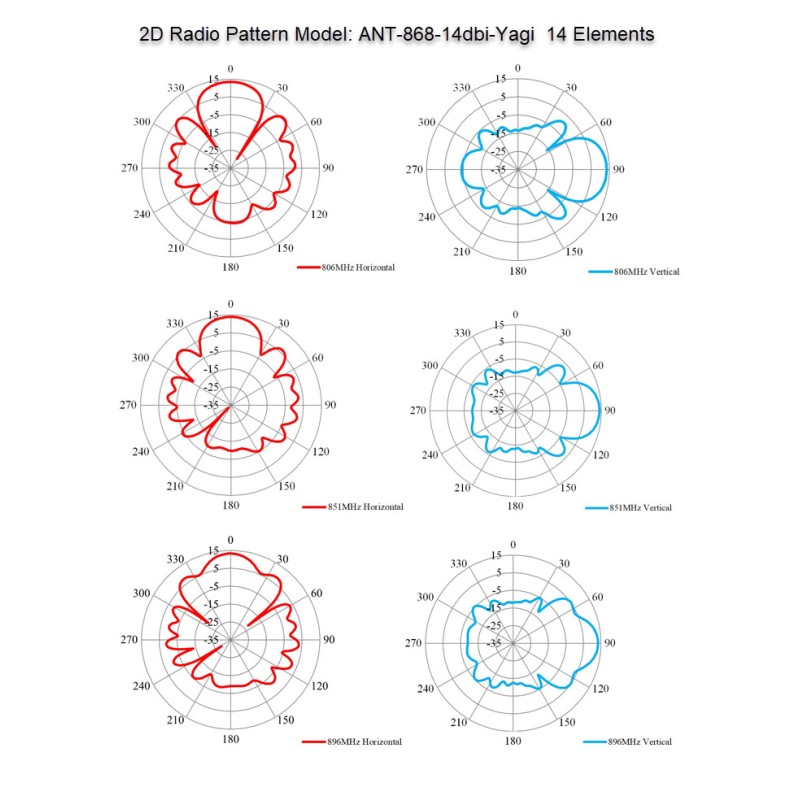

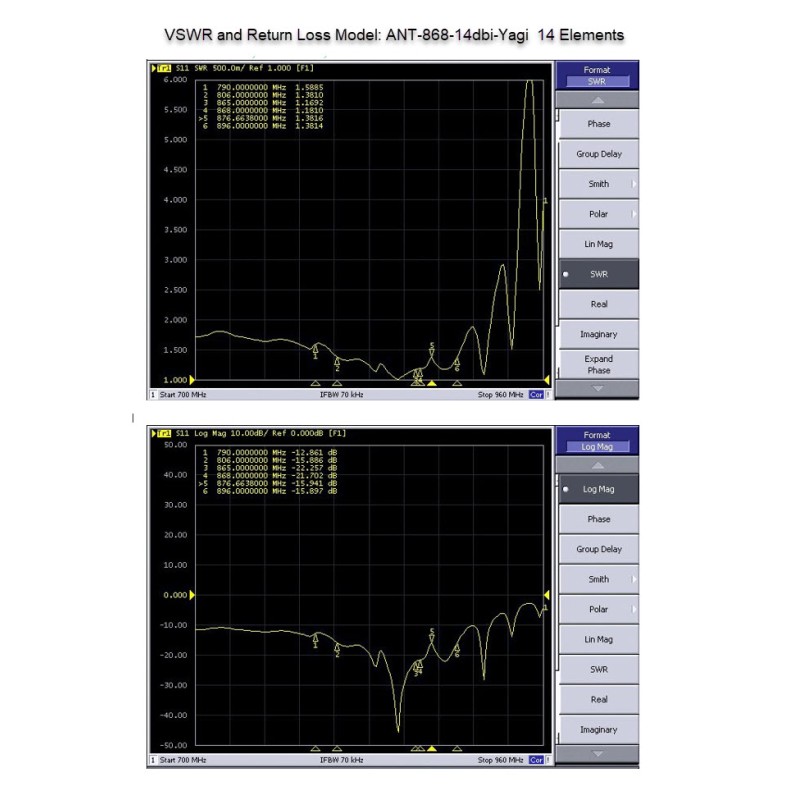

Antenna Test Data:

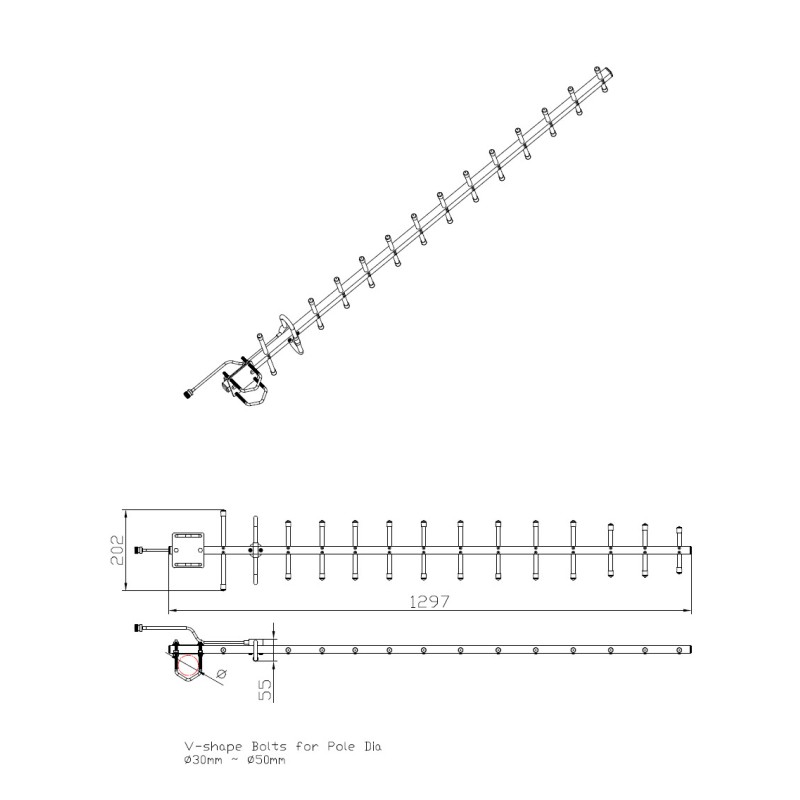

Mechanical Dimensions:
