Highlights:
- 860~880MHz Omnidirectional Antenna, 2 Array
- Gain: 5dbi (see datasheet for more details)
- Beam angle: H360 V32
- Impedance: 50 Ohm
- VSWR: <=1.3 @868MHz, Max 1.5
- Connection: N-Type Female (suitable connection cables can be found in the accessories)

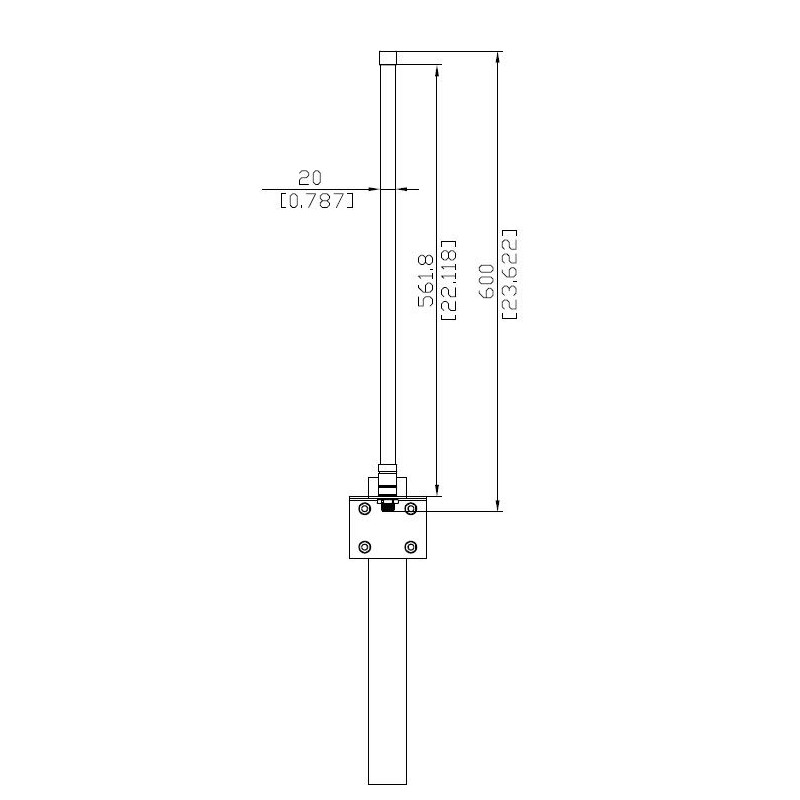

- Dimensions: Length = 600mm x Diameter 20mm
- Max. wind load: 180km/h
- Temperature: -40°C ~ +60°C

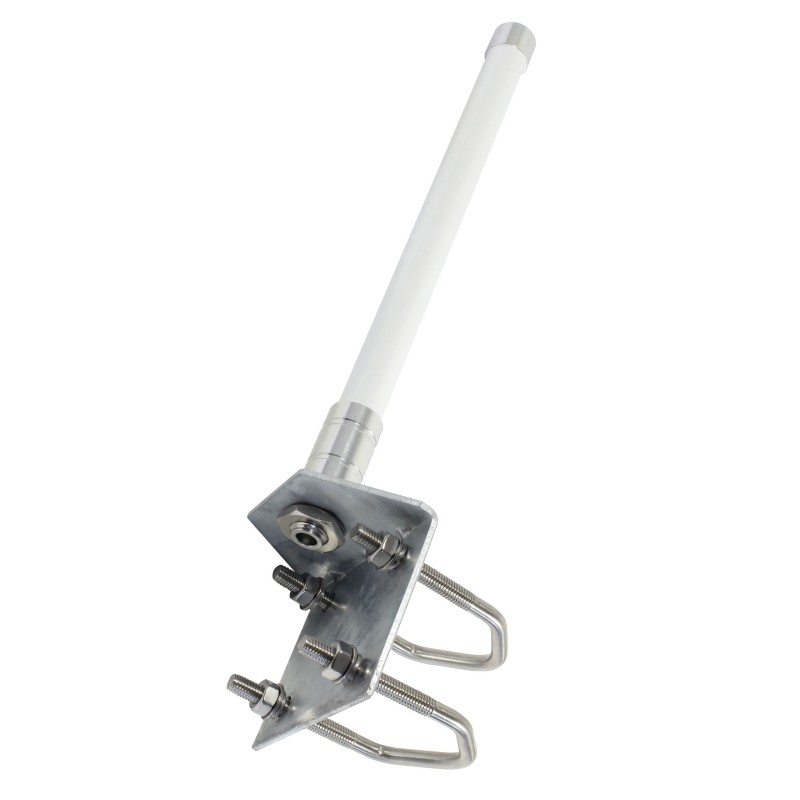

- Mounting: Wall mounting & mast mounting

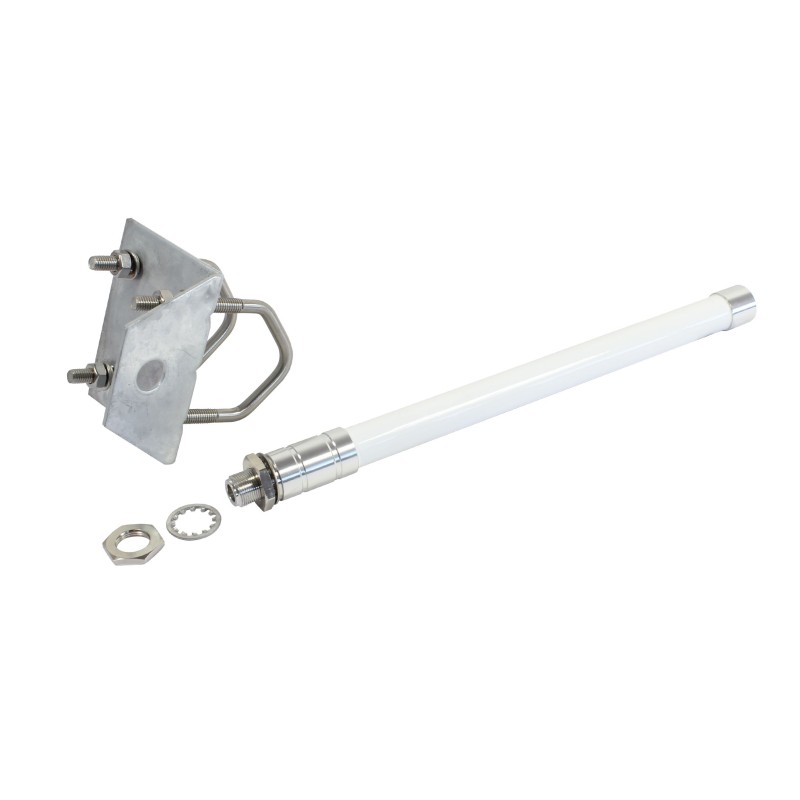

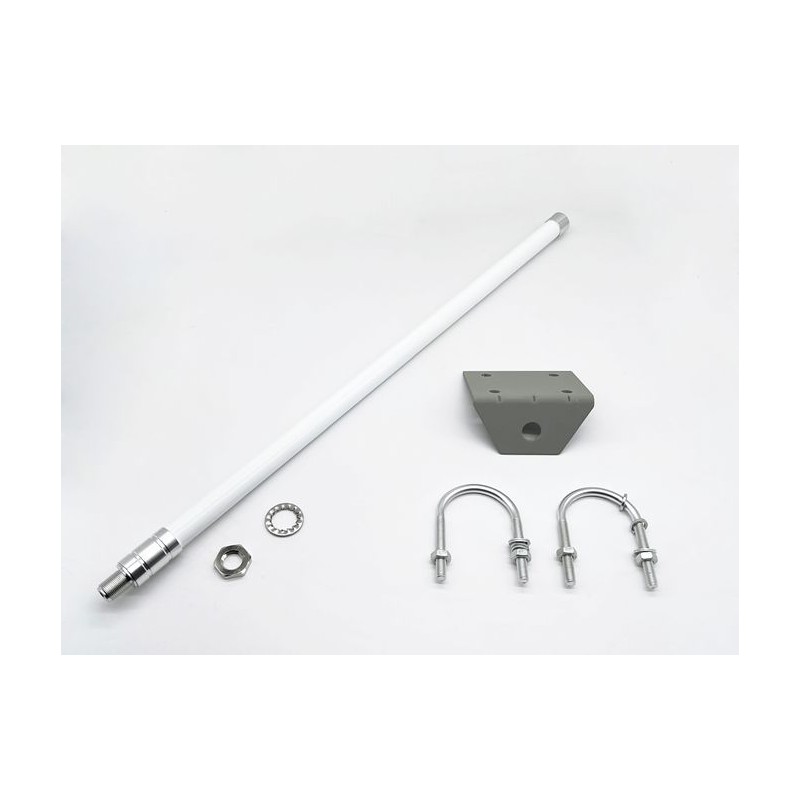

- Package contents: Antenna and mounting accessories
- Ideal for LoRA / Helium Network / Helium Miner/ IoT devices / 868MHz systems etc.
Technical Details:
Model | ANT-868-3dbi-OMNI | ANT-868-5dbi-OMNI, 2 Array | ANT-868-6dbi-OMNI, 3 Array | ANT-868-7.3dbi-OMNI, 7 Array |
Electrical Specification | Frequency: 868MHz, 860-880MHz | |||
Polarization | Vertical Polarized | |||
MaxGain | 3.5dbi | 5dbi | 6dbi | 7.3dbi |
H Beamwidth | 360deg / omni coverage | |||
E Beamwidth | 65deg | 32deg | 26deg | 20deg |
VSWR | typical: <1.3 @868MHz, Max 1.5 | |||
Nominal Impedance | 50 ohm | |||
MaxPower | 50 watts | |||
Mechanical Specification | ||||
Connector | N-Female, Long Neck | |||
Radome | Fiberglass, diameter 20mm | |||
Color | White/Grey | |||
Total Length with Connector | 314mm | 600mm | 800mm | 1000mm |
Weight incl. Mount Kit | 0.55kg | 0.65kg | 0.7kg | 0.8kg |
Working Temperature Range | -45°C to +75°C | |||
Max winload | 180km/h | |||
Storage Temperature | -50°C to +75°C | |||
Antenna Test Data:
3D Radio Patterns:
3D Radio Patterns:

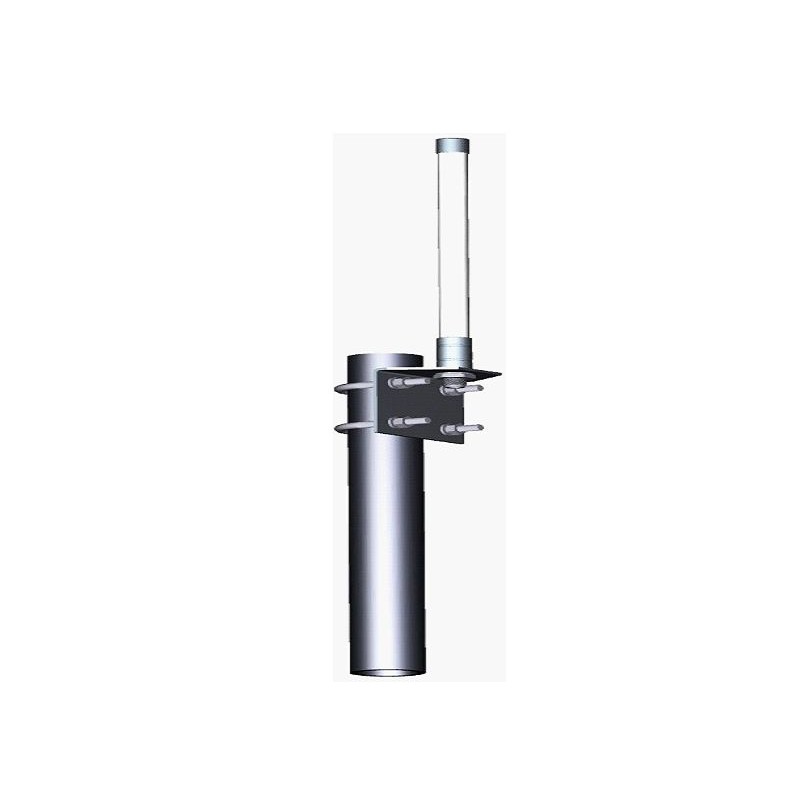

Installation:
