Infrared barrier detector - Compatible with Transmitter or DoorProtect Ajax - Wireless | 3 packets - Maximum range. Detection

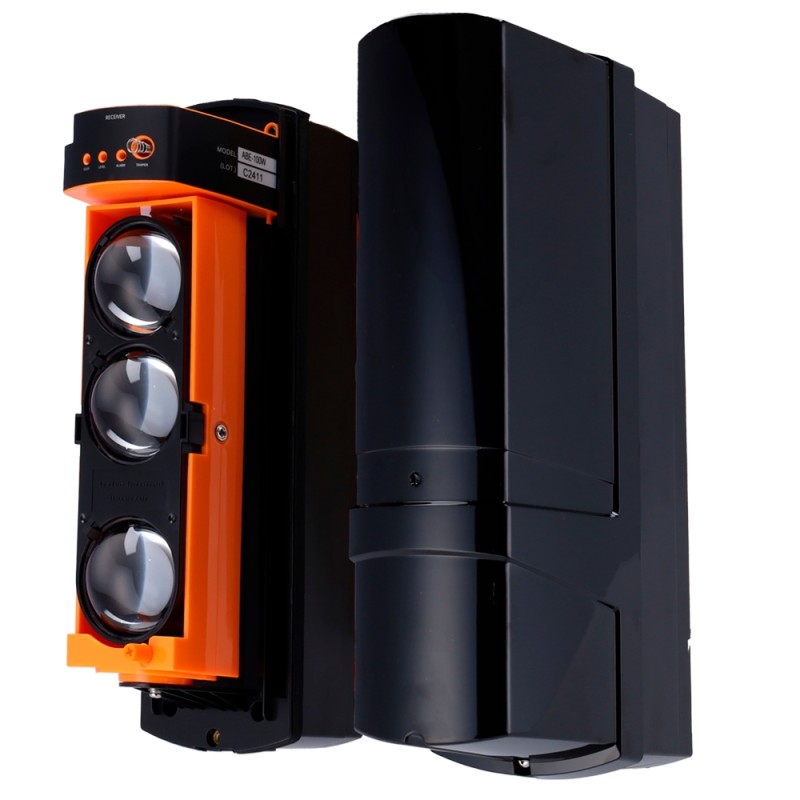

The ABE-100W is a three-beam infrared photoelectric sensor designed for perimeter security applications, providing accurate and reliable detection both indoors and outdoors. The maximum detection range is 300 metres indoors and 100 metres outdoors, adapting to different protection needs.

This wireless device is compatible with Ajax Transmitter or DoorProtect modules and can therefore be easily integrated into existing alarm systems. The lenses are adjustable horizontally ±90° and vertically ±10°, allowing for optimal alignment during installation. In addition, it has a DIP switch for programming and offers four operating frequencies, allowing flexible configuration to suit any environment.

The ABE-100W has double tamper protection (front and rear), which protects against unauthorised tampering and ensures the integrity of the system. Its robust and resistant design with IP65 certification makes it an ideal solution for perimeter protection in a wide range of applications.

• Infrared triple beam barrier, outdoor area
• Wireless
• Maximum transmitter/receiver detection 300 m (indoor) and 100 m (outdoor)
• Triple lens, adjustable
• H: ±90º / V: ±10º
• DIP switch for programming
• 4 operating frequencies
• Double tamper-proof shutter (front and rear)
• Room compatible with Ajax Transmitter or Ajax DoorProtect - Battery operated
