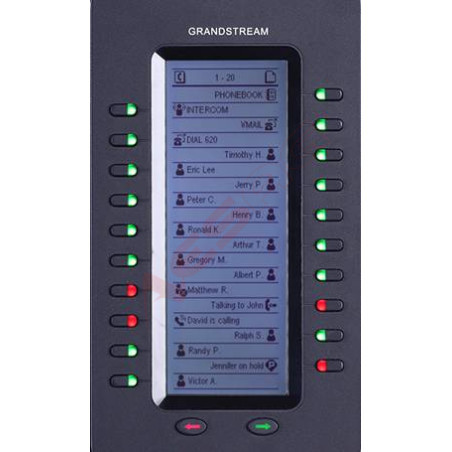

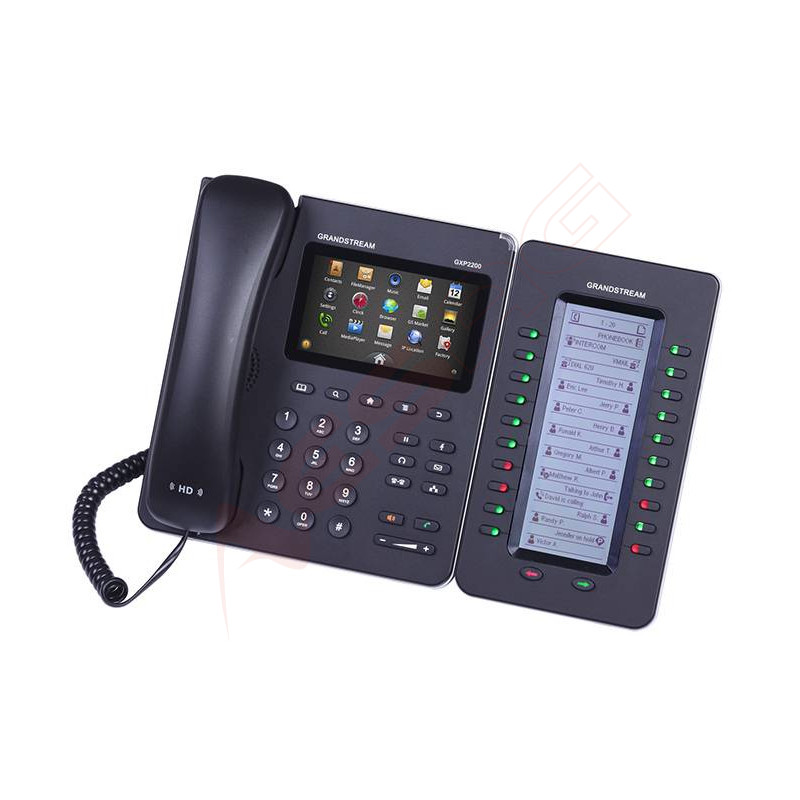

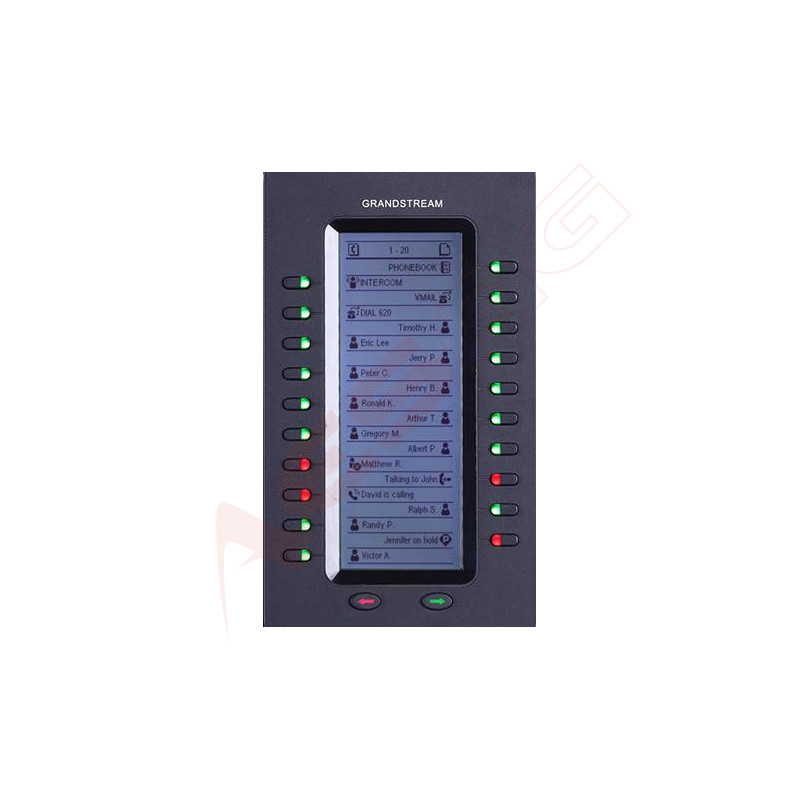

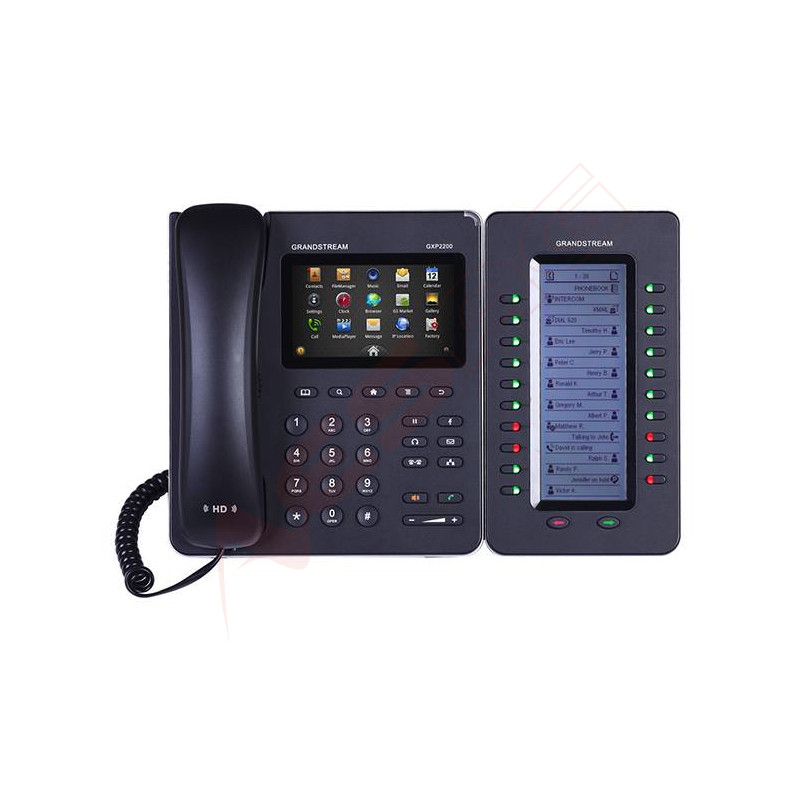

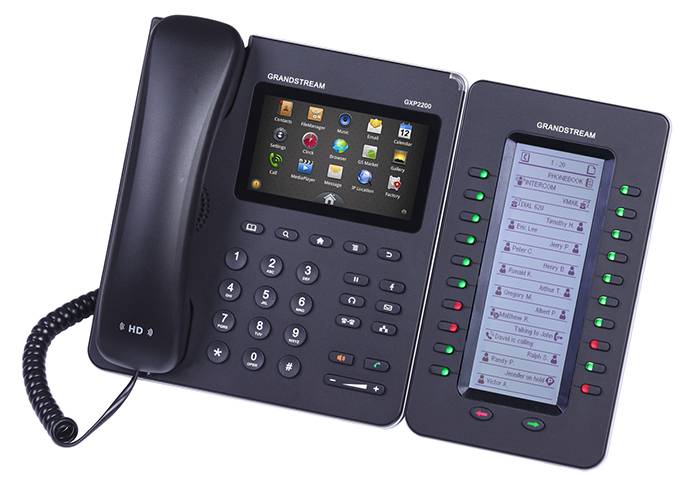

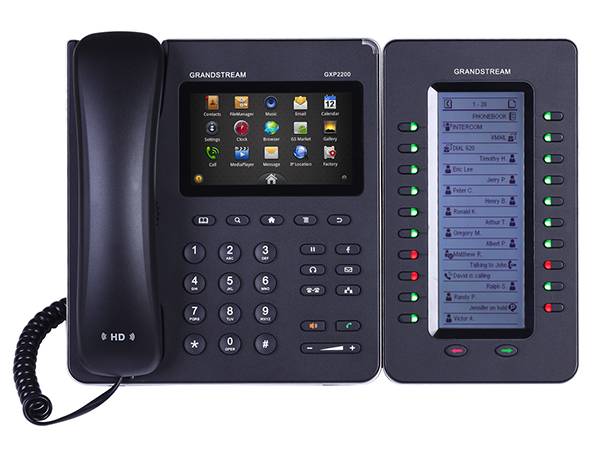

Grandstream GXP2200EXT - LCD expansion module
Grandstream GXP2200EXT - LCD expansion module
The GXP2200EXT is the expansion module that can be added to the GXP2140, GXP2200 and GXV3240 enterprise IP phones. This module includes 20 expansion keys (BLF keys) and two arrow keys for scrolling between levels, making a total of 40 BLF functions available. Cascade up to 4 modules for a total of 160 expansions.
This expansion module supports traditional calling functions on any programmable key, including BLA (bridged line appearance) / SCA (shared call appearance), BLF (busy lamp field, standard or event list), call park / pick up, speed dial, presence, intercom and conference / transfer / forward.
The GXP2200EXT extension module is the ideal solution for people with very high call volumes or for the operator's desk. With the GXP2200EXT extension modules, you always have the availability of employees and colleagues in view.

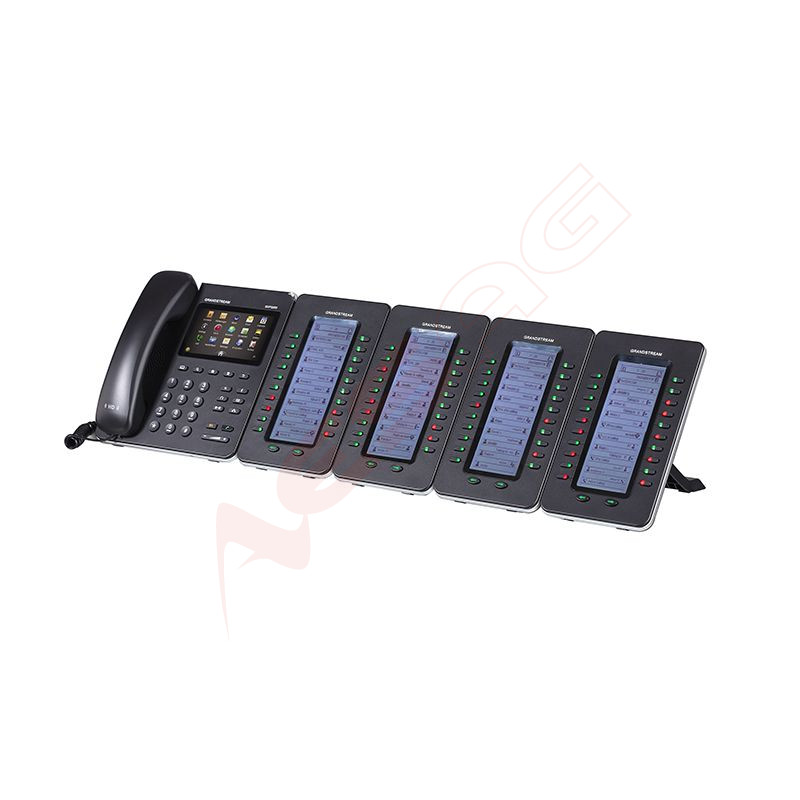

- Cascading of up to 4 modules for up to 160 programmable keys
- Large 128x384 pixel graphic LCD display
| cables | 20 (up to 40 when using both levels) 2 arrow keys to scroll through the levels, or up to 160 with 4 cascaded modules) |
| Compatible Grandstream IP Phones | GXP2200, GXP2140, GXV3240 |
| Supported features | Local feature-rich GUI with animation driven by host GXP2200 phone; multi-line / line keys |
| Power supply | The expansion modules are supplied by the respective telephone |
| Firmware upgrades | Upgrades are performed by the respective phone |
| Dimensions (LxWxH) | 206mm x 117mm x 32mm |
| Weight | .38kg |
| temperature | 0 ~ 40 ° C (32 ~ 104 ° F) |
| humidity | 10% -90% non-condensing |
| conformity | FCC / CE / C-Tick |
