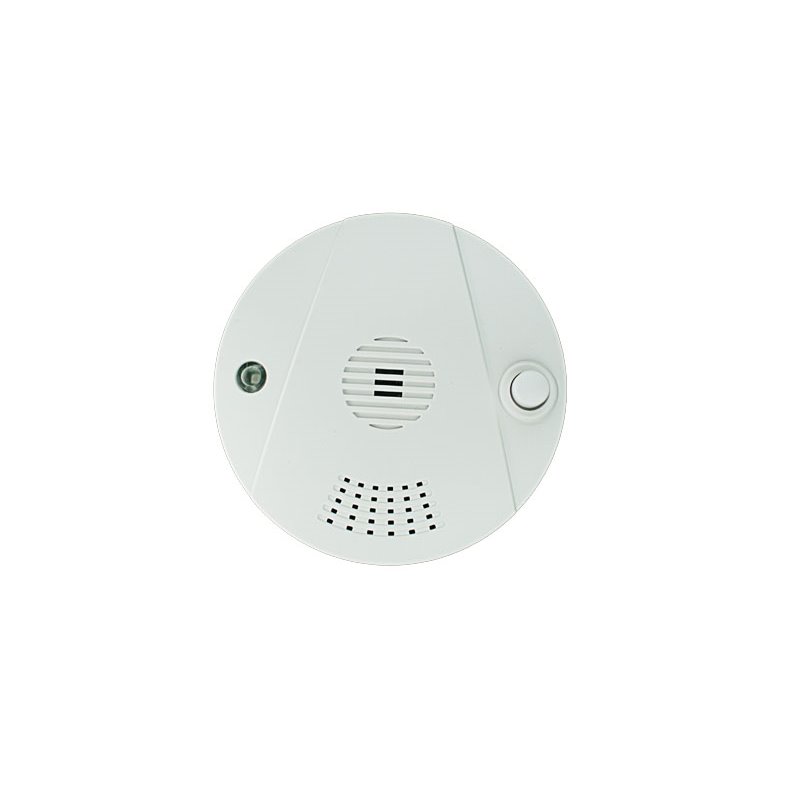

LUPUS NB-IoT - Mobile radio heat detector (GSM)

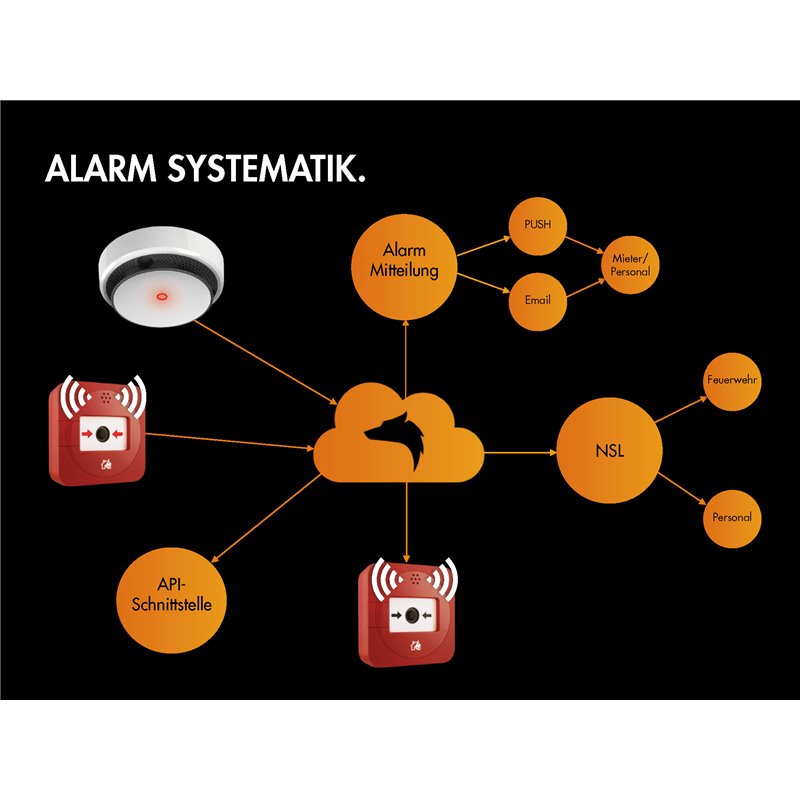

The new LUPUS mobile heat detector detects temperature rises particularly early - at a temperature of 57 °C or a rapid rise of more than 8.3 °C/minute. The alarm is immediately forwarded to the LUPUS Cloud via the integrated narrowband IoT module. Thanks to 95 dB alarm triggering at a distance of 1 metre, audible warnings are also guaranteed. The permanently installed SIM card ensures uncomplicated commissioning - without a gateway or WLAN. The battery lasts up to 6 years. Ideal for sensitive or difficult-to-access environments where a fire must be detected early due to a rise in temperature.

You don't have to buy a SIM card or ABO. Everything is included for 10 years. The device works in Switzerland, Germany, Austria, Italy, etc.

Product features:

• Always available: Mobile management and remote access - 365 days a year
• Central overview of all heat detectors per property or unit
• Immediate alarm if the temperature is exceeded or rises rapidly
• Integration with Telekom's Narrowband IoT network and the LUPUS Cloud
• Real-time transmission of alarms, temperature curves and device status
• Designed and developed in Germany, assembled in Europe

Technical specifications:

• Dimensions:? 105 x 42 mm
• Weight: approx. 152 grams
• Installation location: Indoors, ceiling
• Mounting options: Screw fixing
• Operating temperatures: -10°C to +50°C
• Humidity: Maximum 95%
• SIM card: eSIM MMF2
• NB-IoT module: Quectel BC 660K
• Radio frequency: LTE Cat. M1 / LTE Cat. NB2 / LTE Cat. NB1
• NB-IoT data connection for: 10 years
• Encryption: LTE end-to-end + TLS
• Status transmission to cloud: Every 24 hours
• Power supply: 3 x AA alkaline battery
• Battery life: approx. 6 years
• Siren volume: 95 dB at a distance of one metre

Scope of delivery:

• 1x LUPUS 14013 Mobile Heat Detector
• 1x battery
• 1x screws and wall plugs
